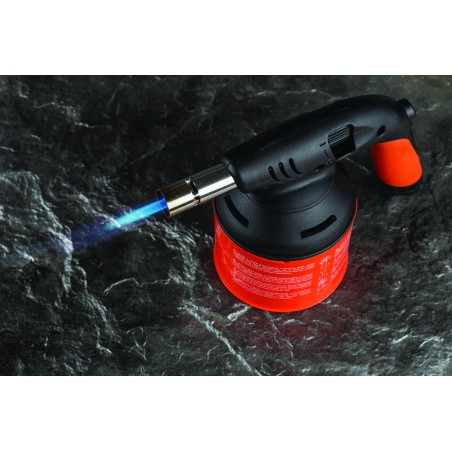

copy of TORNADO KEMPER cartridge welder

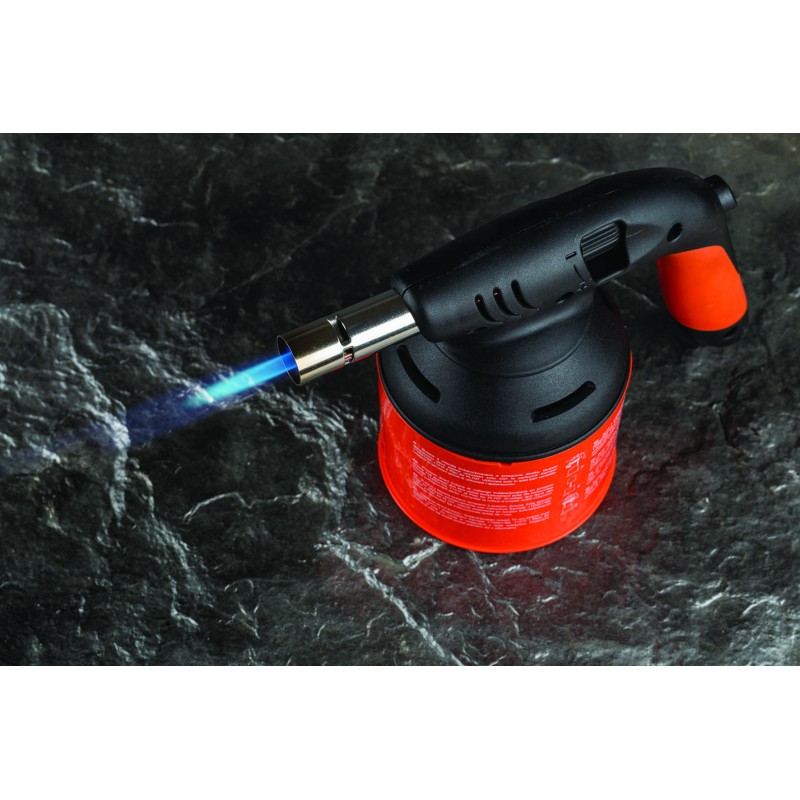

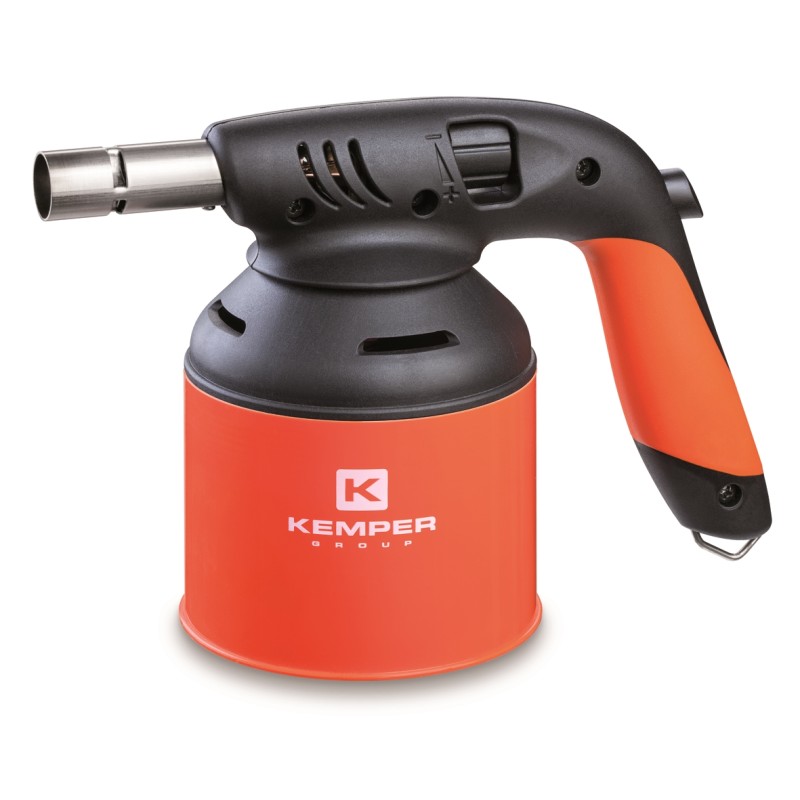

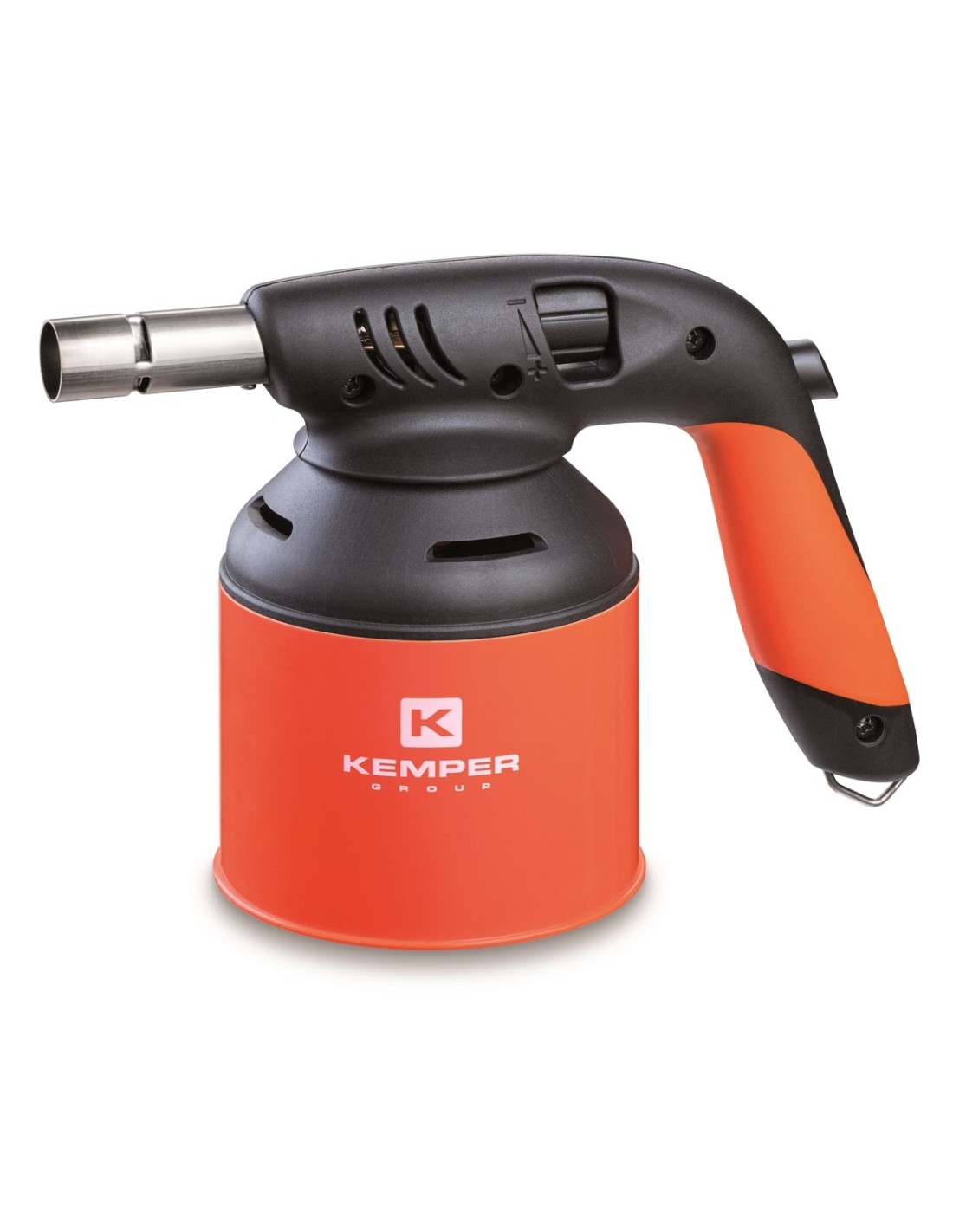

TORNADO KEMPER cartridge welder

Color Blue

Item Dimensions: 26 x 15 x 11 cm - ( Weight: 106 g )

Consumption 118 g/h - 1,540 kw

Injector Ø 0.25 mm

Uses 190 gr perforated cartridges European standard EN417/2012 (not supplied)

Base equipped with patented anti-cartridge release safety system.

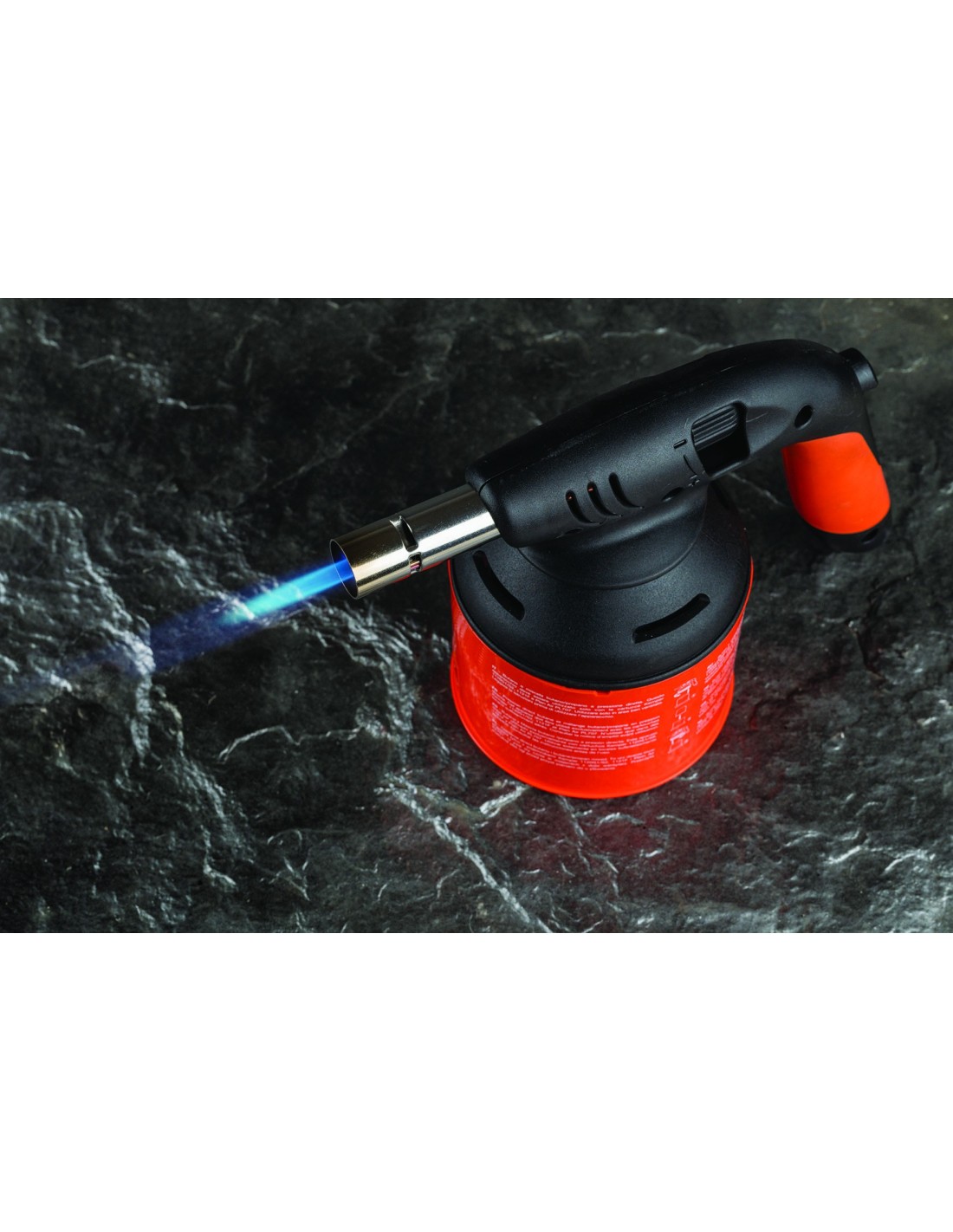

Rubberized handle and professional pointed flame.

Piezo ignition.

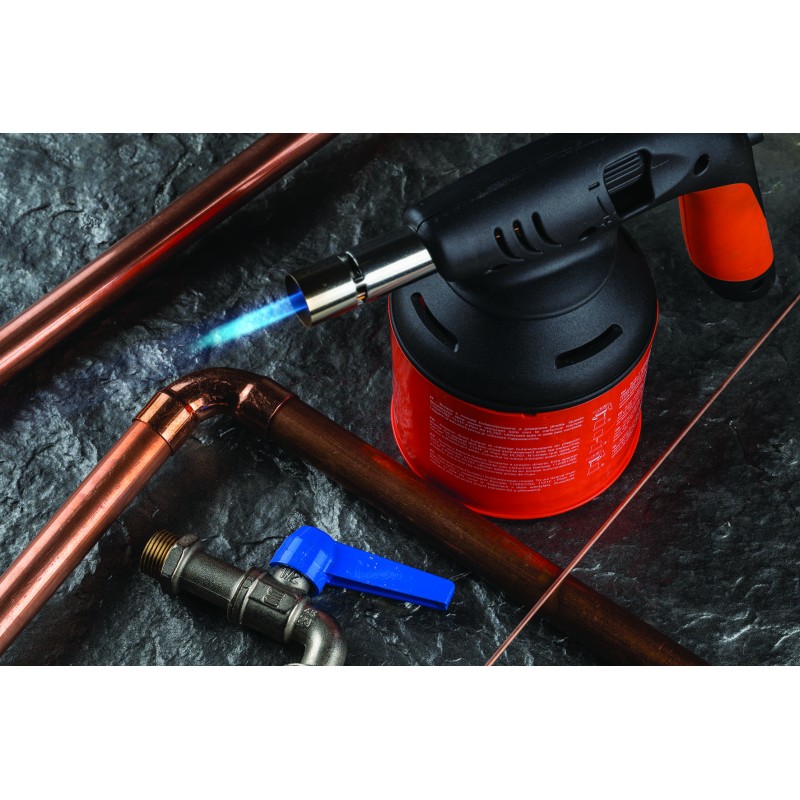

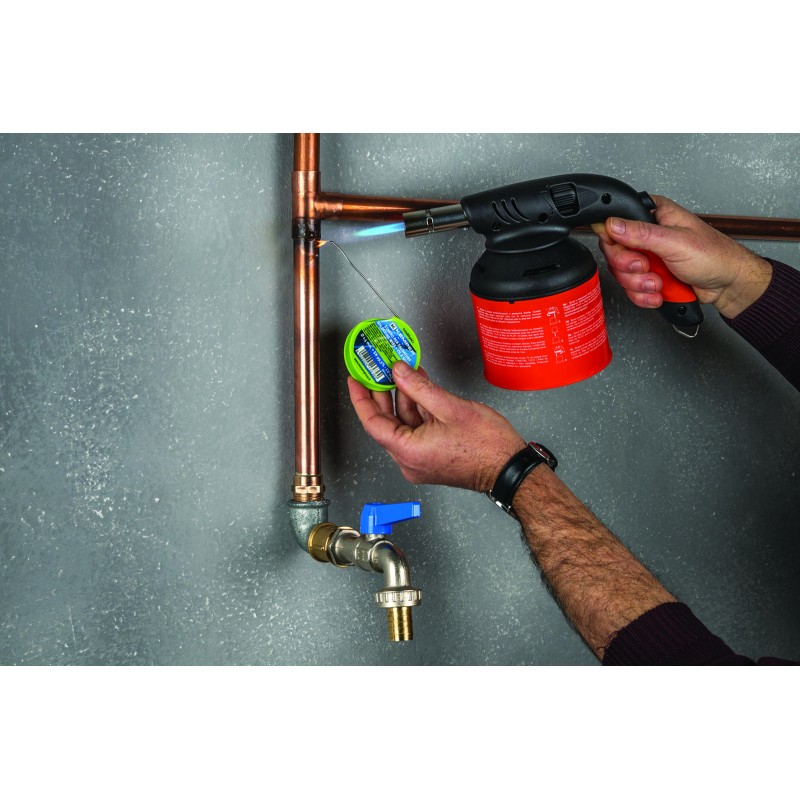

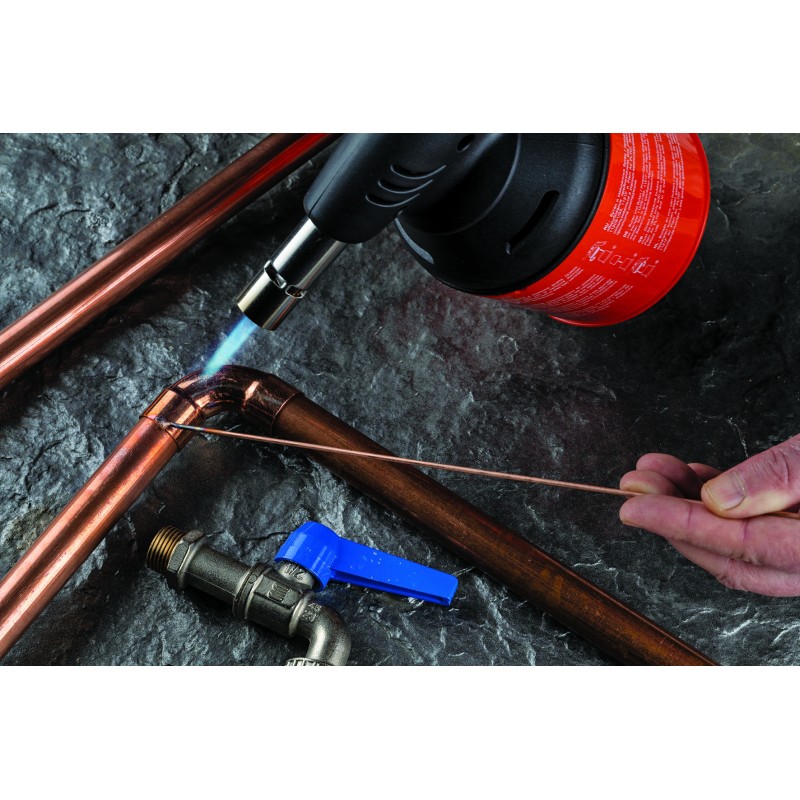

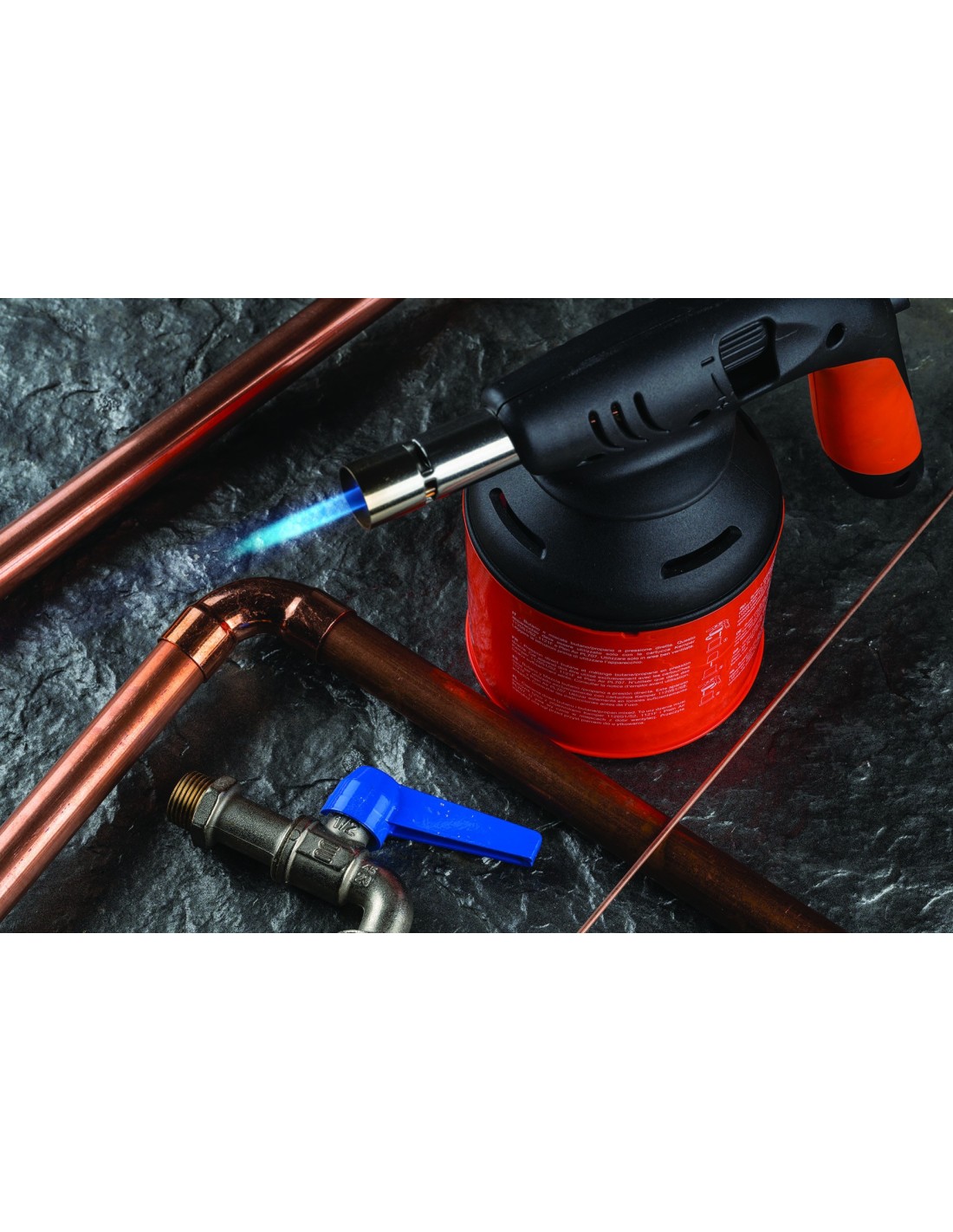

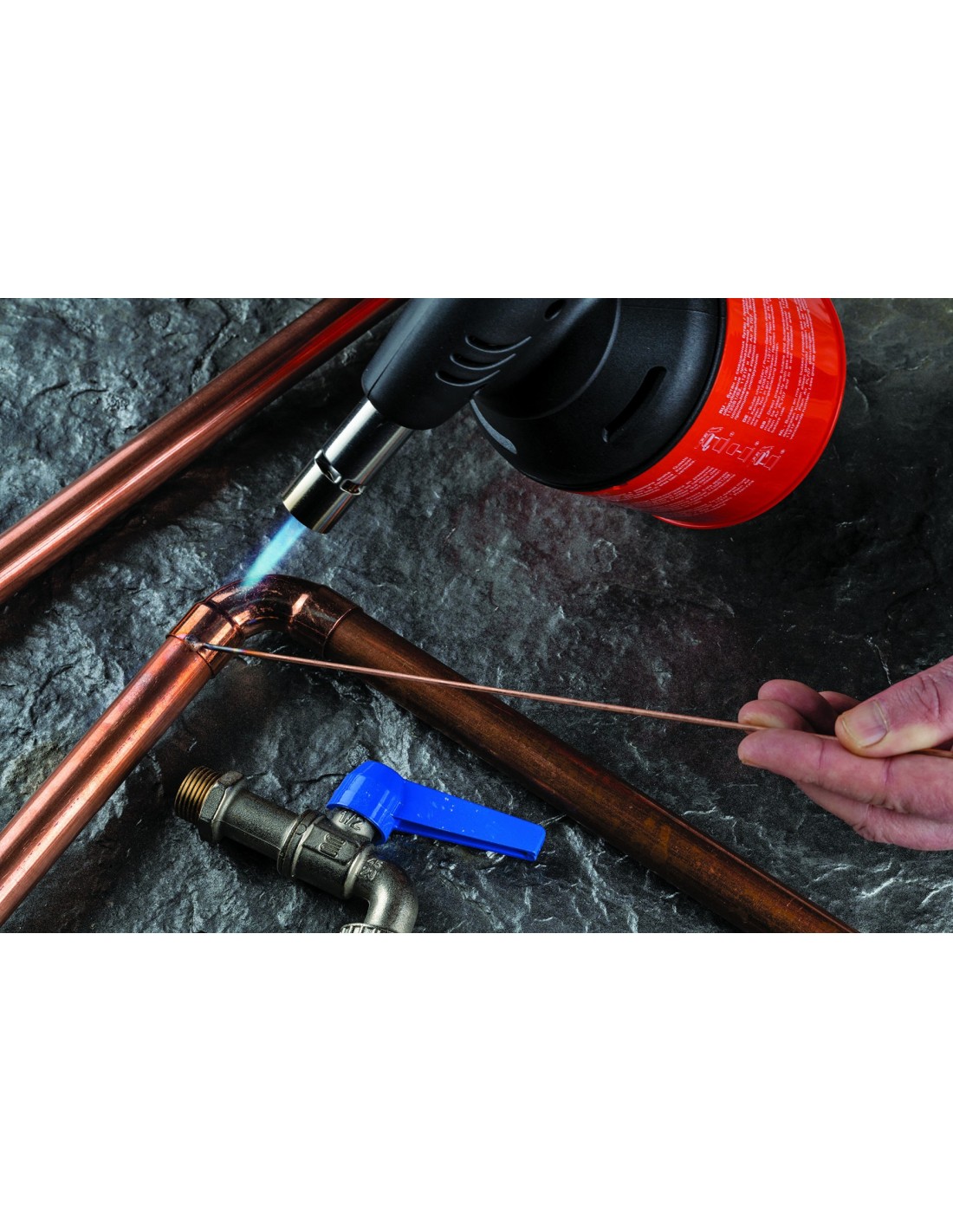

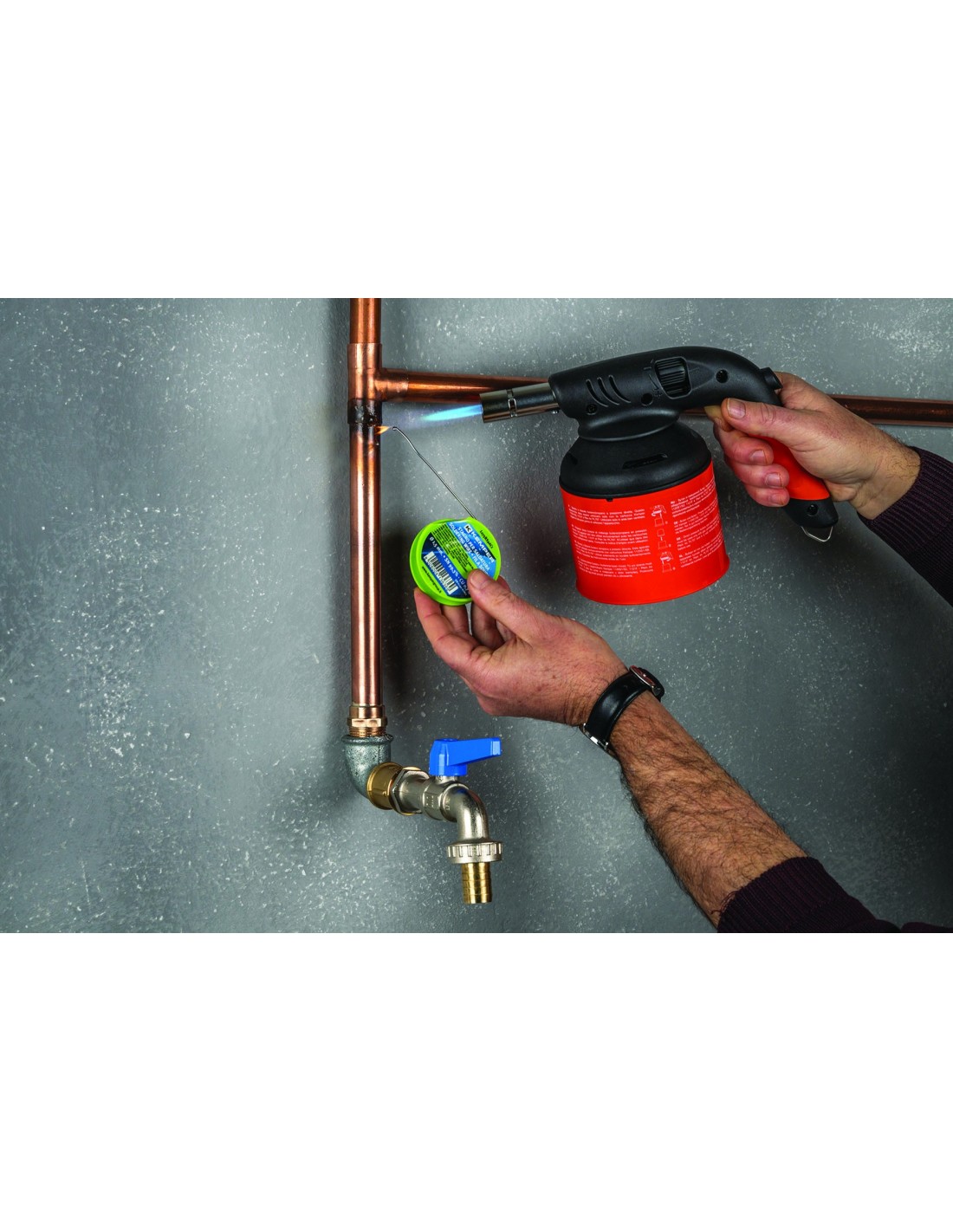

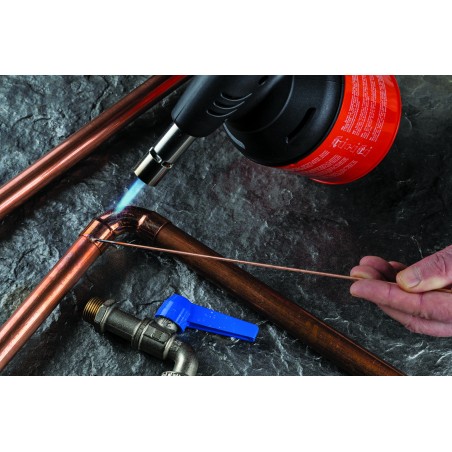

Apparatus for brazing, tin, aluminum and silver welding, forging, metal bending (bars, sheets, pipes), paint stripping, thawing.

The appliance does not require preheating; it must operate in a horizontal position or with a maximum inclination of 10/20° to avoid a dangerous elongation of the flame caused by the liquid phase of the cartridge fuel.

Cartridge assembly (in a ventilated location)

1. Hand wheel of the dispensing tap in the closed position (towards - sign)
2. Separate the base from the top by unscrewing it
3. remove the cartridge retainer spring
4. Insert the cartridge into the base and lock it with the spring
5. Make sure the rubber seal is intact
6. Screw the base to the upper part as far as it will go, keeping it in a horizontal position
7. Partially open the tap towards the + sign and press the piezo button to ignite the gas. Keep the welding lamp with the nozzle away from people, animals and things.

Once mounted, the cartridge is perforated and therefore does not need to be disassembled until it is depleted.
