Fuse box, 1 input - 6 outputs, 12-24V - 5-30A
Fuse box, 1 input - 6 outputs, 12-24V - 5-30A
Fuse box, 1 input - 6 outputs, 12-24V - 5-30A
Fuse box, 1 input - 6 outputs, 12-24V - 5-30A
Fuse box, 1 input - 6 outputs, 12-24V - 5-30A
Fuse box, 1 input - 6 outputs, 12-24V - 5-30A
Fuse box, 1 input - 6 outputs, 12-24V - 5-30A
Fuse box, 1 input - 6 outputs, 12-24V - 5-30A

Fuse box, 1 input - 6 outputs, 12-24V - 5-30A

Rif: 14697
5 days of preparation excluding made to order items
€14.50
VAT included
14.5
5 days of preparation excluding made to order items

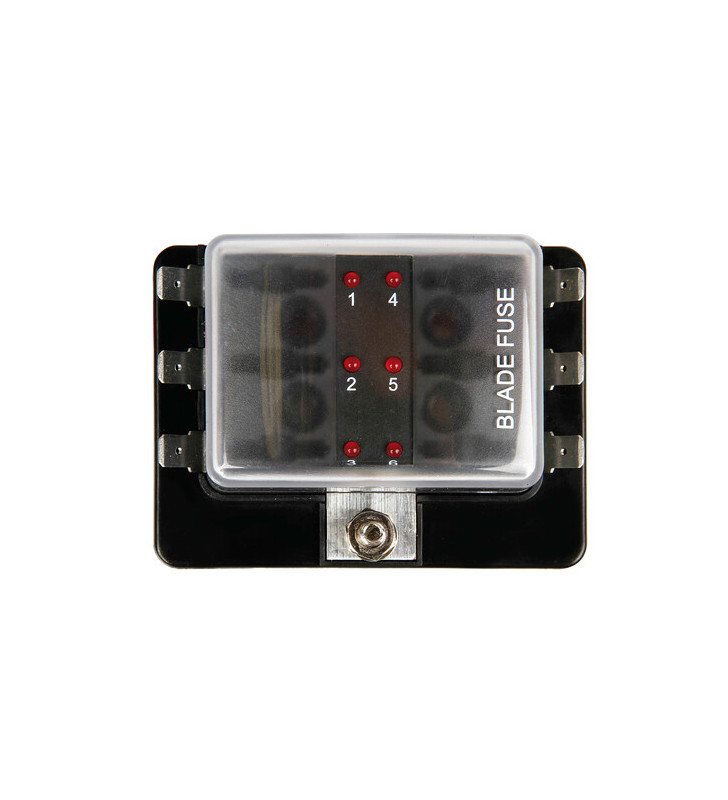

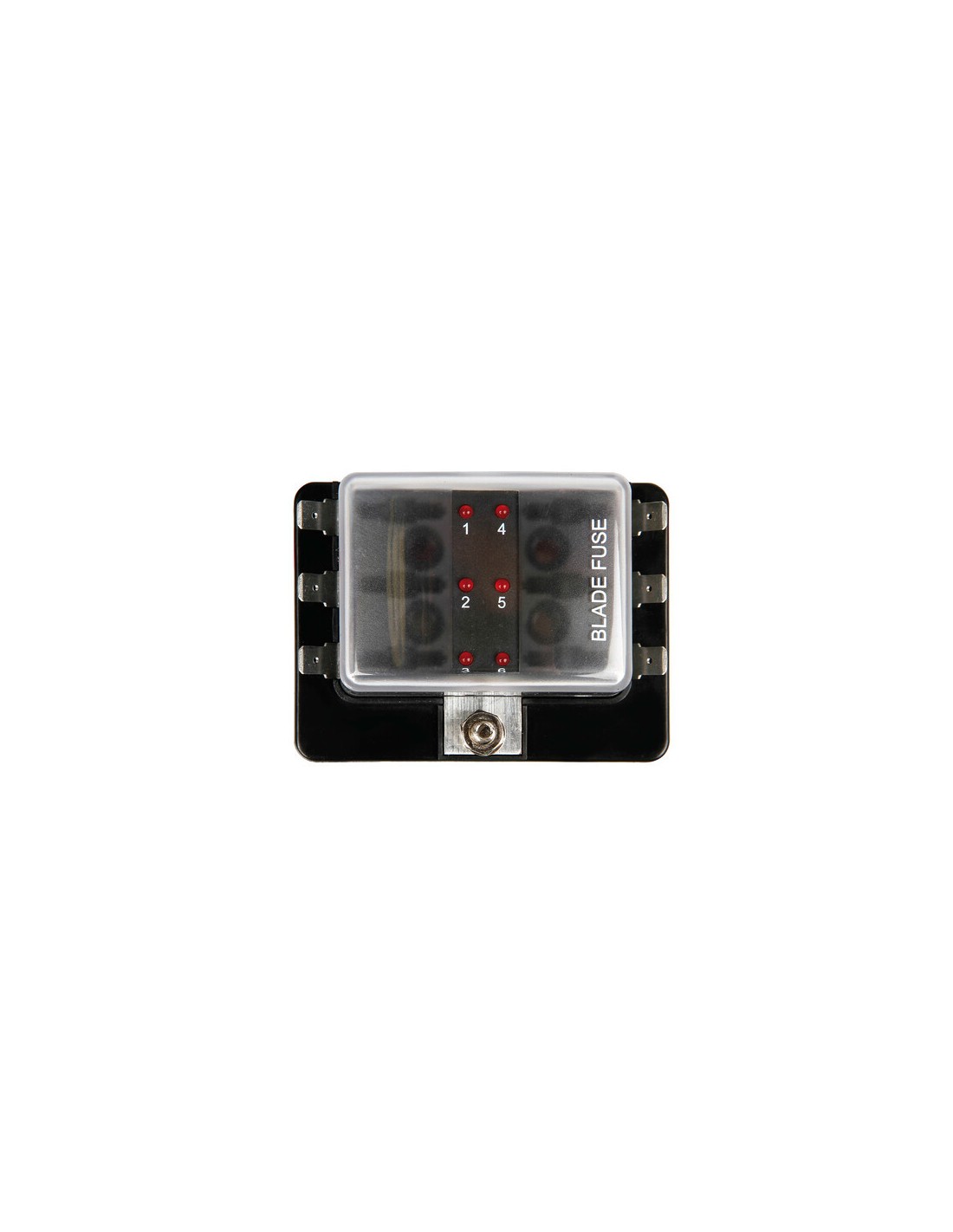

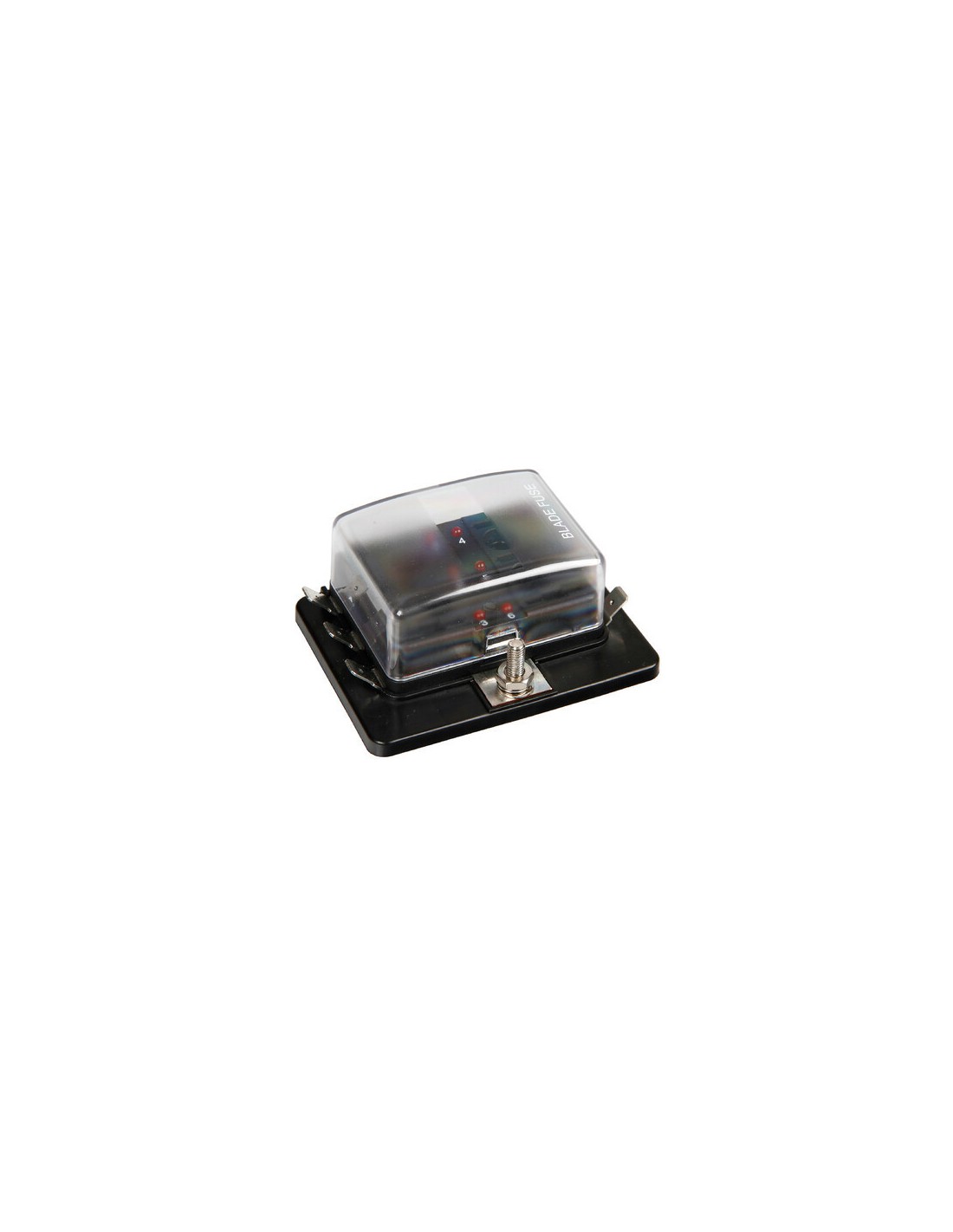

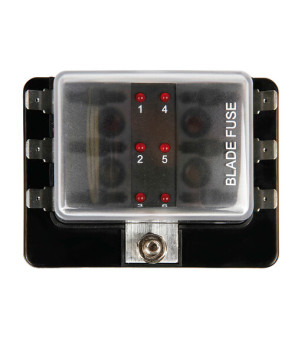

Standard blade fuse box, 1 input - 6 outputs, 12 / 24V 5 / 30A each. with LED alarm lights

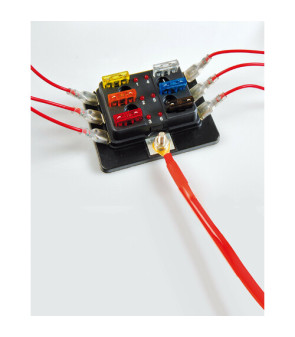

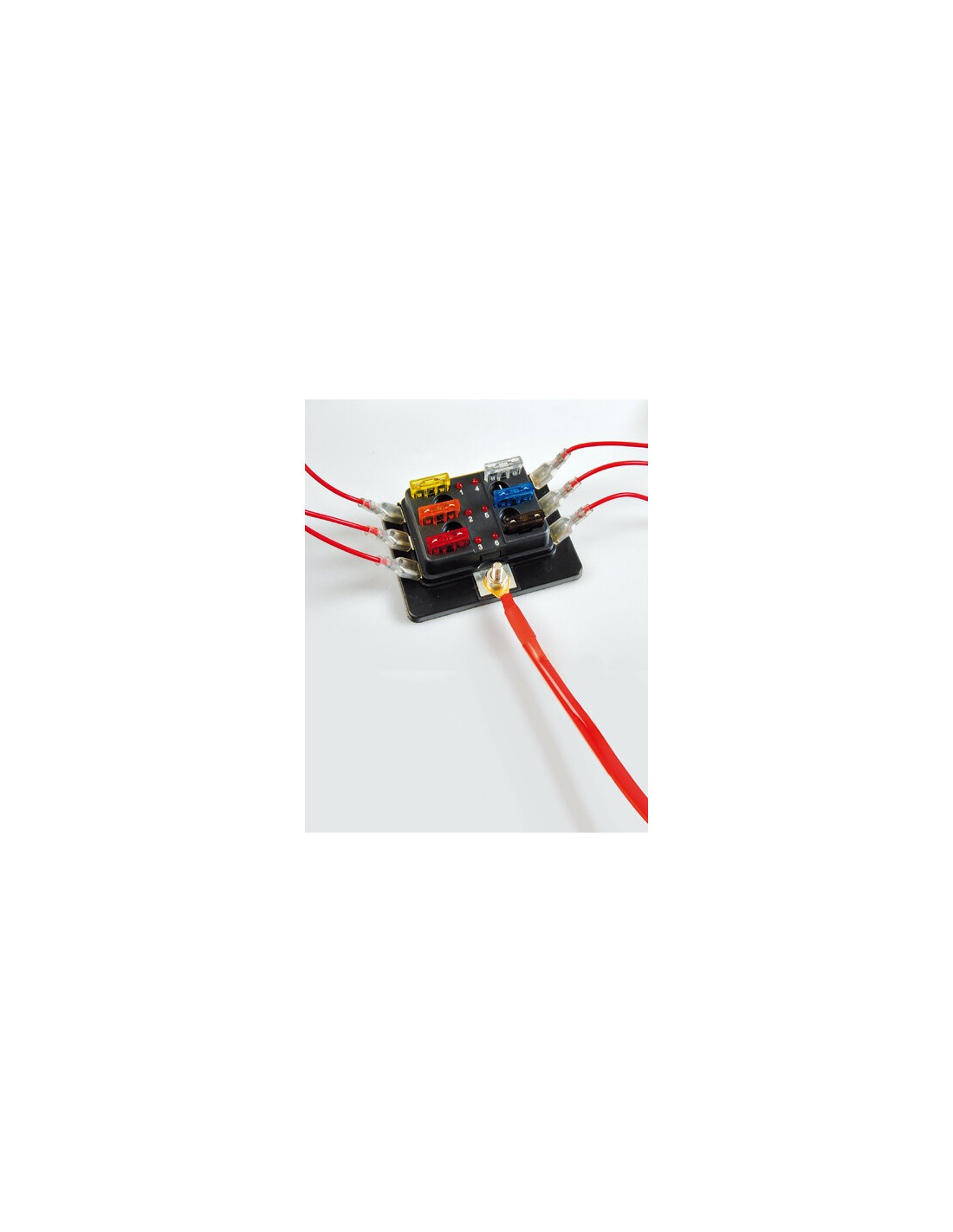

Allows you to simultaneously connect 6 appliances to a single power supply.

The 6 numbered LED lights indicate if the corresponding fuse is broken.

Suitable for standard 5 to 30A (ATO / ATC) blade fuses. Not included.

30A maximum output per circuit.

Capacity - Capacity max A. 100

Volt Rating: 32V DC (Max.)

Material: PA66 Black base + transparent PC cover

PATENTED

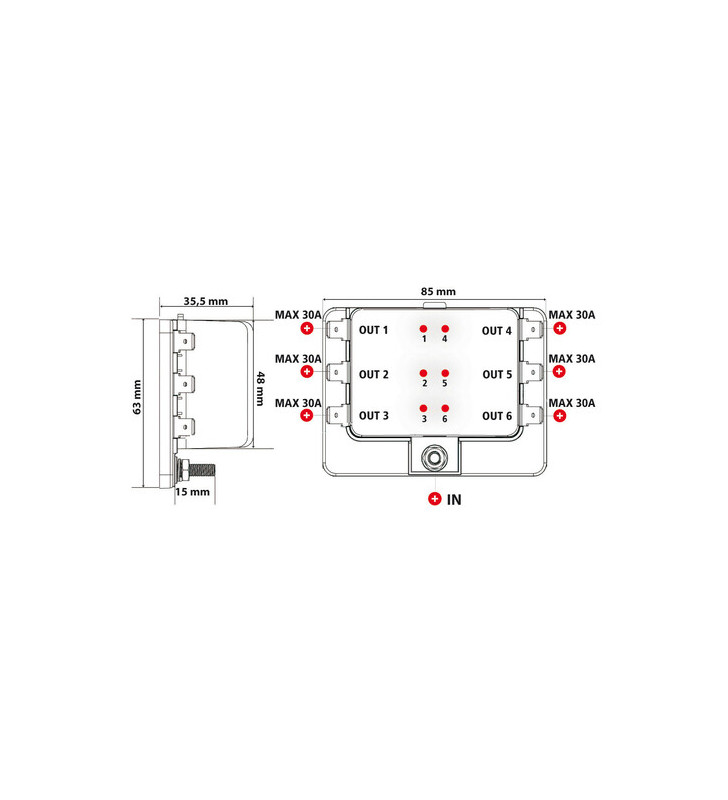

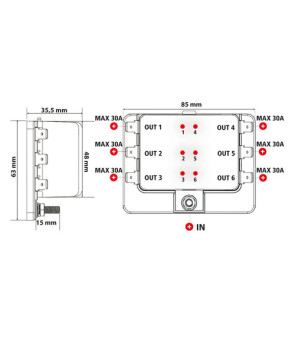

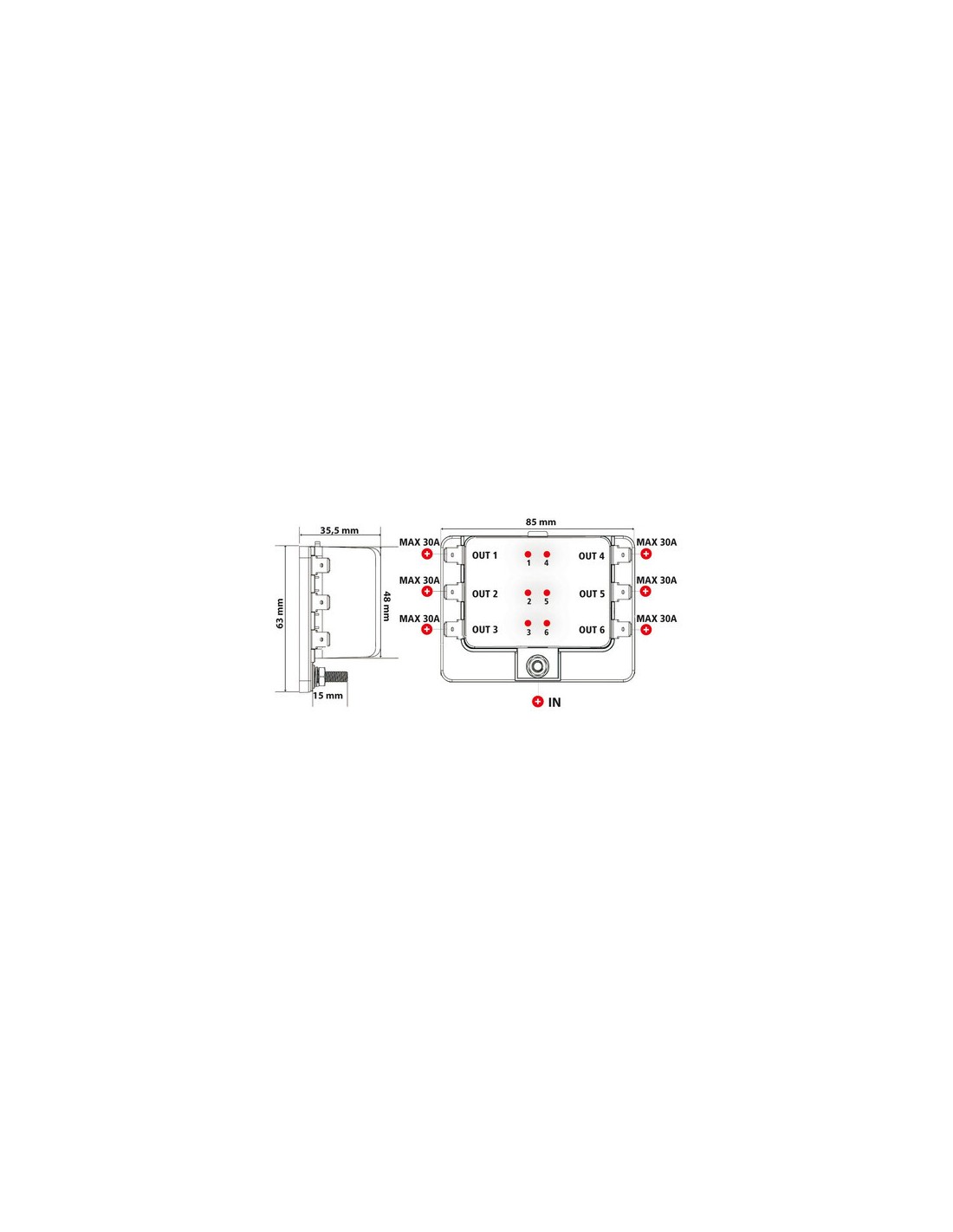

Drilling: 27.5x16 mm

  • A mm. 47
  • B mm 85
  • C mm 36
  • D mm 63

Fixing with 4 pre-drilled holes.

Used in automotive electronics, household appliances, the LED is parallel to the fuse.

When the fuse blows, the LED is powered.


70097
2 Items

11 other products in the same category:

50A R450 fuse holder + flat fuse + cable lug 50A R450 fuse holder + flat fuse + cable lug 2
5 days of preparation excluding made to order items
Fuse holder

50A R450 fuse holder + flat fuse + cable lug

95031 - 222551
€6.95
Portafusibile CBE R450 - con fusibile a nastro da 50A, completo di capocorda  Passo fissaggio fusibile circa 30 mm
Portafusibili SLTRIP e Midival Portafusibili SLTRIP e Midival 2
5 days of preparation excluding made to order items
Fuse holder

Portafusibili SLTRIP e Midival

FUS2488
€4.90
MTA 0100370/10 Fuse holder for SLTRIP and Midival ribbon fuses Type of fuse accessories fuse holder Fuse size 40mm Maximum current 125A Assembly screwable, to be pressed Use of fuses automotive fuses, for the MIDIVAL series Go out screws M5 Contact material copper alloy Number of tracks 1...
CBE R420 / C modular fuse holder CBE R420 / C modular fuse holder 2
5 days of preparation excluding made to order items
Fuse holder

CBE R420 / C modular fuse holder

95171
€2.30
Portafusibile componibile CBE R420/C per camper, barca, tuning. Con questo particolare modello, è possibile unire più portafusibili tra loro, rendendo ordinato il tuo impianto elettrico.
Watertight electrical junction box 76x127x45
5 days of preparation excluding made to order items
Fuse holder

Watertight electrical junction box 76x127x45

L0608044
€14.90
Watertight electrical junction box in black plastic - 76x127x45 Sturdy container and lid, closed cable glands to be drilled as needed. Inputs-Input: 3 (2 medium, 1 small) -3 (2 medium, 1 small) Clamps-Clamps: 8 (4 + 4) Dimensions-Size mm. 76x127x45 Center distance of drilling for fixing 88 mm approx
Fixed blade fuse holders from 3 to 20A PF-2 female faston Fixed blade fuse holders from 3 to 20A PF-2 female faston 2
5 days of preparation excluding made to order items
Fuse holder

Fixed blade fuse holders from 3 to 20A PF-2 female faston

45002
€1.00
Fixed fuse holder PF-2 for blade fuses, female faston connection Suitable for blade fuses from 3 to 20 A, for connection with cable lugs. Made of nylon.
ANL 300A fuse holder - pitch 60 - 123x28x36 mm ANL 300A fuse holder - pitch 60 - 123x28x36 mm 2
5 days of preparation excluding made to order items
Fuse holder

ANL 300A fuse holder - pitch 60 - 123x28x36 mm

42237.24
€11.00
ANL 300A fuse holder - pitch 60 - 123x28x36 mm Suitable for ANL fuses Contacts: nickel-plated brass Maximum voltage: 32V Max current: 300A M8 fixing bolts. Body: flame retardant resin Fuse not included
2 Midi - 1 Mega fuse box with battery pole clamp 2 Midi - 1 Mega fuse box with battery pole clamp 2
5 days of preparation excluding made to order items
Battery terminals

2 Midi - 1 Mega fuse box with battery pole clamp

100011
€26.50
Screw clamp fuse box (2 x MidiVal - 1 x MegaVal) with battery pole clamp POWER UNIT with indirect tightening on the battery pole. It can mount 2 MidiVal fuses and 1 MegaVal fuse (not included) Snap closure of the cap. Pre-assembled body in polyamide 66 plastic material with glass fiber type GF20 (high resistance to heat and aging) and lid in PP...
Lamellar fuse holder from 10 to 30A PF-3 cable 30 cm Lamellar fuse holder from 10 to 30A PF-3 cable 30 cm 2
5 days of preparation excluding made to order items
Fuse holder

Lamellar fuse holder from 10 to 30A PF-3 cable 30 cm

45003
€2.20
PF-3 pre-wired fuse holder 30 cm In-line, for 10 to 30 A blade fuses. Waterproof, with lid. Complete with 30 cm cable Made of PVC
PF-1 fuse holder in bakelite for lamellar blades from 3... PF-1 fuse holder in bakelite for lamellar blades from 3... 2
5 days of preparation excluding made to order items
Fuse holder

PF-1 fuse holder in bakelite for lamellar blades from 3 to 30A

45001
€2.00
PF-1 Bakelite Blade In-Line Fuse Holder for 3 to 30A Fuses Cable 20cm
ANL in-line fuse holder with cover 40-275A ANL in-line fuse holder with cover 40-275A 2
5 days of preparation excluding made to order items
Fuse holder

ANL in-line fuse holder with cover 40-275A

45009
€9.90
ANL in-line fuse holder with cover Box with mefa fuse holder cover Suitable for Maxi+ fuse from 40 to 275 A. Fuse fixing hole pitch approximately 50 mm. Maximum dimensions 42x120xH39 mm Fuse not included 12/32Vdc
Inline fuse holder PF-4 glass fuses Inline fuse holder PF-4 glass fuses 2
5 days of preparation excluding made to order items
Fuse holder

Inline fuse holder PF-4 glass fuses

45004
€1.90
Portafusibile in linea fusibili vetro PF-4
