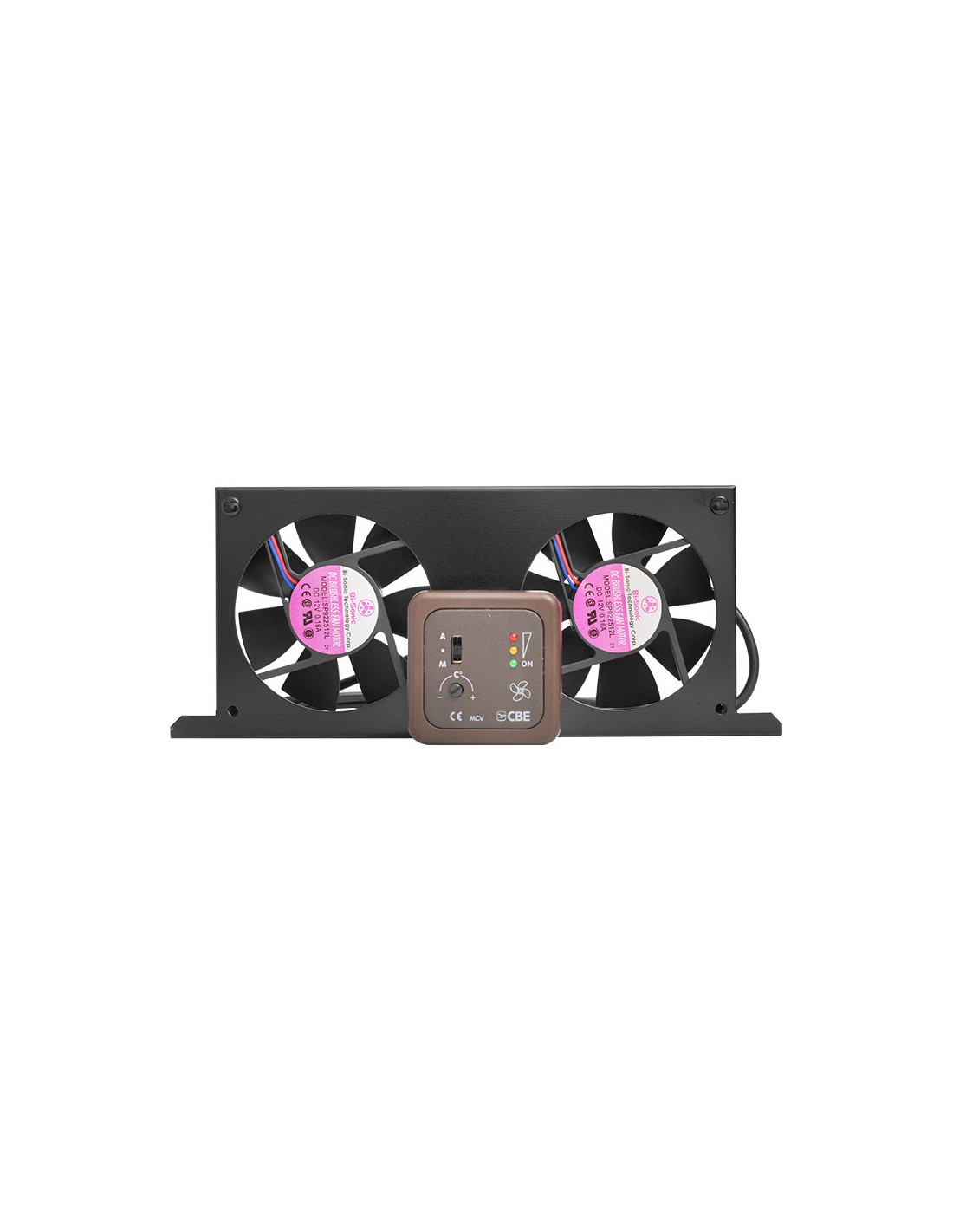

FRIDGE FAN CBE 2 VENT MCV2 BROWN

Automatic 12V double fan with brown control panel.

Electronic sensor and 1.5 m wiring.

Size: 250x100x28mm

Command size: 90x60 mm

FUNCTIONS

• Trimmer for adjusting the temperature threshold.
• Choice of operating mode:
  • MANUAL: - operation at maximum speed
  • CAR:
    • runs at maximum speed when the temperature exceeds ~50°C.
    • it works at minimum speed when the temperature is between the pre-set threshold (28 / 35°C) and approximately 50°C.
• Operation signaling led:
  • green: fan powered
  • yellow: automatic operation at low speed
  • red: manual or automatic operation at maximum speed
• Power supply at 12V dc via a line protected by a fuse (minimum cable section 1mm²).

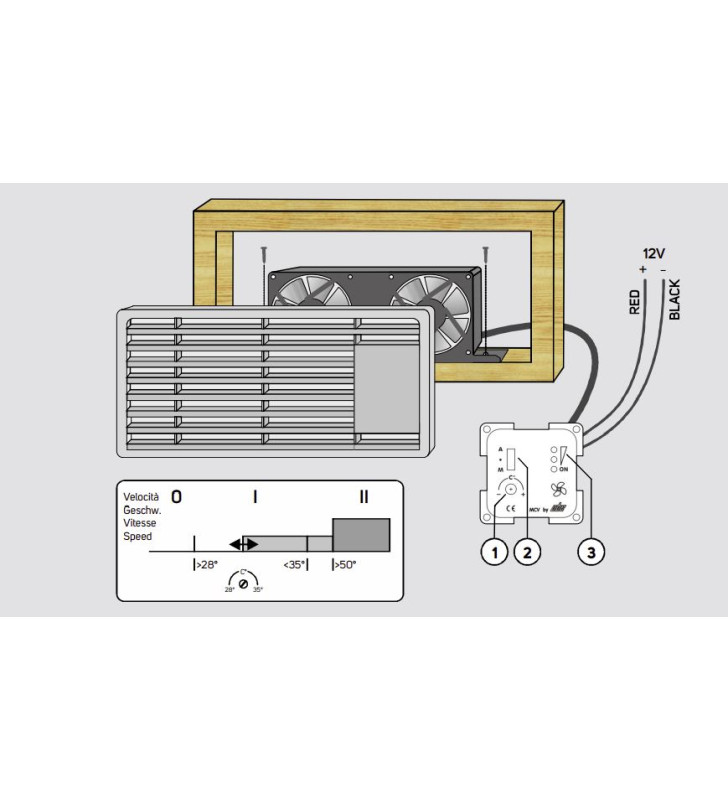

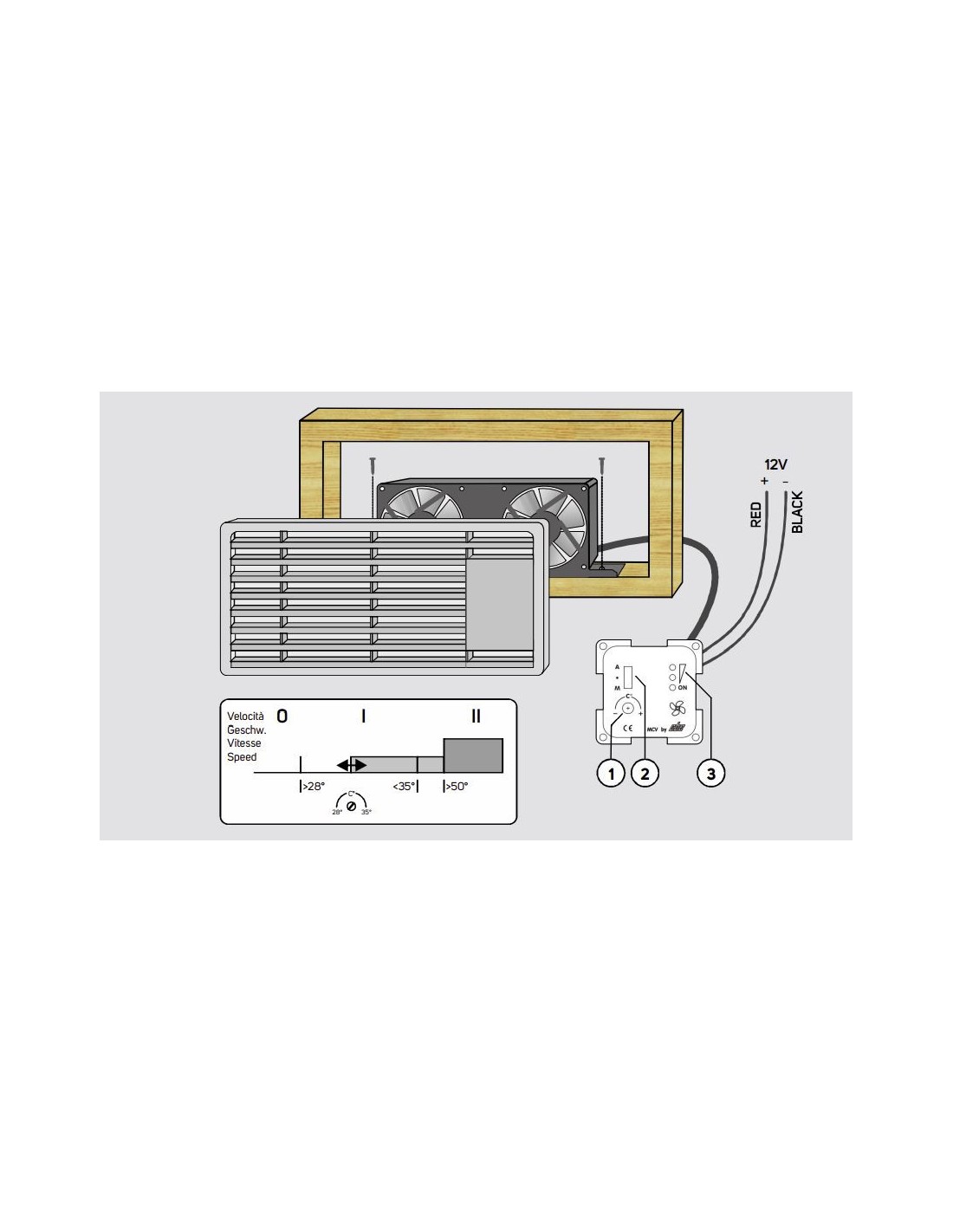

Mount the fan in the upper grille of the fridge, so that the air circulation takes place from the inside to the outside.

Depending on the type of grill fitted, use the most convenient fixing solution, bearing in mind that the temperature sensor must be turned inwards towards the fridge.

To assemble the control panel, use the bottom of the container as a drilling template (a 13mm hole is required for the passage of the connector).
