FABBRI COMPACT REAR BIKE RACK CAMPER 4 PLACES

FABBRI COMPACT REAR BIKE RACK CAMPER 4 PLACES

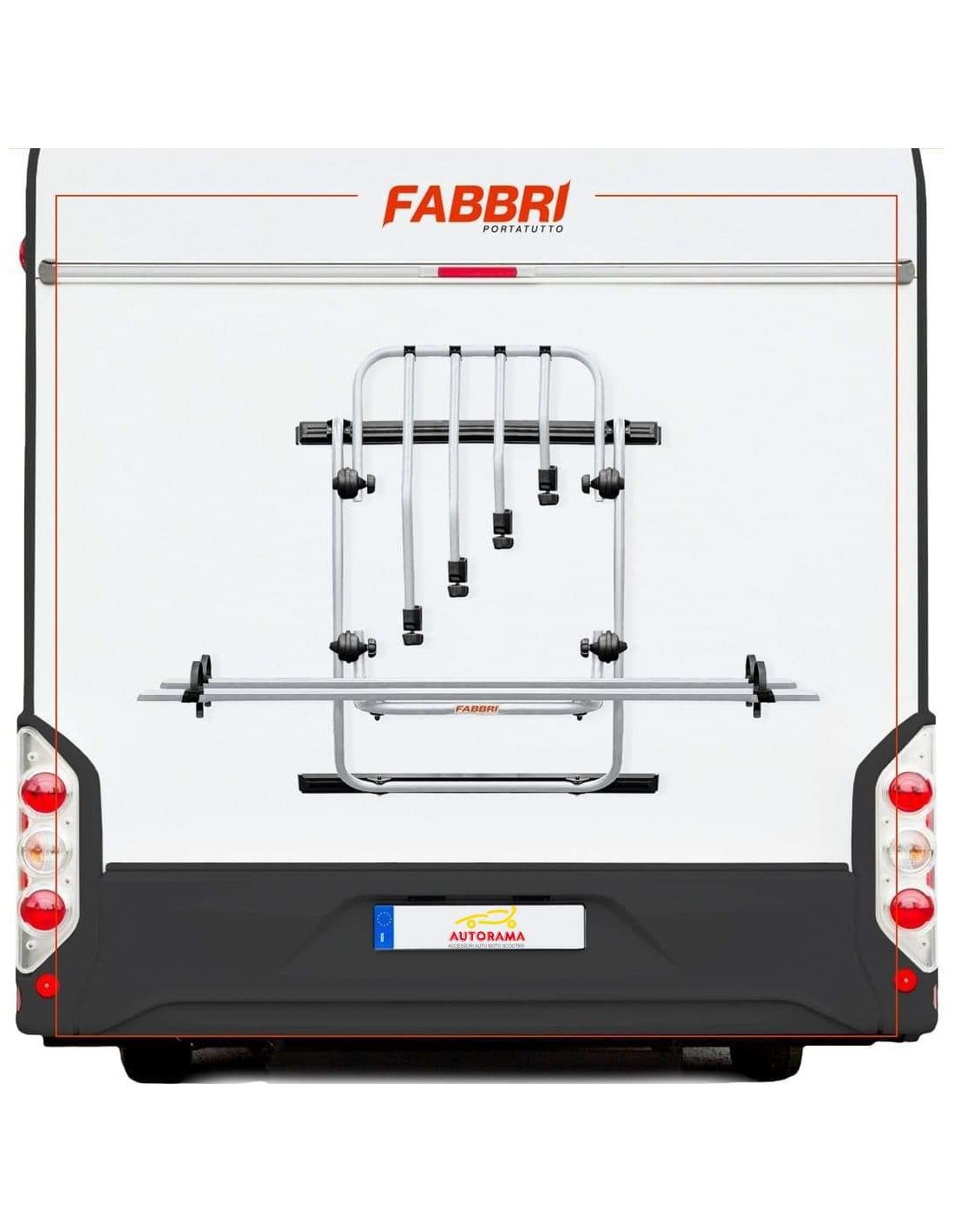

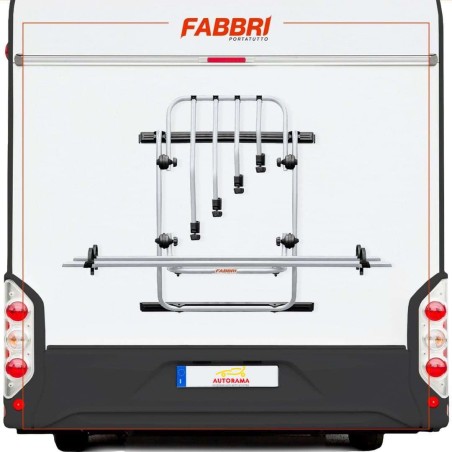

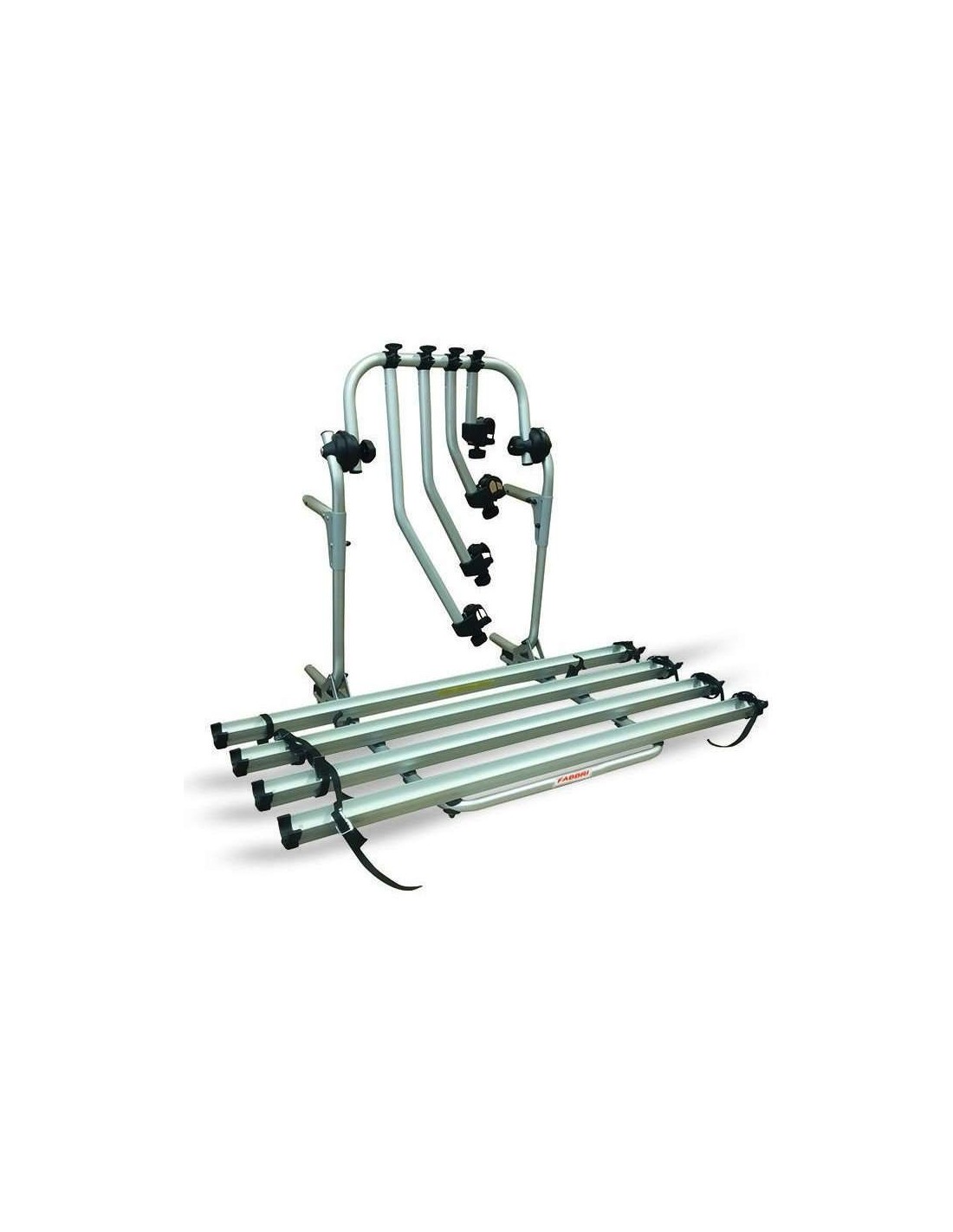

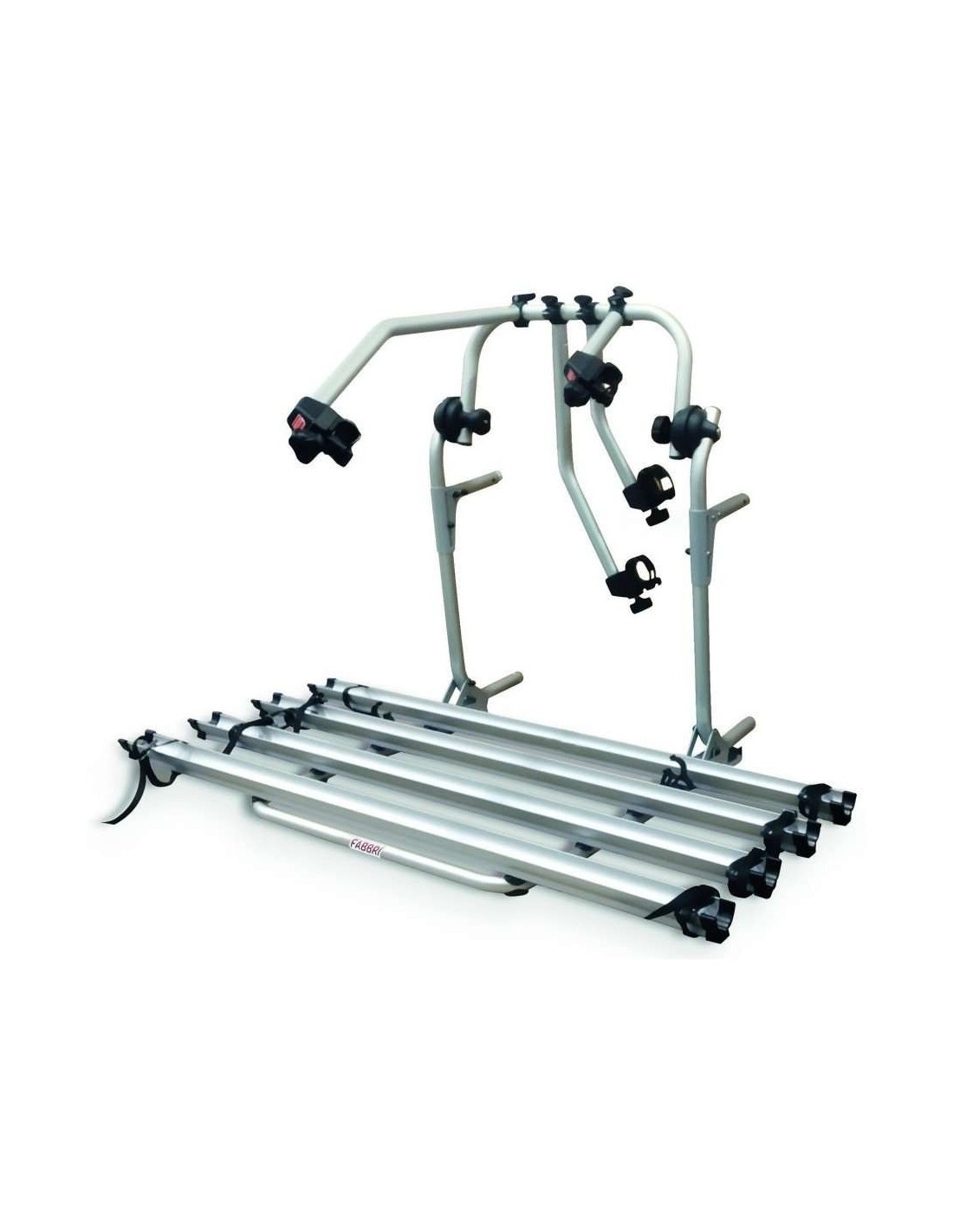

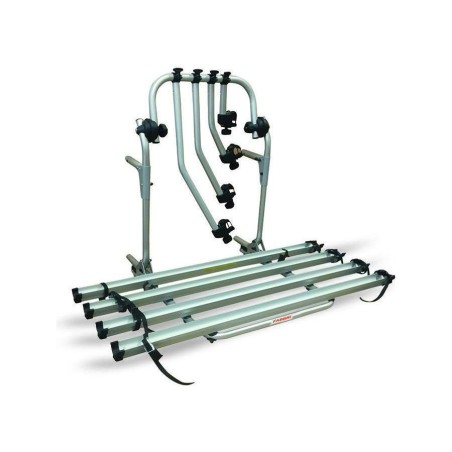

Electro-welded aluminum bike rack with specific frame for campers. Fixing with brackets. Suitable for transporting 4 standard bicycles (from 20″ to > 29″/ 700 c)

• 4 bikes or 2 E-BIKES by replacing the supplied channels with 2 135 cm MTB channels (two MTBs or 2 E-BIKES).
• Maximum load 60 kg (15 kg for each channel)
• Bike frame diameter 3-5 cm (2.4-6.5 with optional)
• Frame diameter oval tubes 16 cm (21 cm with optional)
• Length of channels 125 cm
• Tire size 2 inches (5.1 cm)
• Step 117 cm

Foldable when travelling empty. Lightness and robustness of the product guaranteed thanks to the use of electro-welded aluminium

Mounting of bicycles by means of 4 360˚ rotating aluminium arms

With “Viti Block” system to protect the aluminium when tightening the screws

With 2 double radius ABS serrated joints for a perfect hold even on bumps and dirt roads

• Supplied with 320 mm frame fixing cable, for diameter ø 30 – 50 mm
• Track length: 1250 mm, for wheels with width up to 51 mm and wheelbase up to 1150 mm
• Height-adjustable channels
• Does not cover the license plate
• Pre-assembled
• Anti-theft knob with keys available as an option
• Complies with DIN 75302
• Frame height 67.5 cm
• Distance between fixing attachments on the rear wall varies in height by 10 cm (from 40 to 50 cm)
