DRIVE-RITE Mini Metal Compressor 120 psi with Fittings and Hoses

Rif: 16536
5 days of preparation excluding made to order items
€199.00
VAT included
199
5 days of preparation excluding made to order items

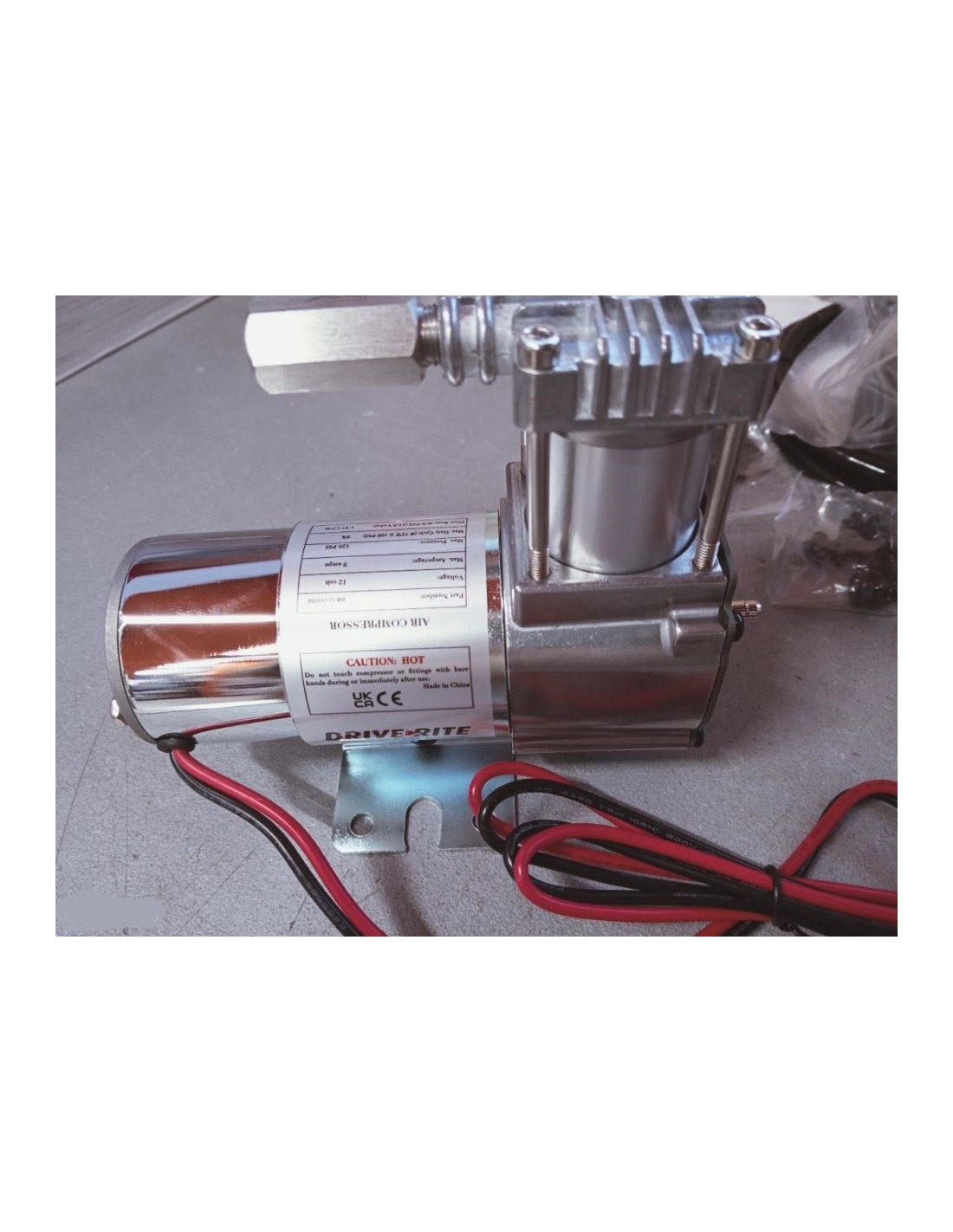

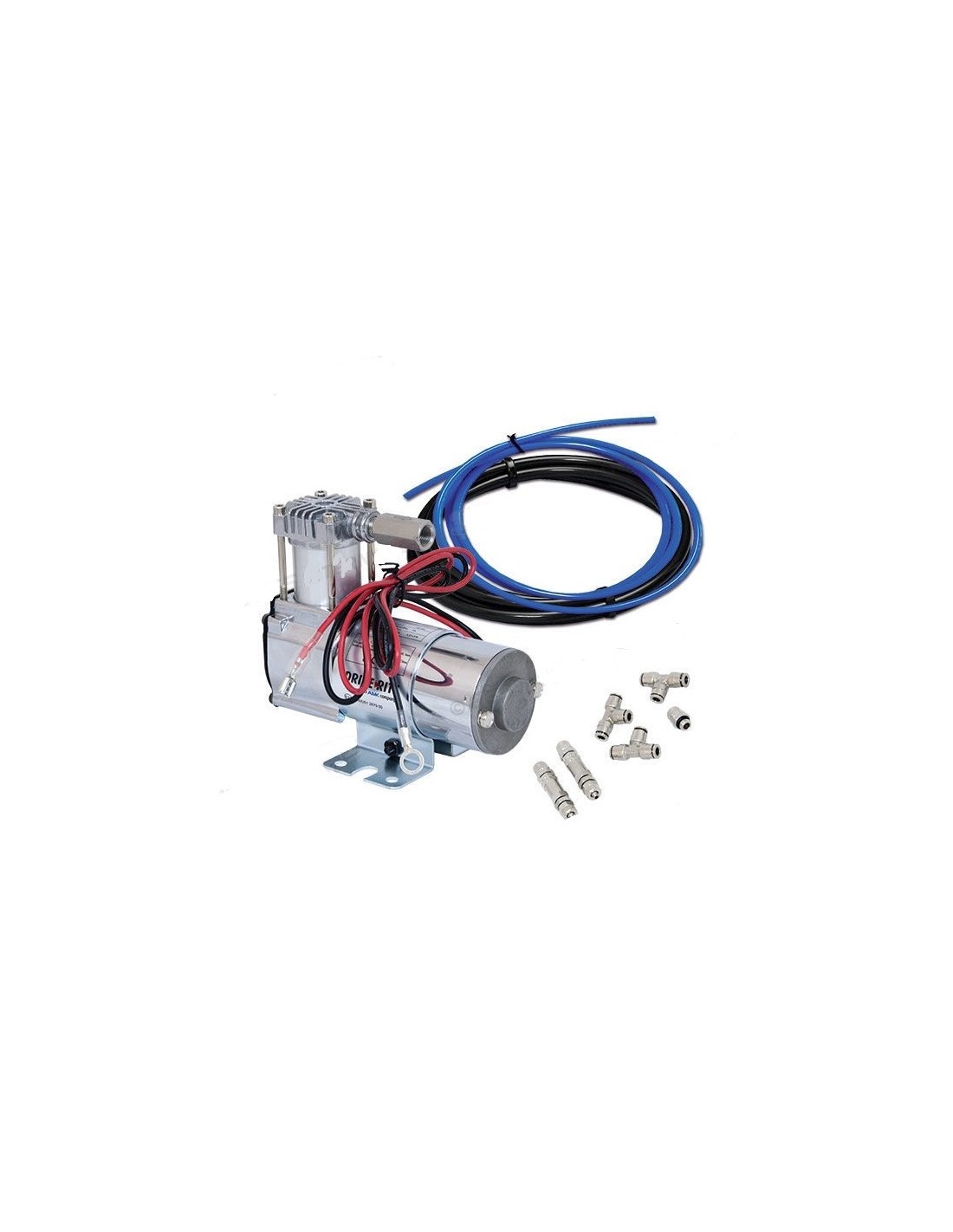

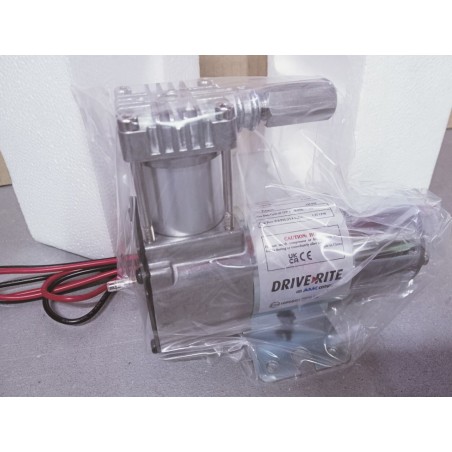

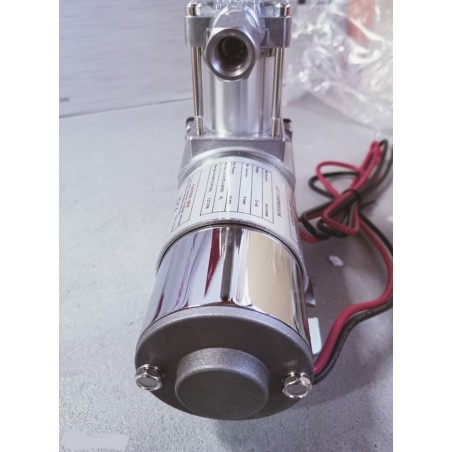

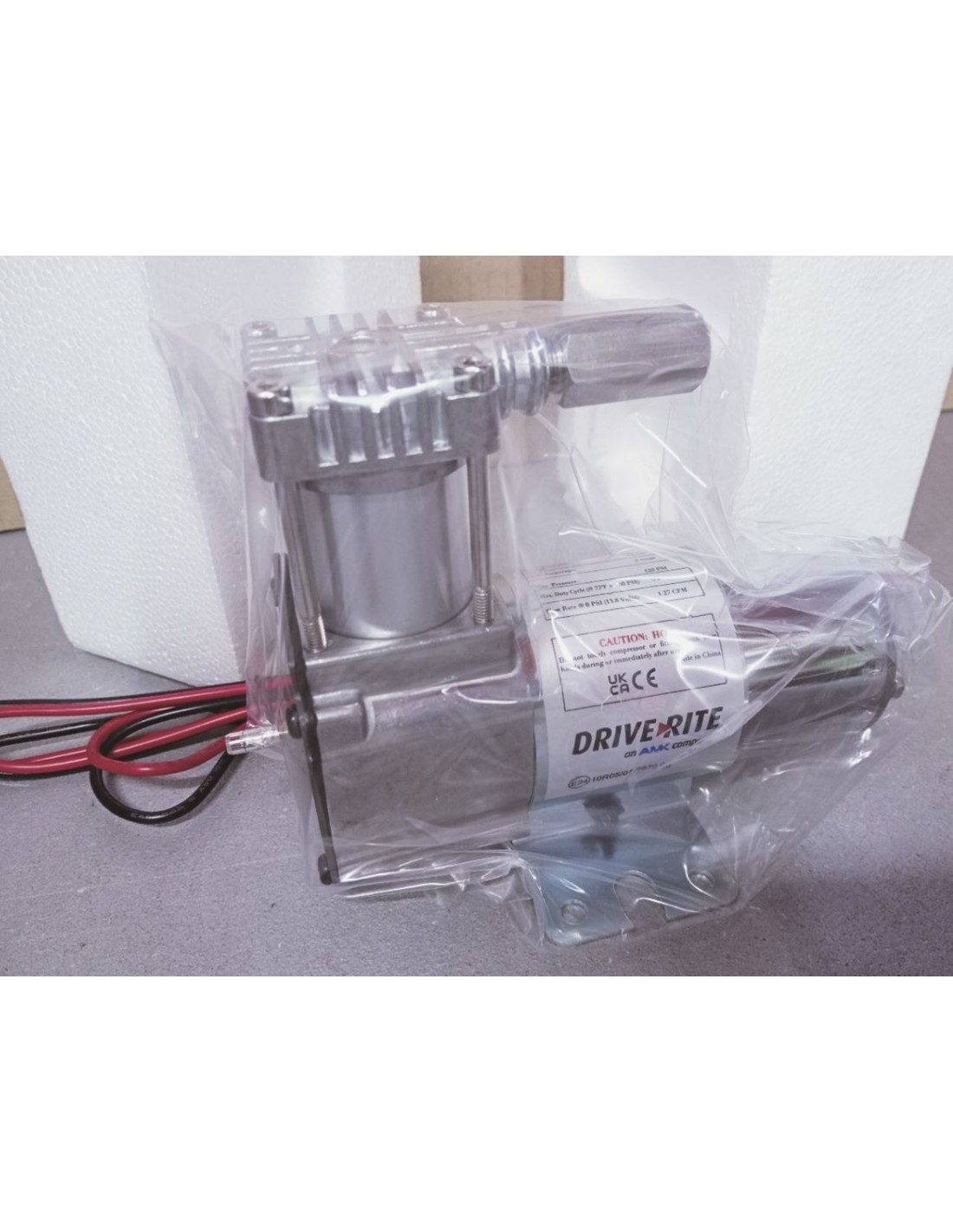

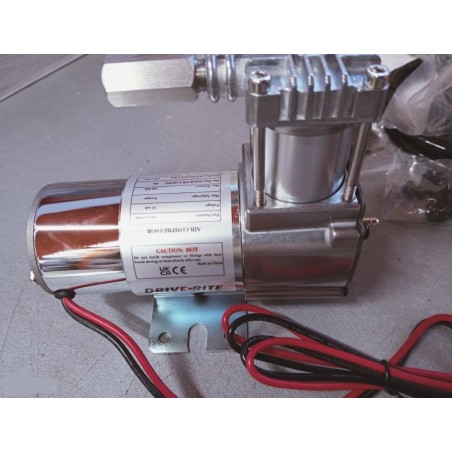

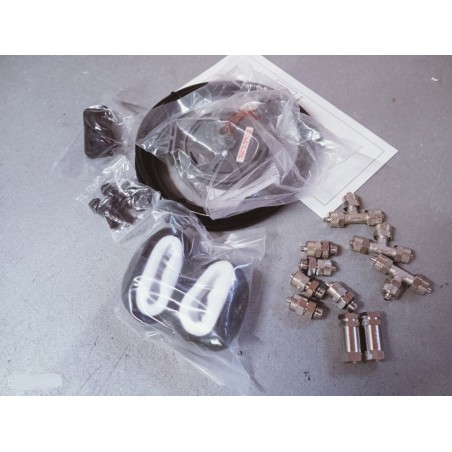

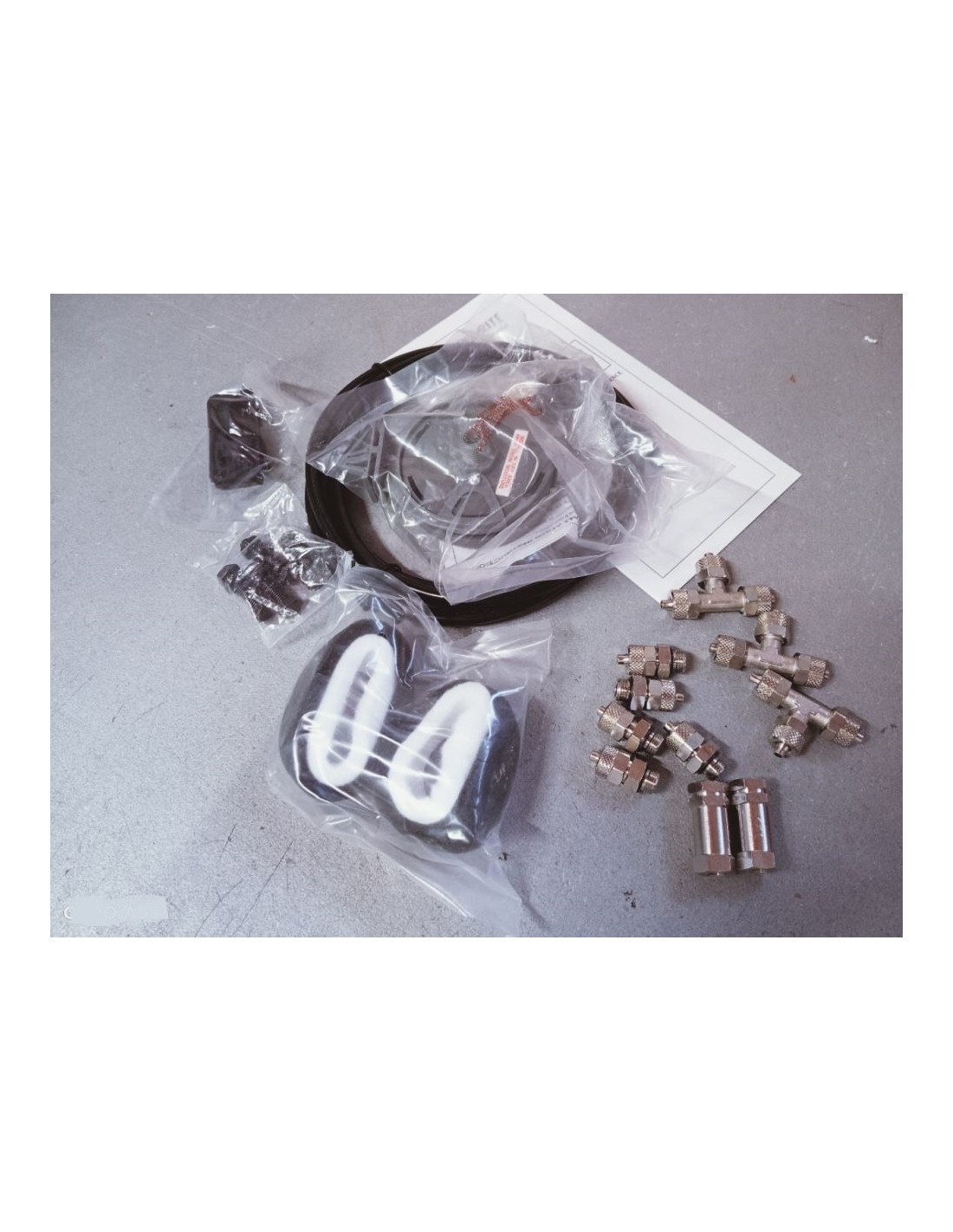

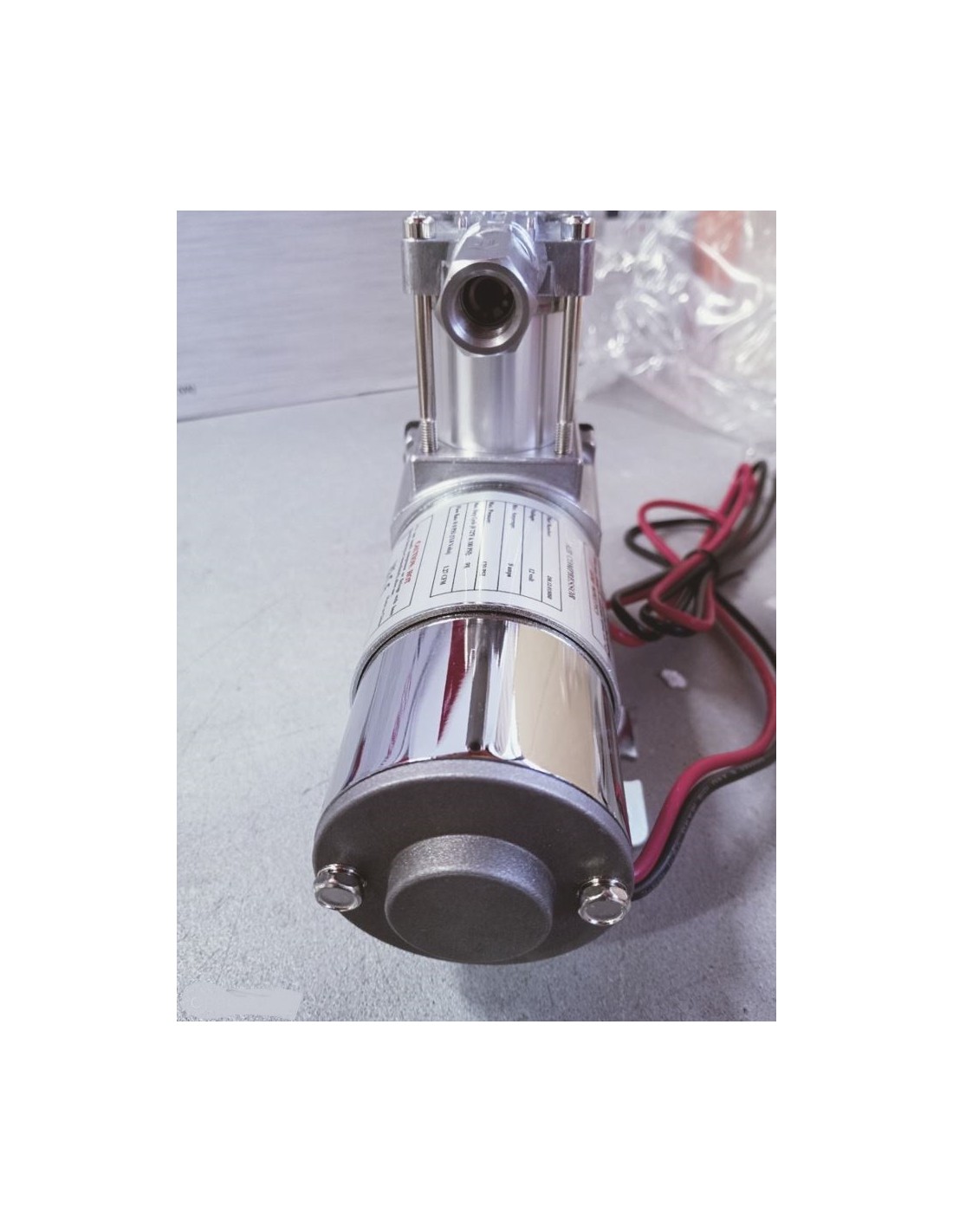

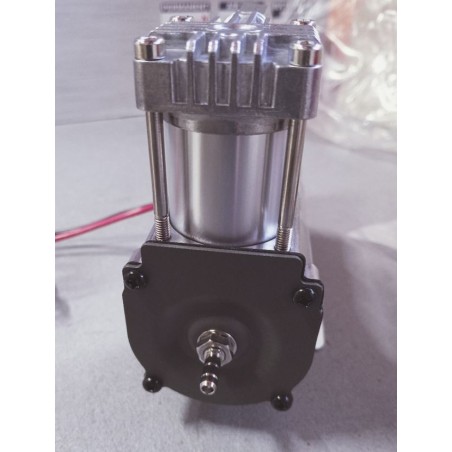

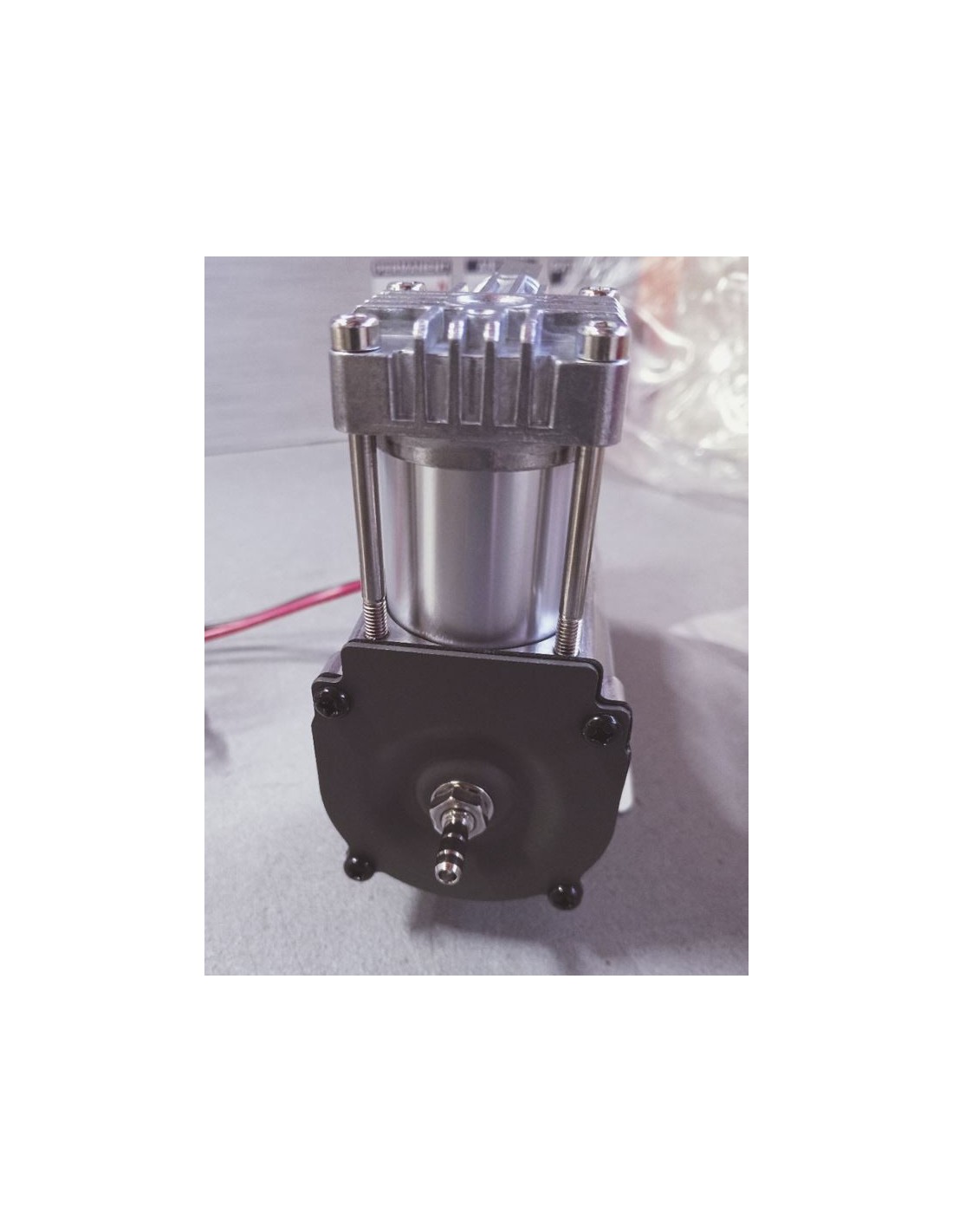

DRIVE-RITE 120 psi metal mini compressor with fittings, check valves and pipes for connection to the pressure gauge panel.

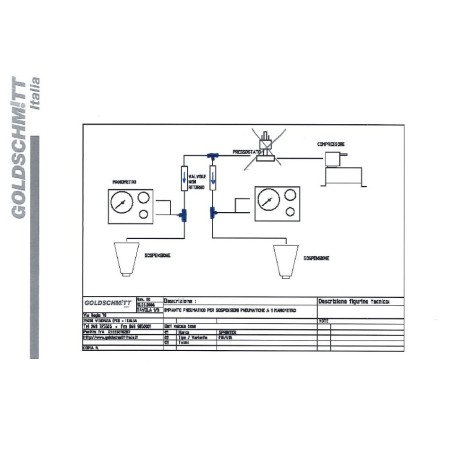

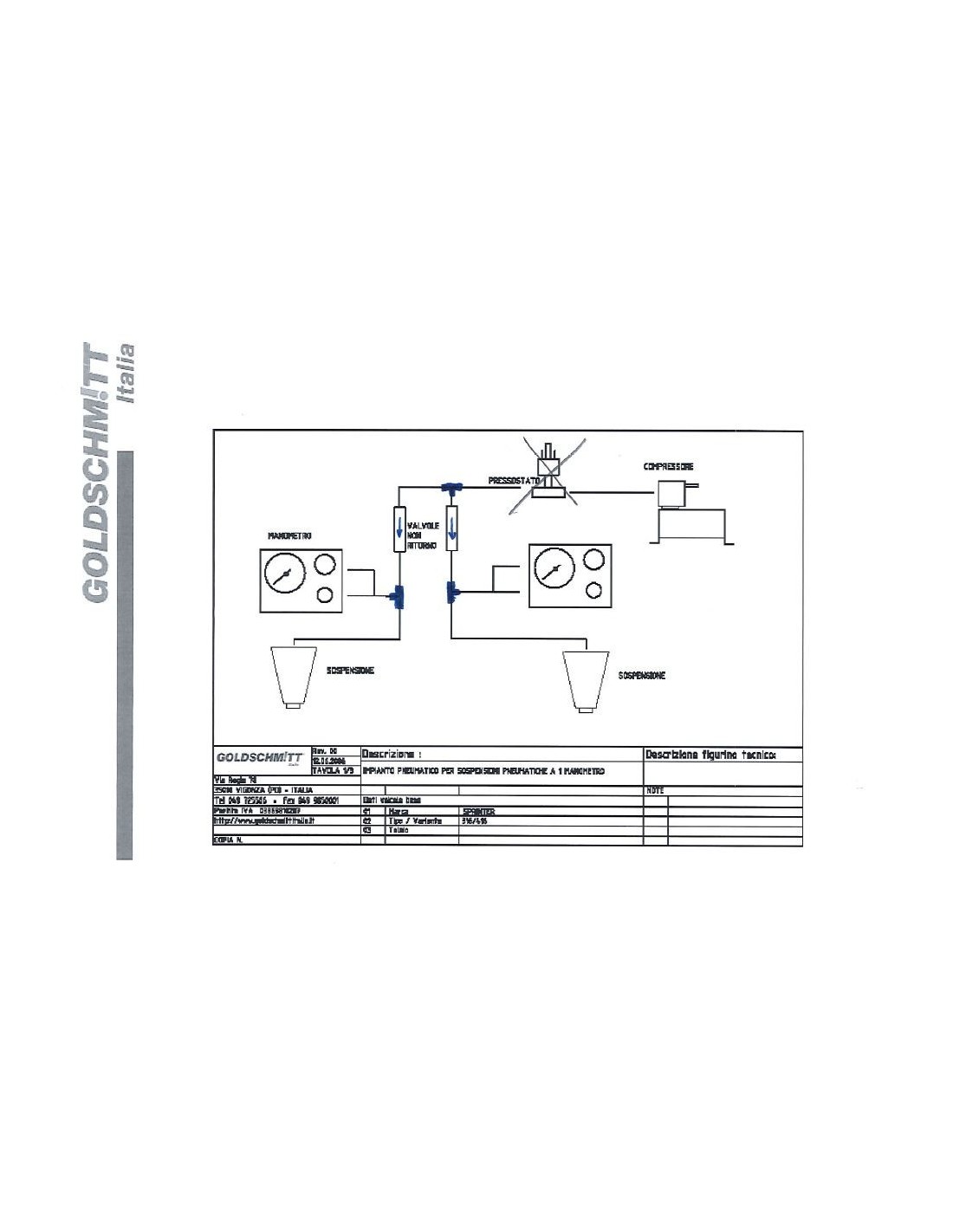

Professional 12V mini compressor with inlet air filter. See attached connection diagram.

Duty cycle 9%.

1/8” NTP connection.

Absorption 11 Ampere.

Maximum pressure 120 Psi, 8.3 bar.

Flow Rate 13.8V - 0 PSI: 1.27 CFM

Not suitable for loading air tanks.

Electrical Data

Operating Voltage Range 9 - 16V DC
Max.AMPDraw 11 Amps
Duty Cycle 9%
Temperature Range -40 degrees C to 70 degrees C

Pneumatic Data

Pressure Control 8.3 Bar (120 psi)
Volume Fill Time (RT) 0-60psi (4.14 bar) in 42 sec for 1/2 gallon

Other Data

Mounting Position Multi-axis
Weight 1.25 kg (2.75 lbs)
Flow Data See Spec Image
Tube Connection

1/8" Thread fitting required. Suitable for 6mm tube or 1/4" tube fittings.





ARF0402
1 Item
