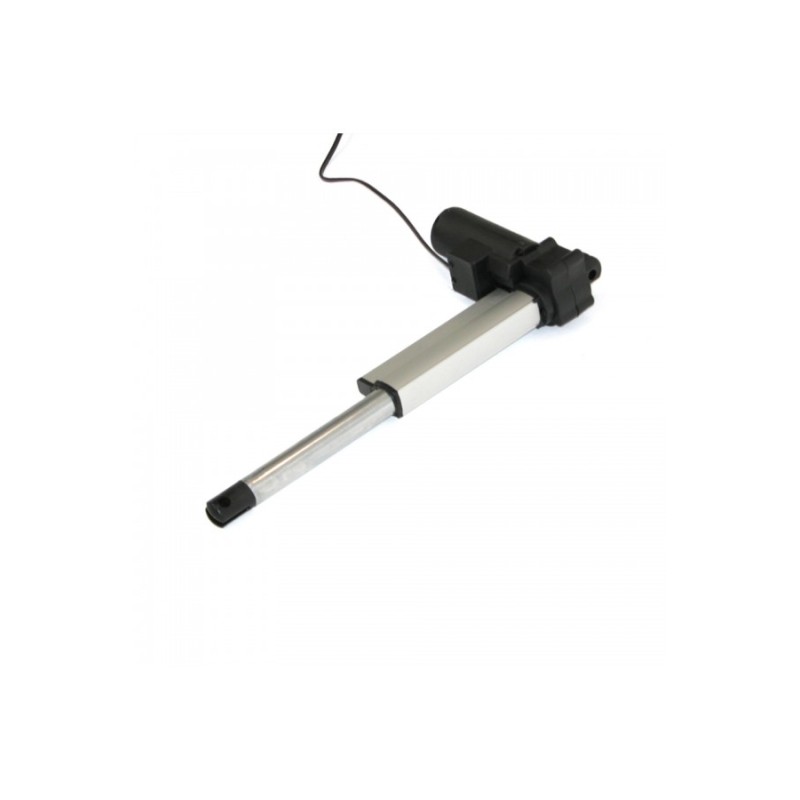

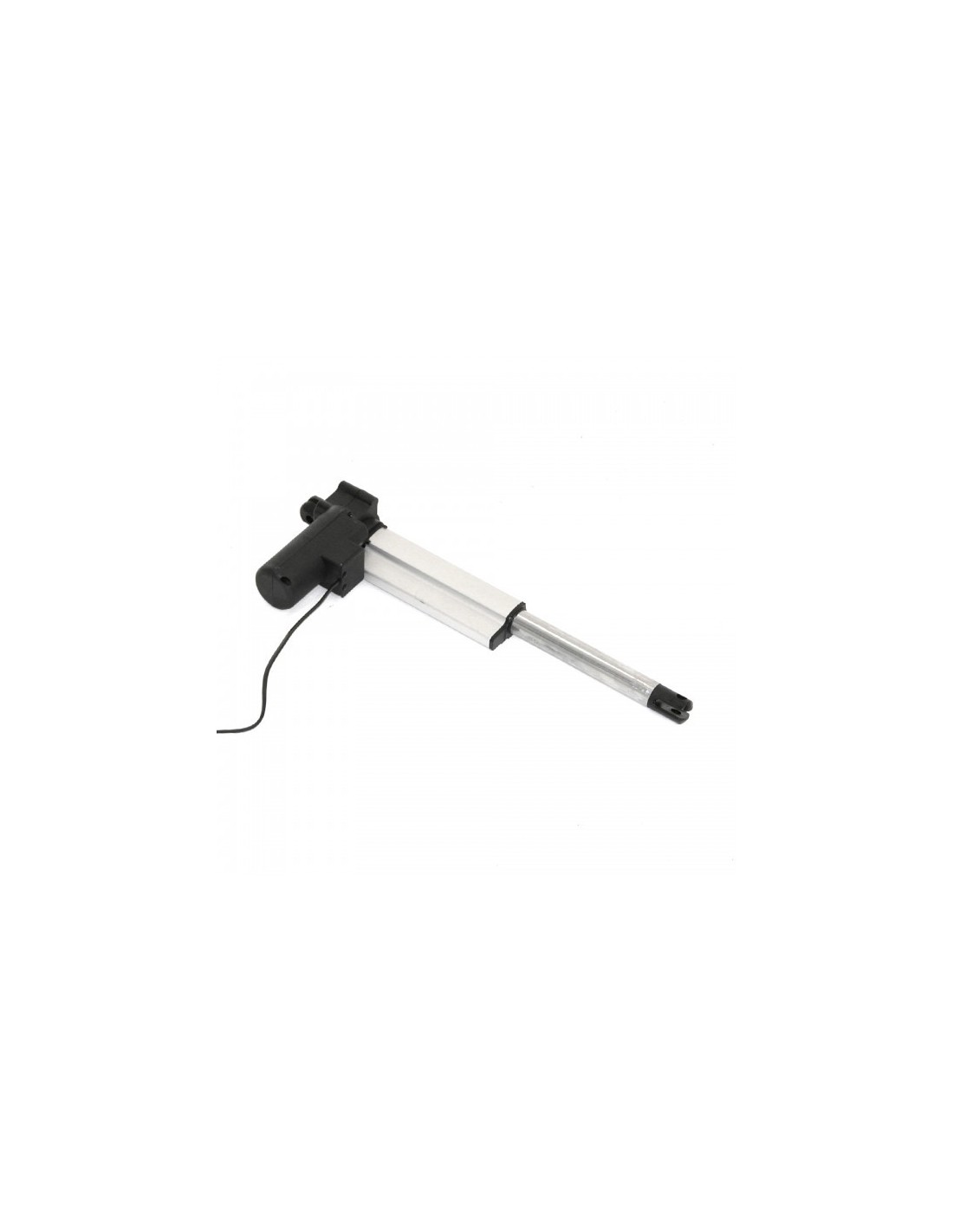

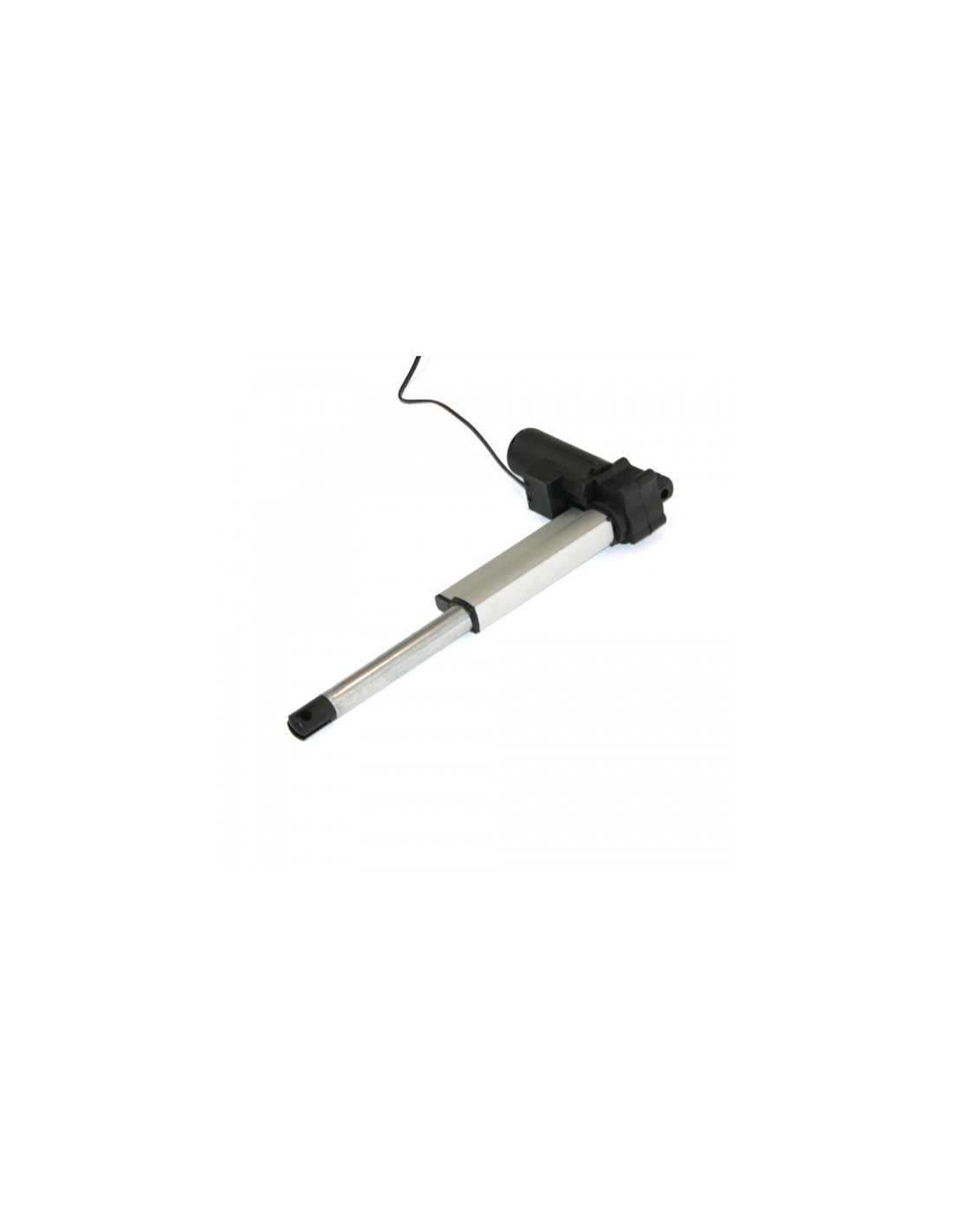

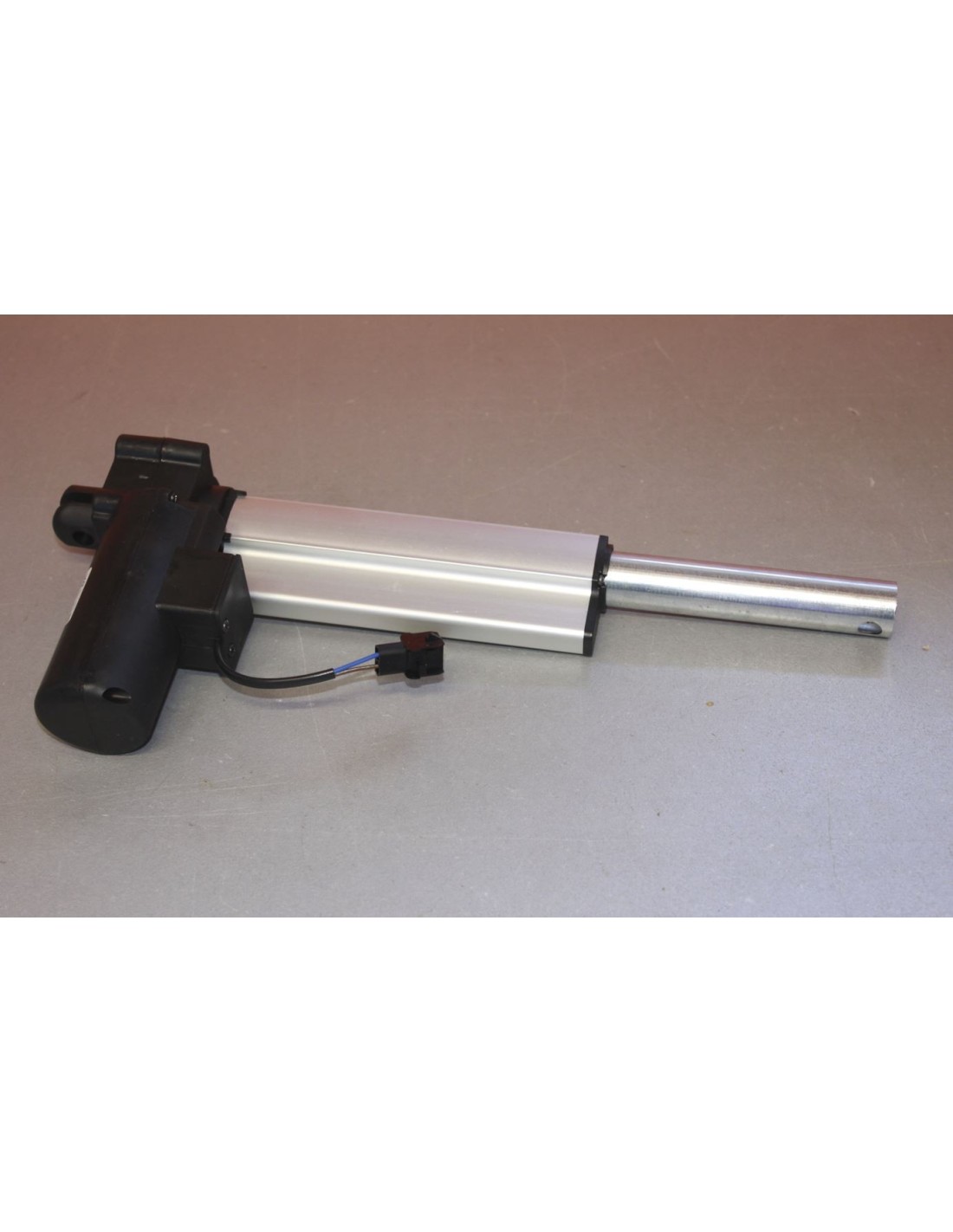

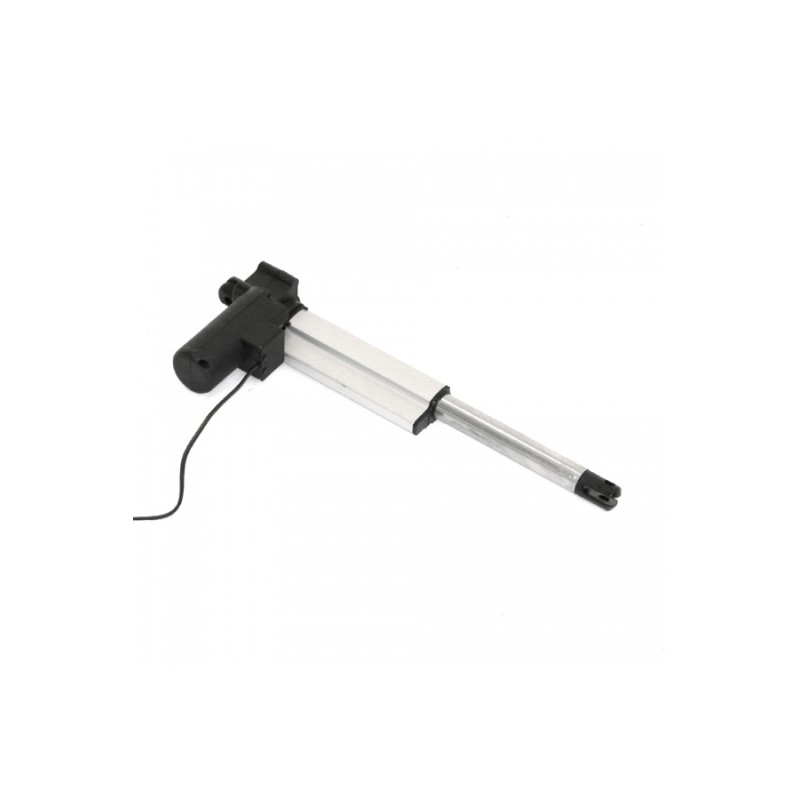

CIAR ACTUATOR LM20_03 STROKE 125 CLOSING 350 WITH ADJUSTABLE MICROSWITCHES
€145.00
VAT included
145
5 days of preparation excluding made to order items
Rif: 17157

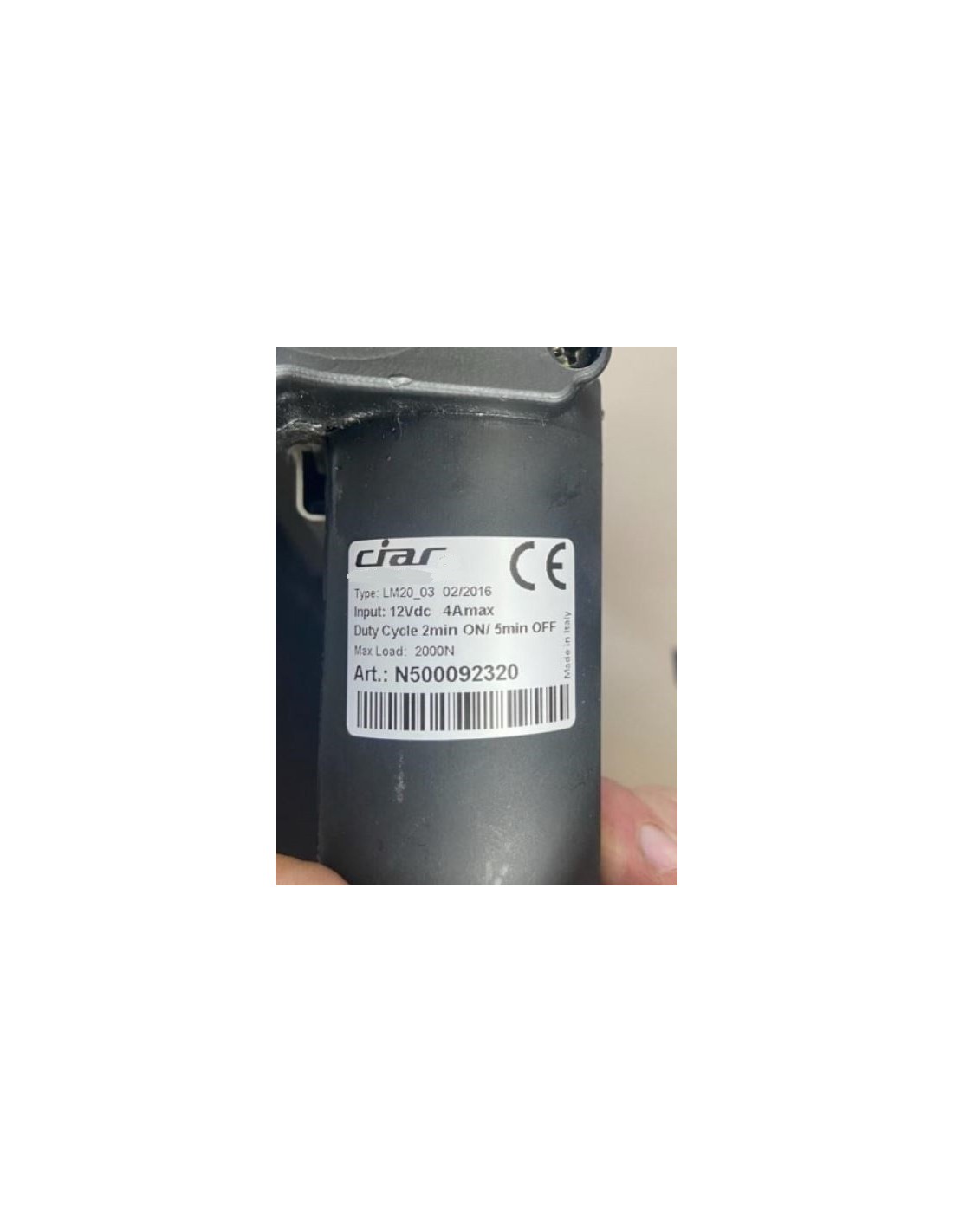

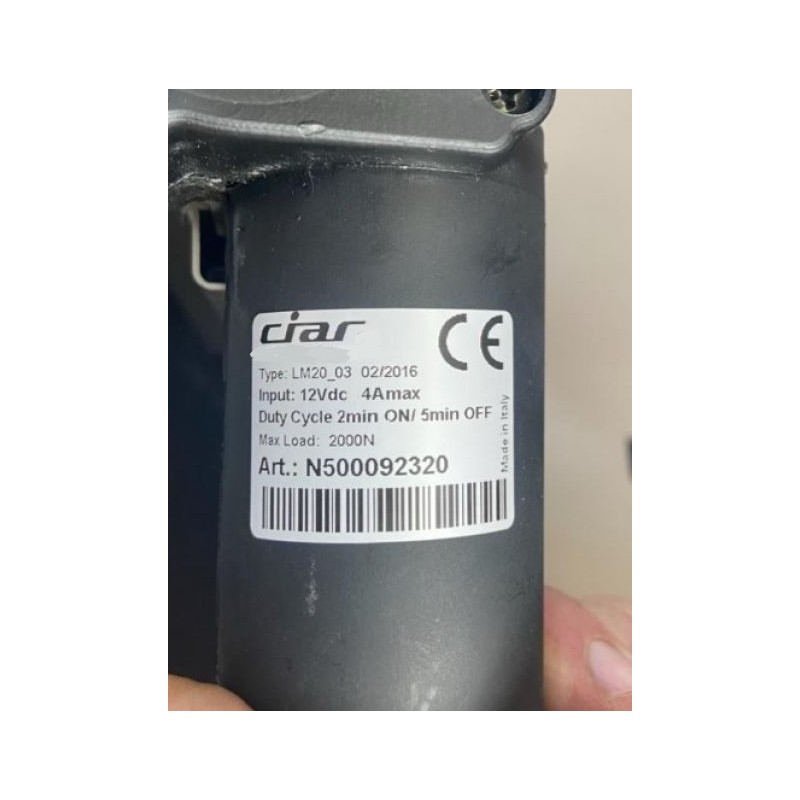

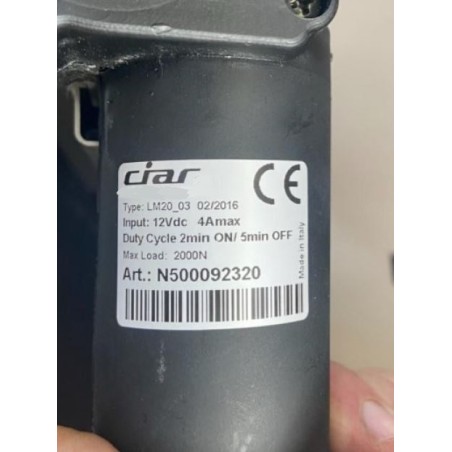

CIAR NO500092320 ACTUATOR LM20_03 STROKE 125 CLOSING 350 WITH ADJUSTABLE MICROSWITCHES 12 Vdc - Max Load 2000N
Speed: 2 to 30 mm/sec.

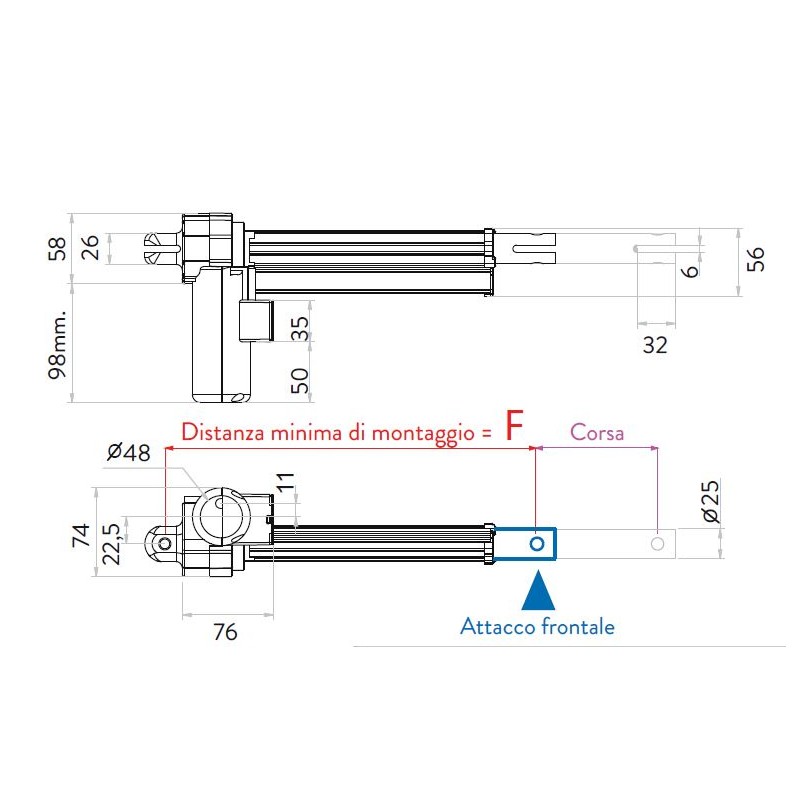

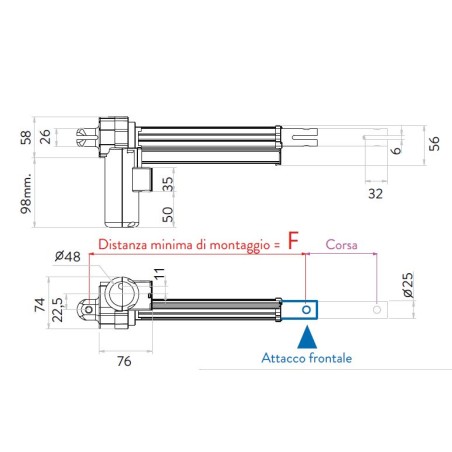

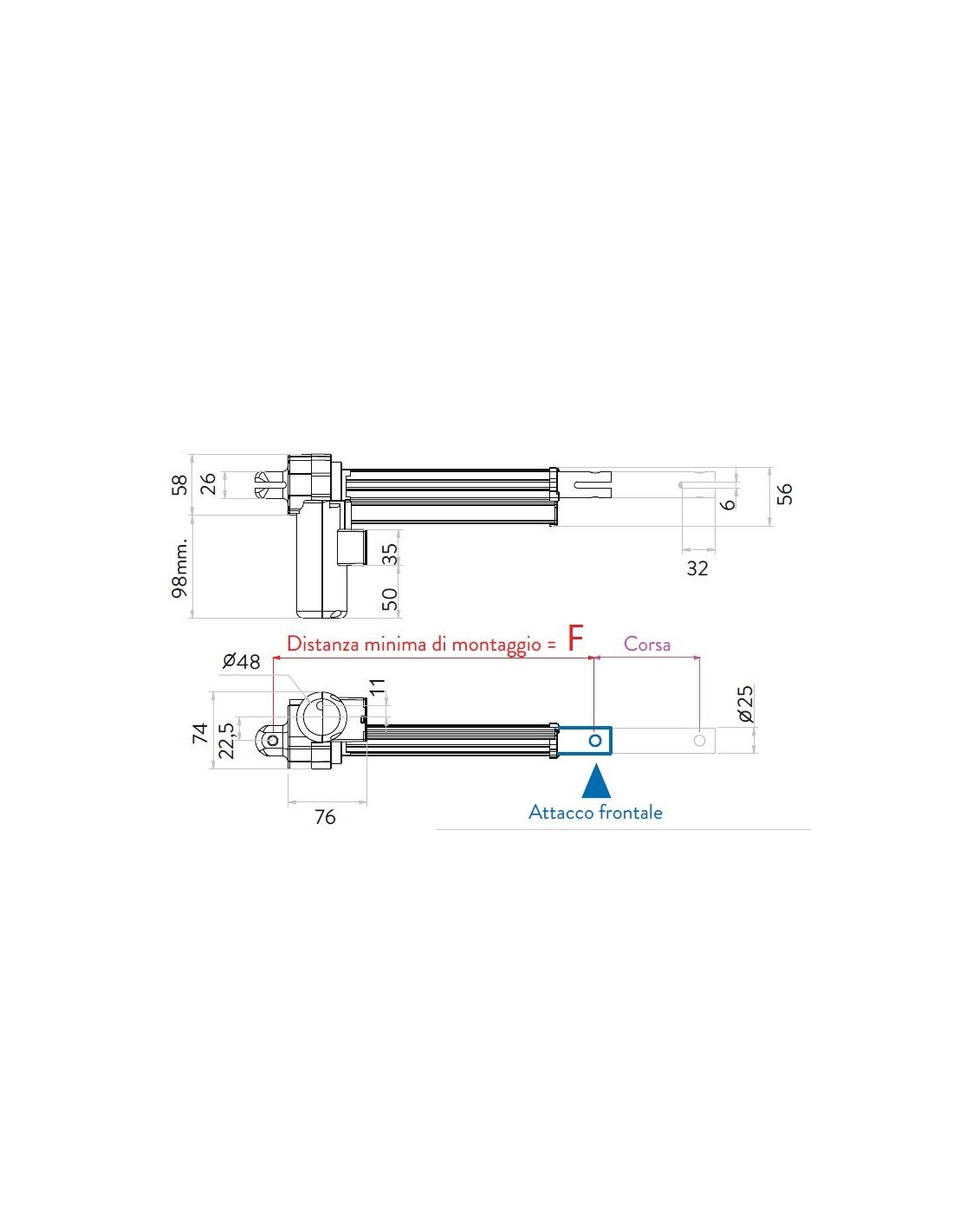

Mounting dimensions: 125mm. + Stroke
Stroke: 30 to 568mm. (with minimum distance)
Adjustable limit microswitches
TECHNICAL DATA
- Duty cycle: 2 min. ON and 5 min. OFF
- Weight: 1750 gr. (approximate)
- Protection type: IP30
- Enclosure: Anodized Aluminum / Black Plastic
- Tube: Galvanized Ø 25mm.
- Screw: Ø 16mm.

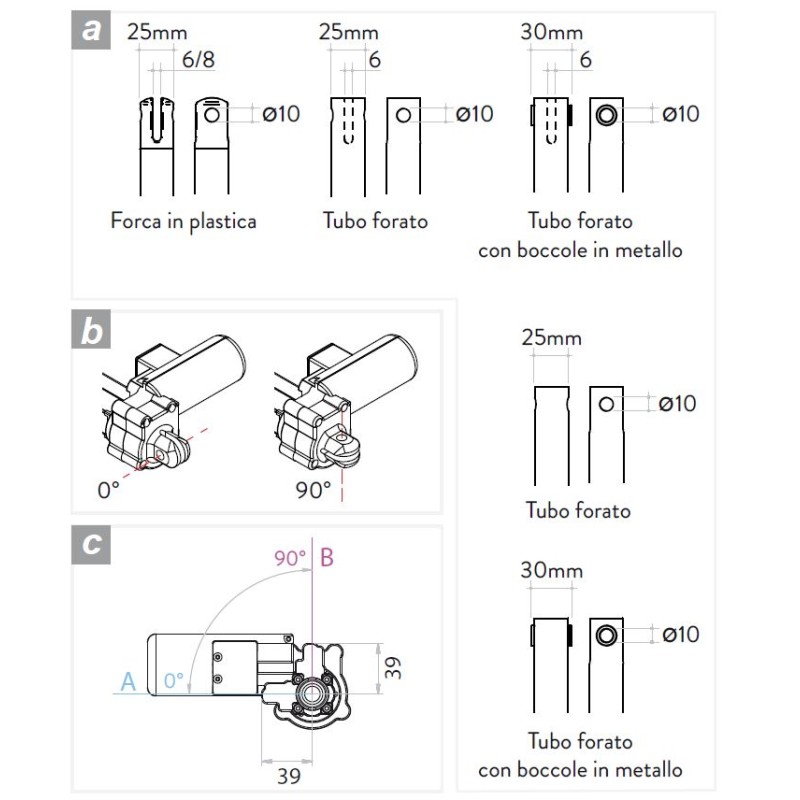

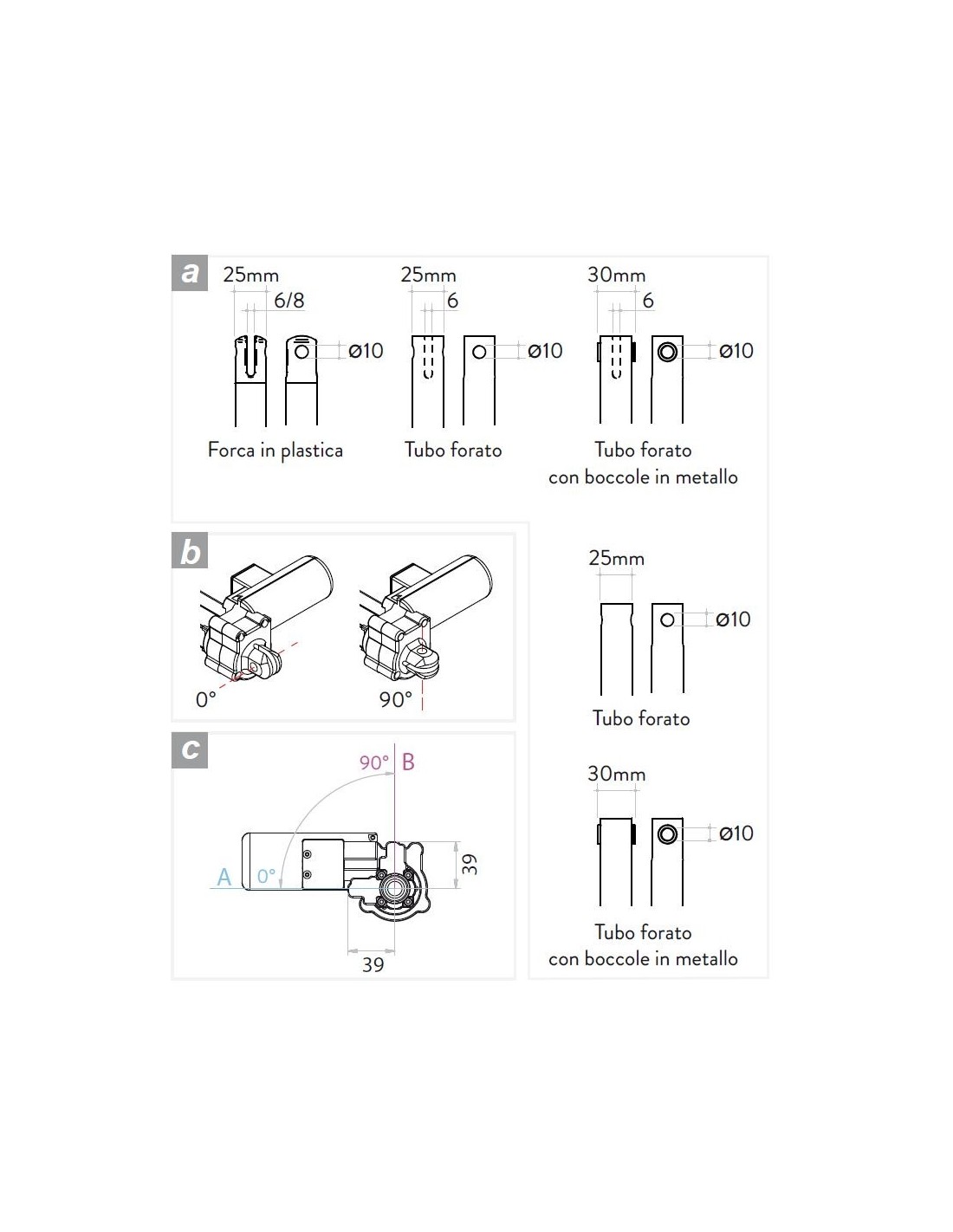

- Front attack (a)

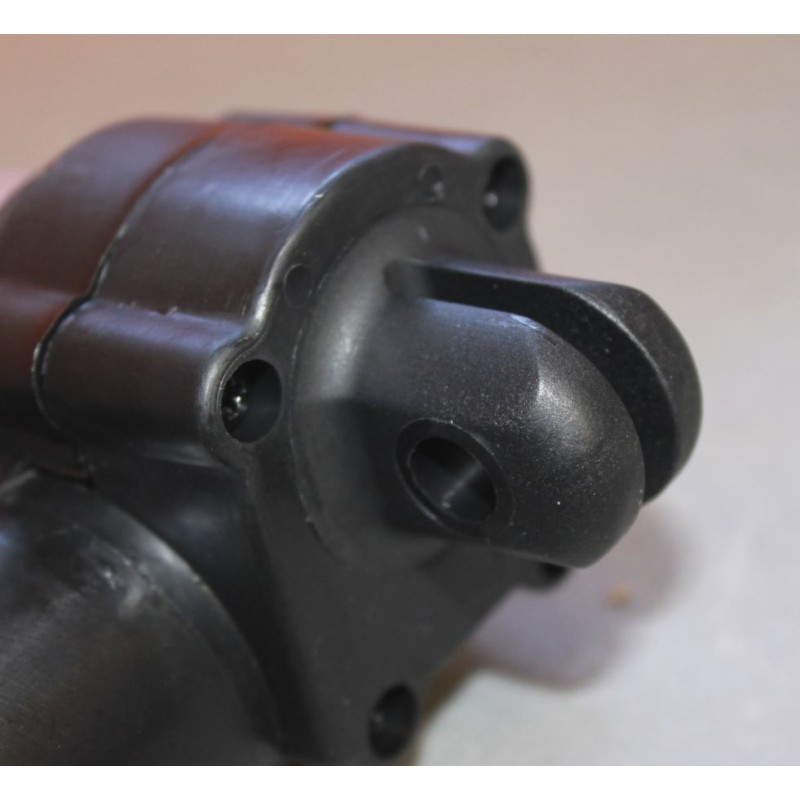

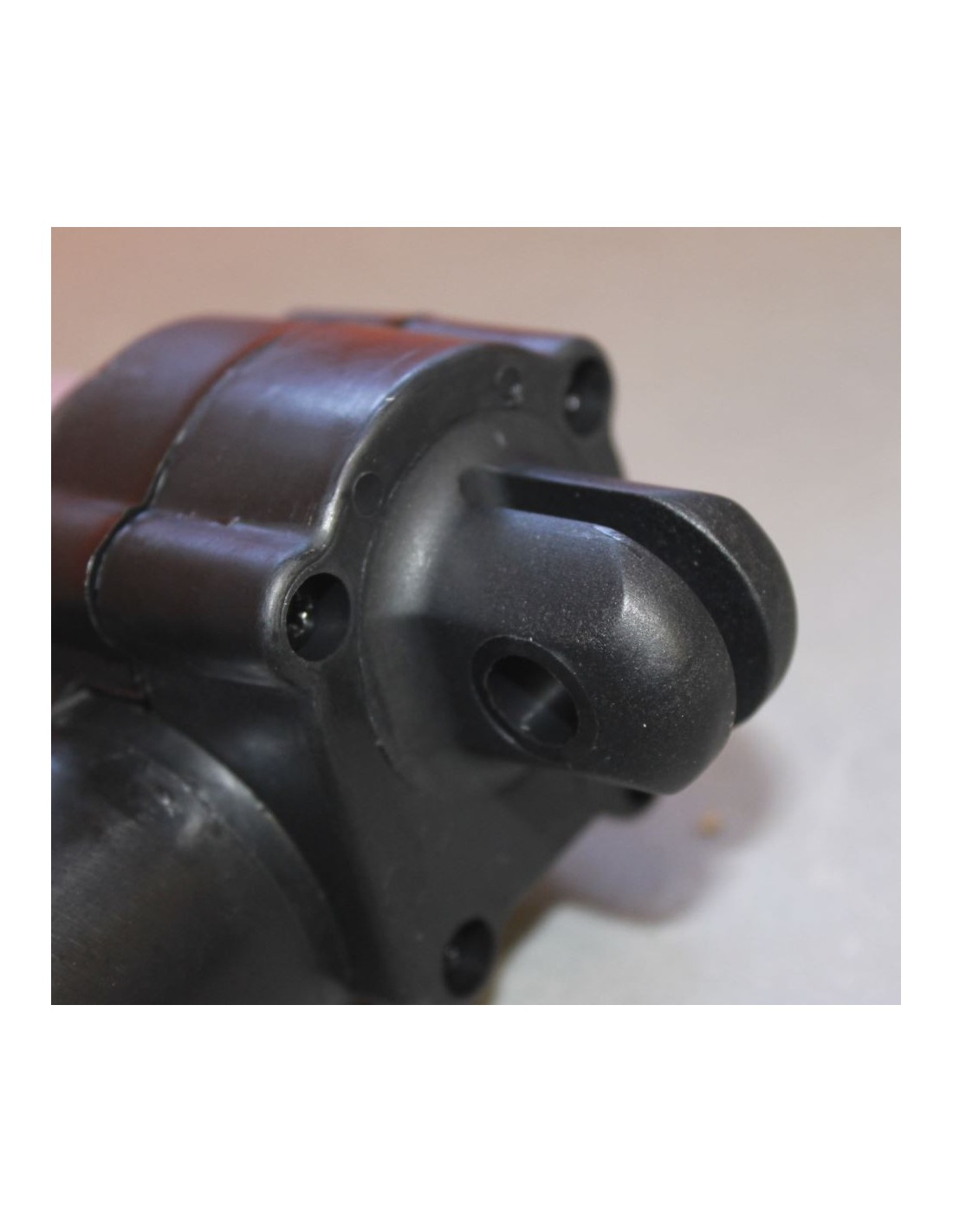

- Rear attachment (b)
- Microswitch orientation (c)
- Third microswitch
MADE TO ORDER. SHIPPING TIME APPROX 10 DAYS
DISCOUNT - MAKE A PURCHASE OF AT LEAST €200
You will immediately get a €10 discount
ITALY - SHIPPING POLICIES
Shipping starting from € 8.90 up to 2 kg and not bulky (sum three sides not exceeding one meter)
UK - MIN ORDER £135 EXCL. SHIPPING
Customs duties and taxes are the customer's responsibility.
EUROPE - SHIPPING POLICIES
Shipping from €14,90 up to 2 kg and not bulky (sum 3 sides over a meter). Superiors ask quote.
