Rafter LED FLAME for F45 and F65

Rafter LED FLAME for F45 and F65

Rafter LED FLAME for F45 and F65

Rafter LED FLAME for F45 and F65

Rafter LED FLAME for F45 and F65

Rif: 5653

5 days of preparation excluding made to order items

€98.00

VAT included

5 days of preparation excluding made to order items

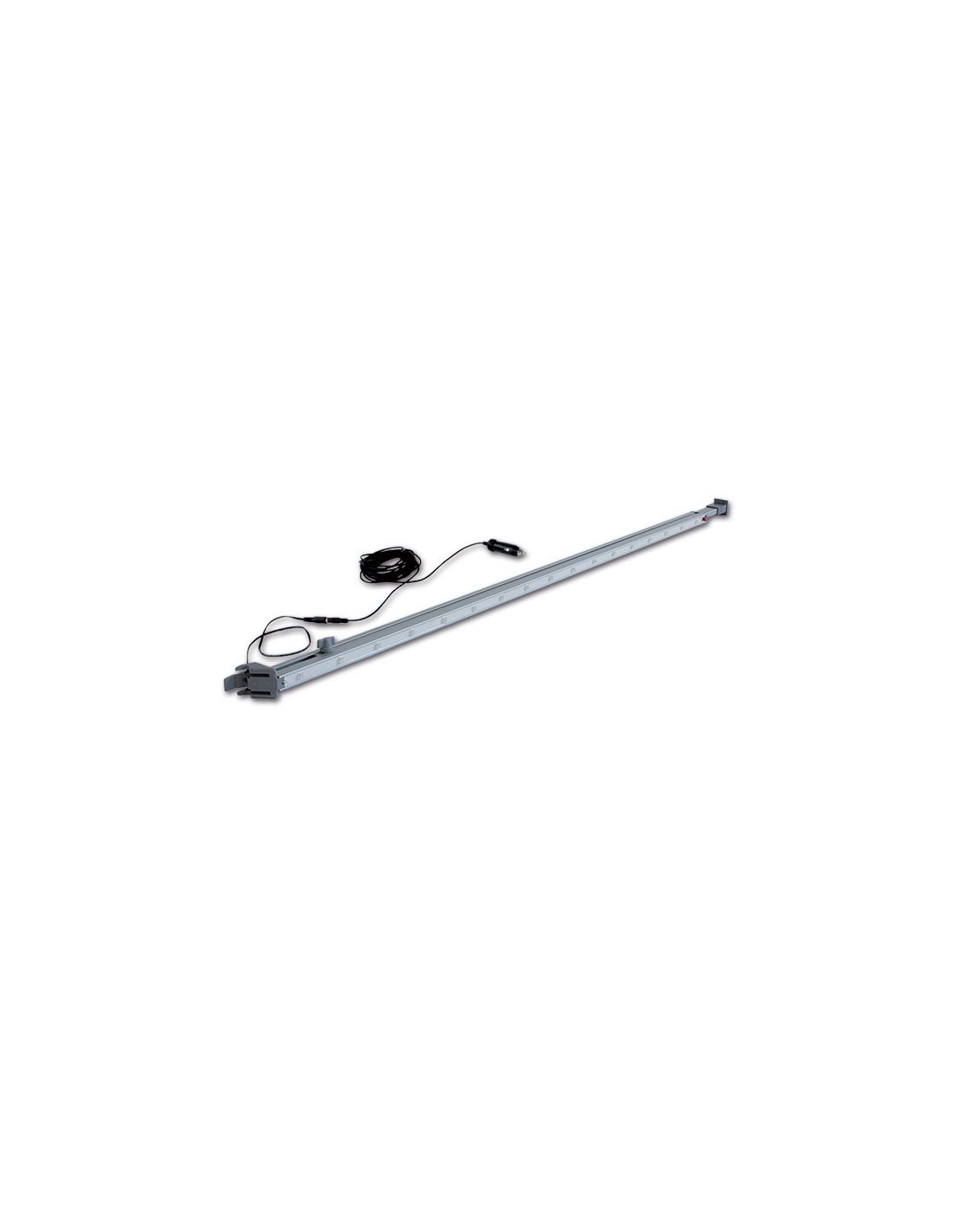

RAFTER LED FIAMMA 12 V telescopic with built-in 36 LED lights - 98655-850

For cassette awnings.

12 V power supply
Dimensions: Min length 142 cm, Max length 265 cm
Weight 1.6 kg
Cool White 6500K
Conical angle 120°
Lm/mt 792
36 LEDs
3.6 W / 0.30 A bar

Supplied complete with hooks to be installed in the F45s and F45L awning that incorporate the electrical connections; just put the rafter down and the LEd lights up.

Constructed of solid anodized aluminum profile and with integrated switch for easy on and off.

The LEDs are 25 mA with powerful white light, do not heat, are insulated for outdoor use, consume very little and illuminate under the awning.

The RAFTYER LED can be placed in multiple positions and more than one can be installed.

As an alternative to the electrical connection to the camper system, which requires drilling the vehicle, a 5 m power cable with a plug for connection to the cigarette lighter socket can be supplied.

NOTE: for F65s and F65L the optional kit 98655-877 FIAMMA is available

Description
Product Details

Supplied complete with hooks to be installed in the F45s and F45L awning which incorporate the electrical connections; just place the rafter and the LEDs light up.

Constructed in solid anodized aluminum profile and with built-in switch for easy switching on and off.

The LEDs are 25 mA with powerful white light, do not heat up, isolated for outdoor use, consume very little and light up under the awning.

The RAFTYER LED can be positioned in multiple positions and more than one can be installed.

As an alternative to the electrical connection to the camper system, which requires the vehicle to be drilled, the 5 m power cable with plug for connection to the cigarette lighter socket can be supplied.

NOTE: the optional kit 98655-877 FIAMMA is available for F65s and F65L

Reference 95986

In stock 9 Items
