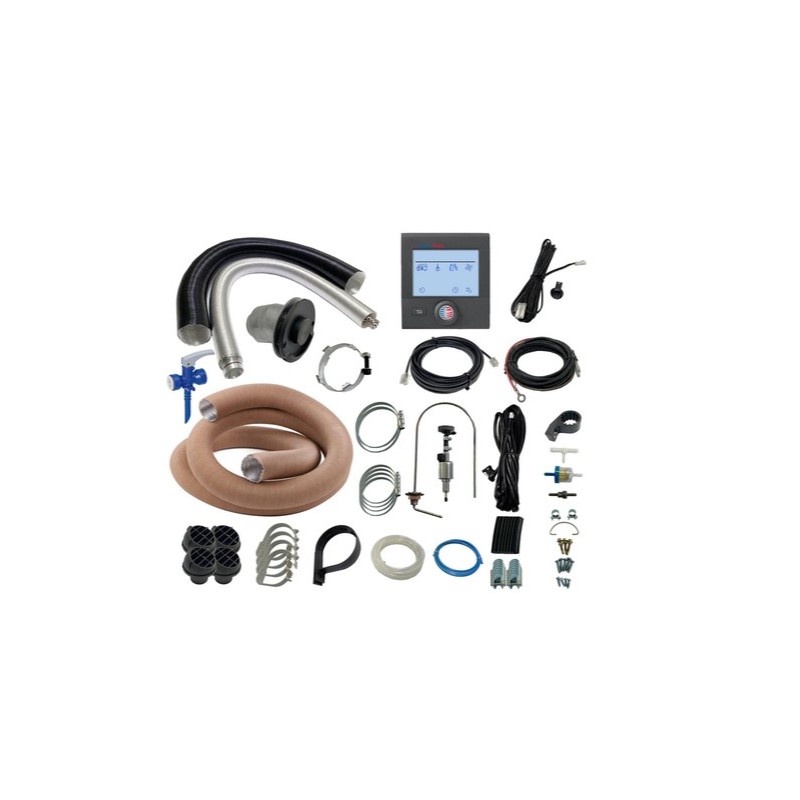

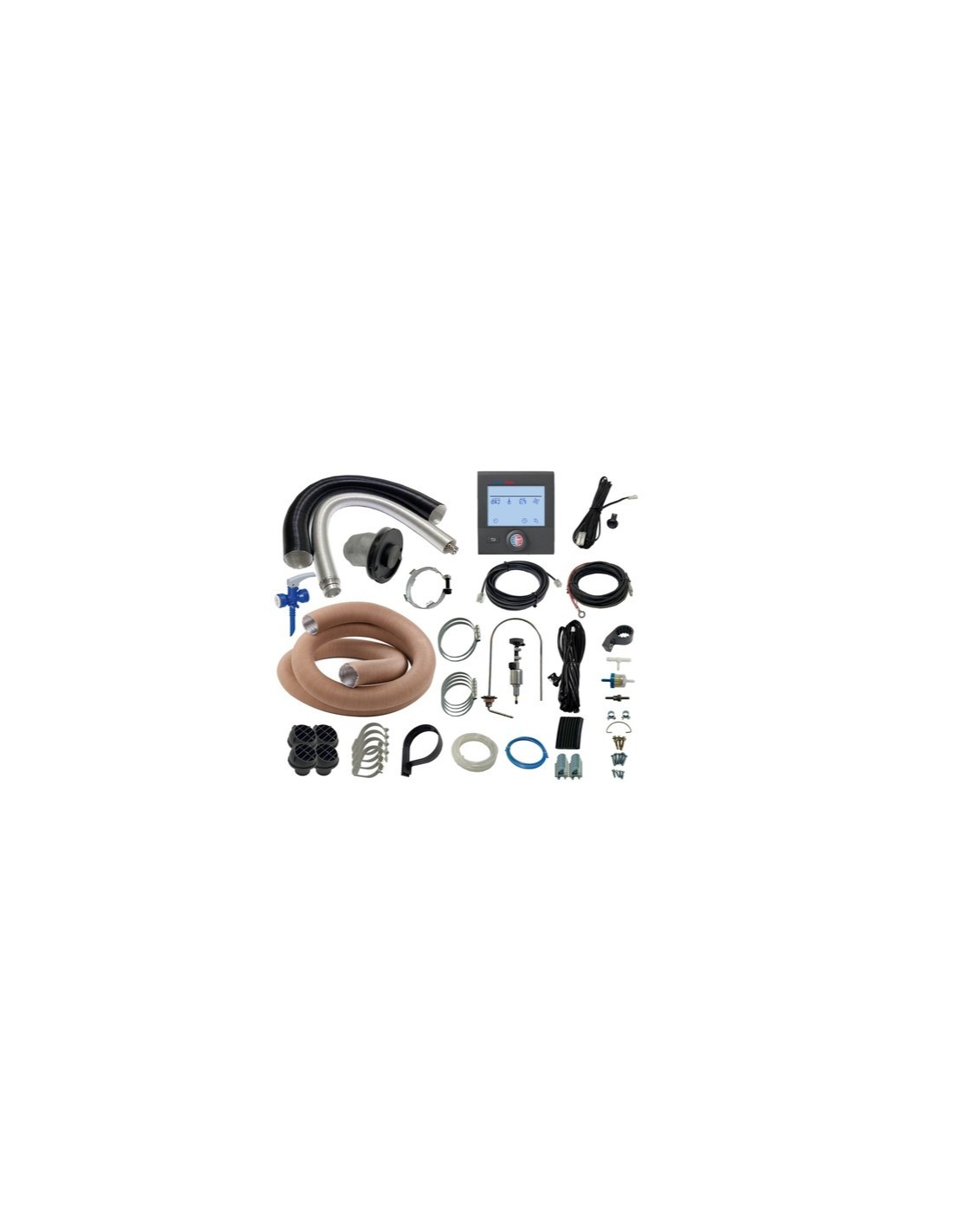

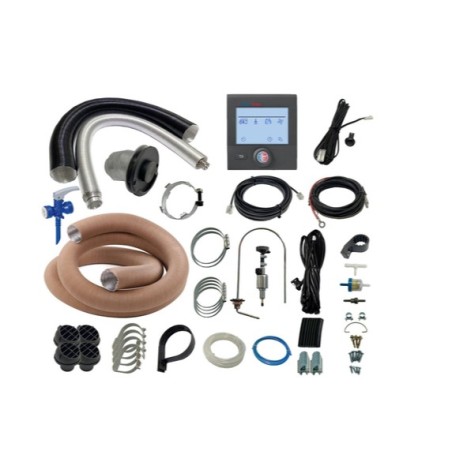

AQUA-HOT GEN1 D4 E COMBINED HEATING SYSTEM – 4kW DIESEL+220V+ ACCESSORIES

AQUA-HOT GEN1 D4 E COMBINED HEATING SYSTEM – 4kW DIESEL+220V+ ACCESSORIES

Electric mode offers the possibility of saving fuel while connected to the 230 V mains.

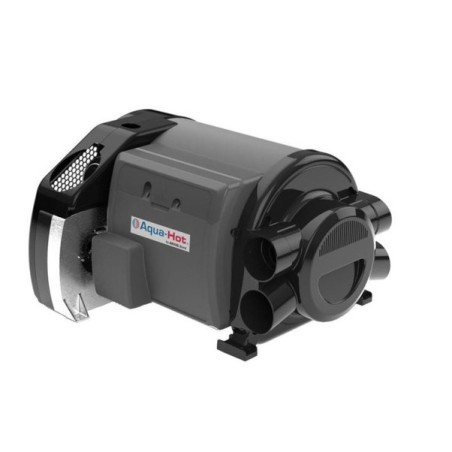

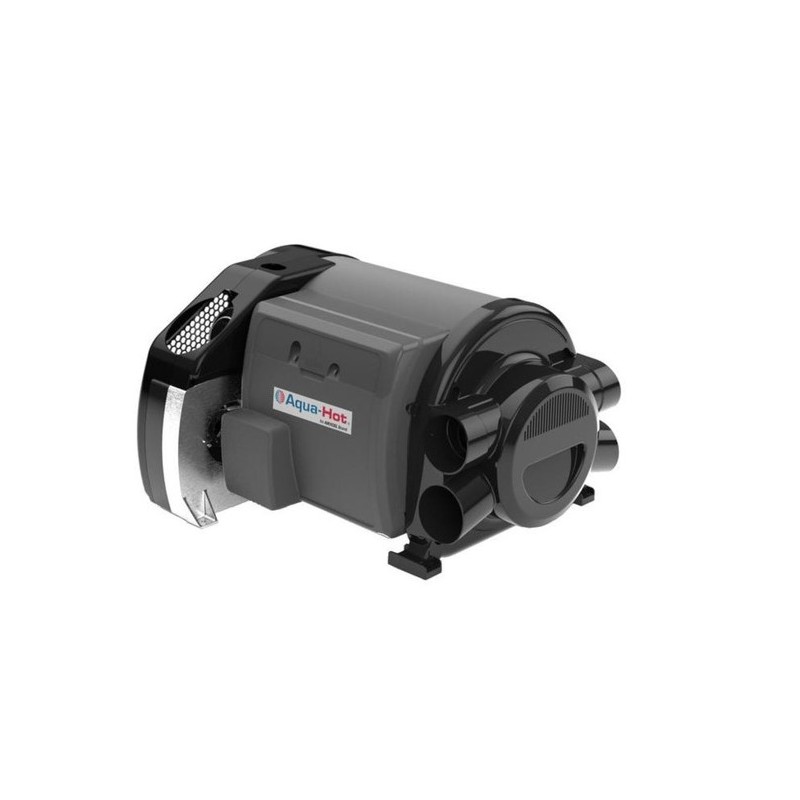

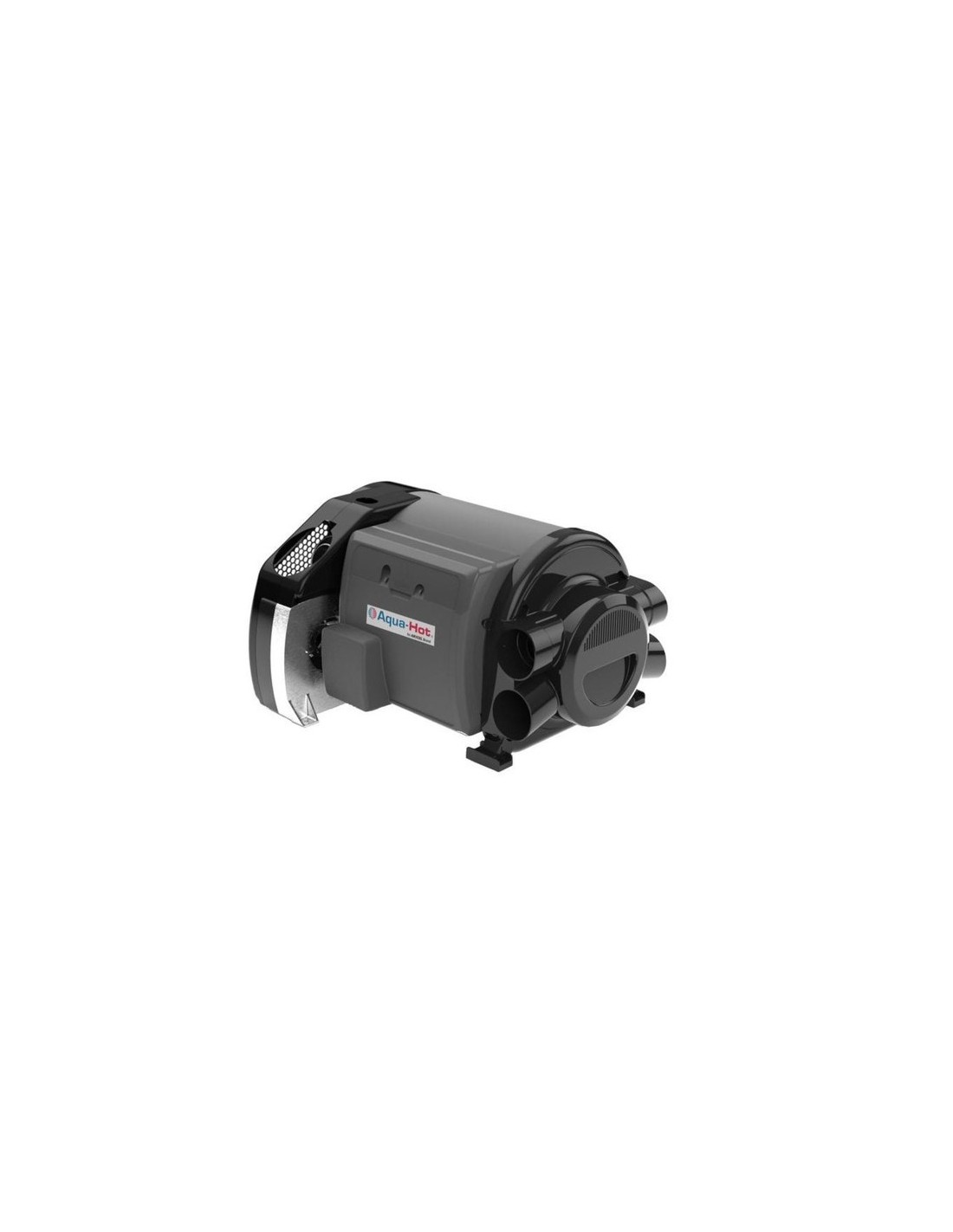

The Aqua-Hot Gen1 D4 E is a compact forced-air heating system with integrated 10-litre water heater in an all-in-one unit, powered by Diesel and integrated electric mode, specifically designed for RV and Special vehicles.

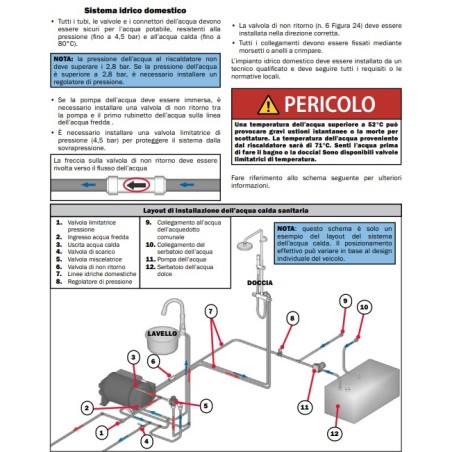

This product can heat water independently of the boiler, allowing you to be comfortable all year round and always be ready for a hot shower.

Electric mode gives you the chance to save fuel while plugged into the 230V mains socket.

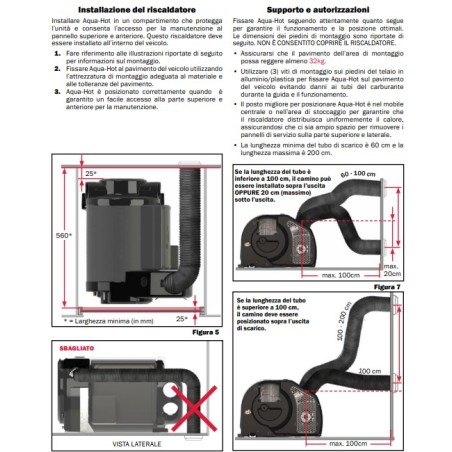

A system designed specifically for new RV systems, but at the same time ideal for replacing similar systems because they are perfectly compatible in terms of size/dimensions, fixing and unloading.

Attention to detail in the protection/ventilation grilles guarantee excellent air diffusion and greater silence of the entire system.

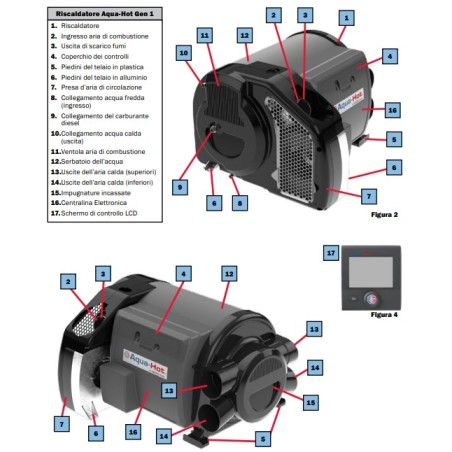

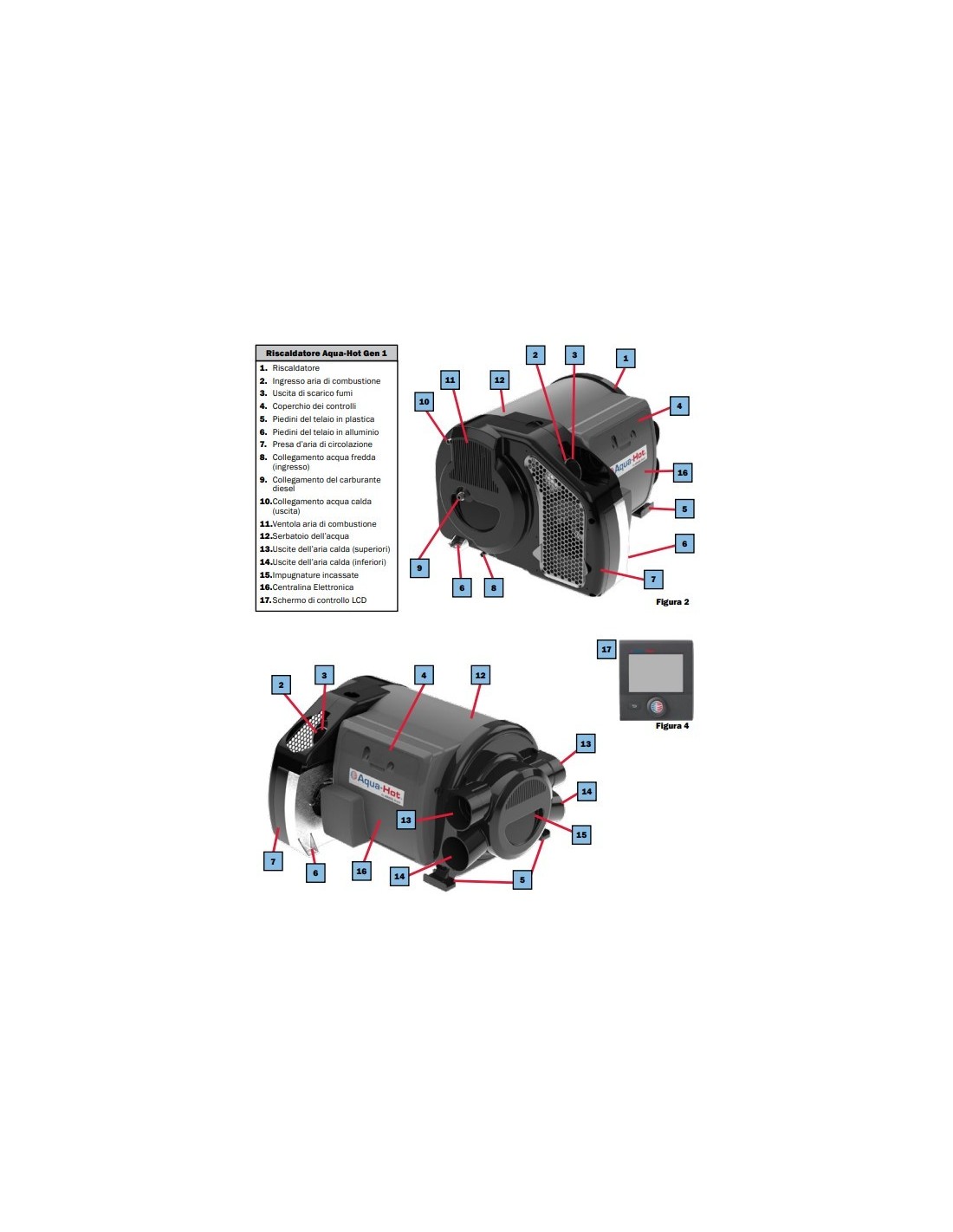

The warm air flows through four outlets, where it is efficiently distributed to ensure a comfortable climate.

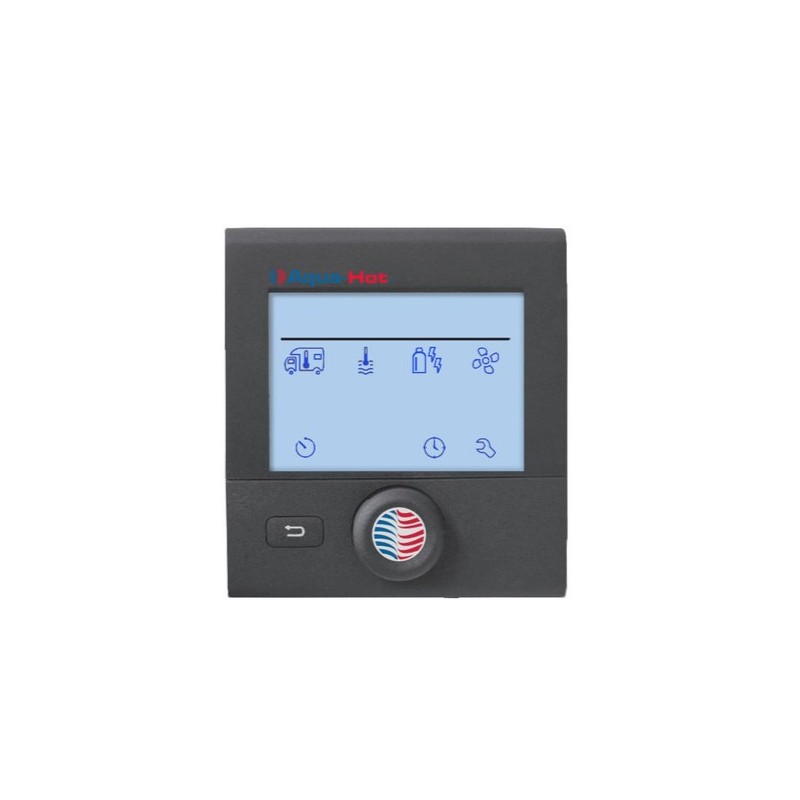

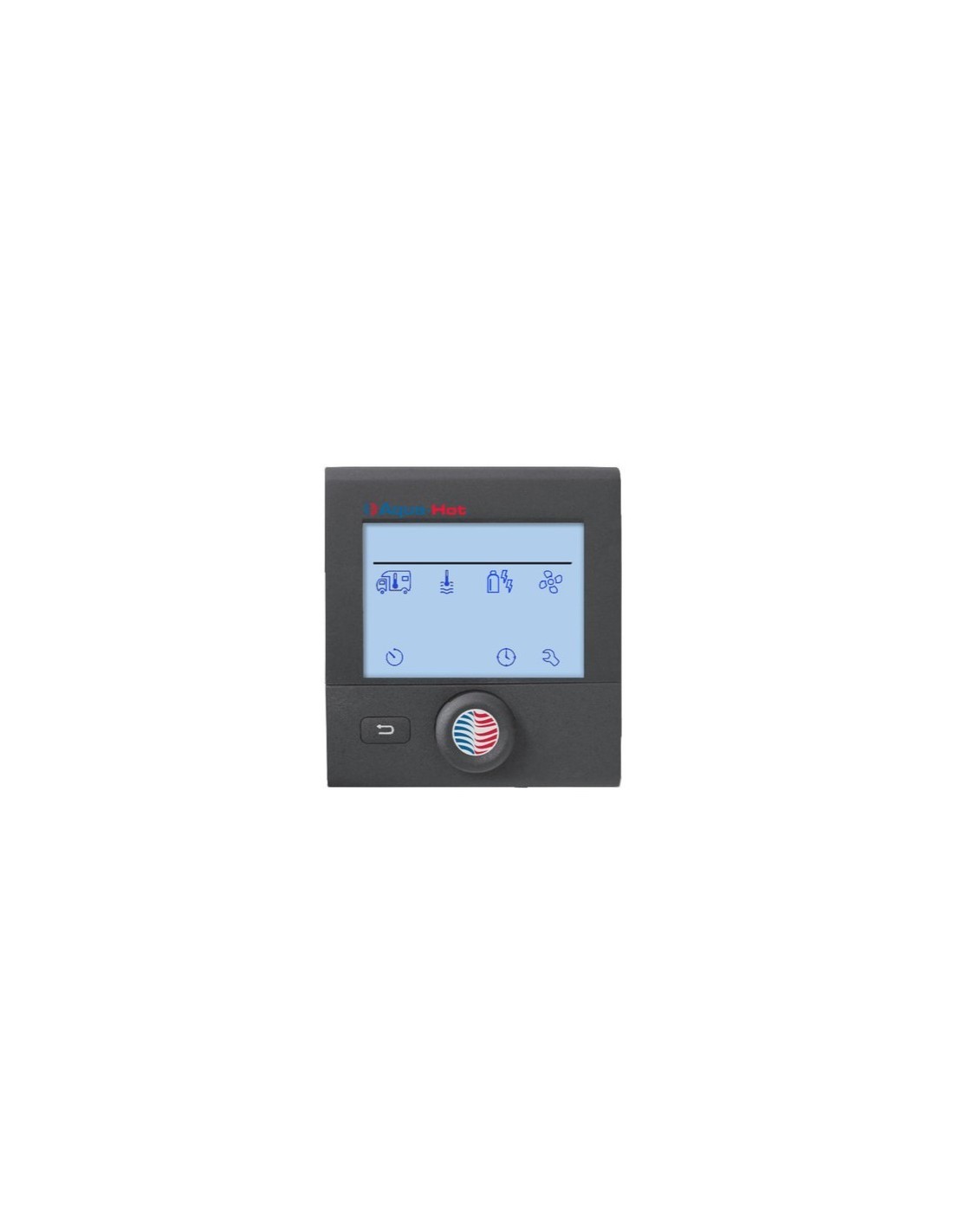

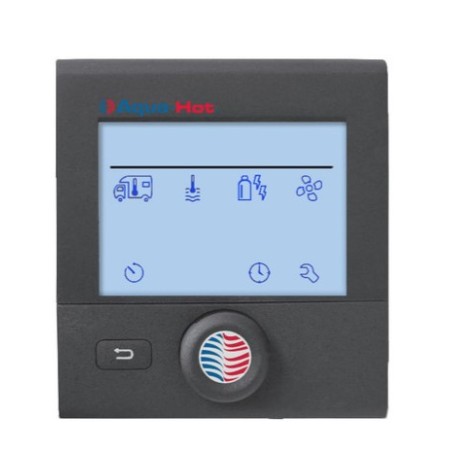

You can also conveniently control the device by easily integrating it into your RV-C's general control panel via the open source RV-C intelligence.

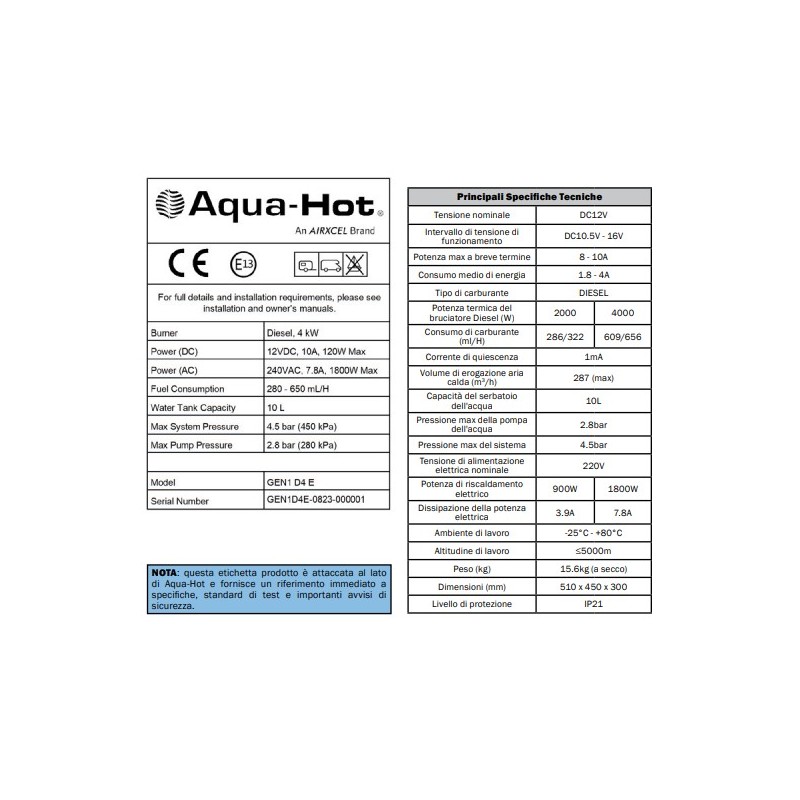

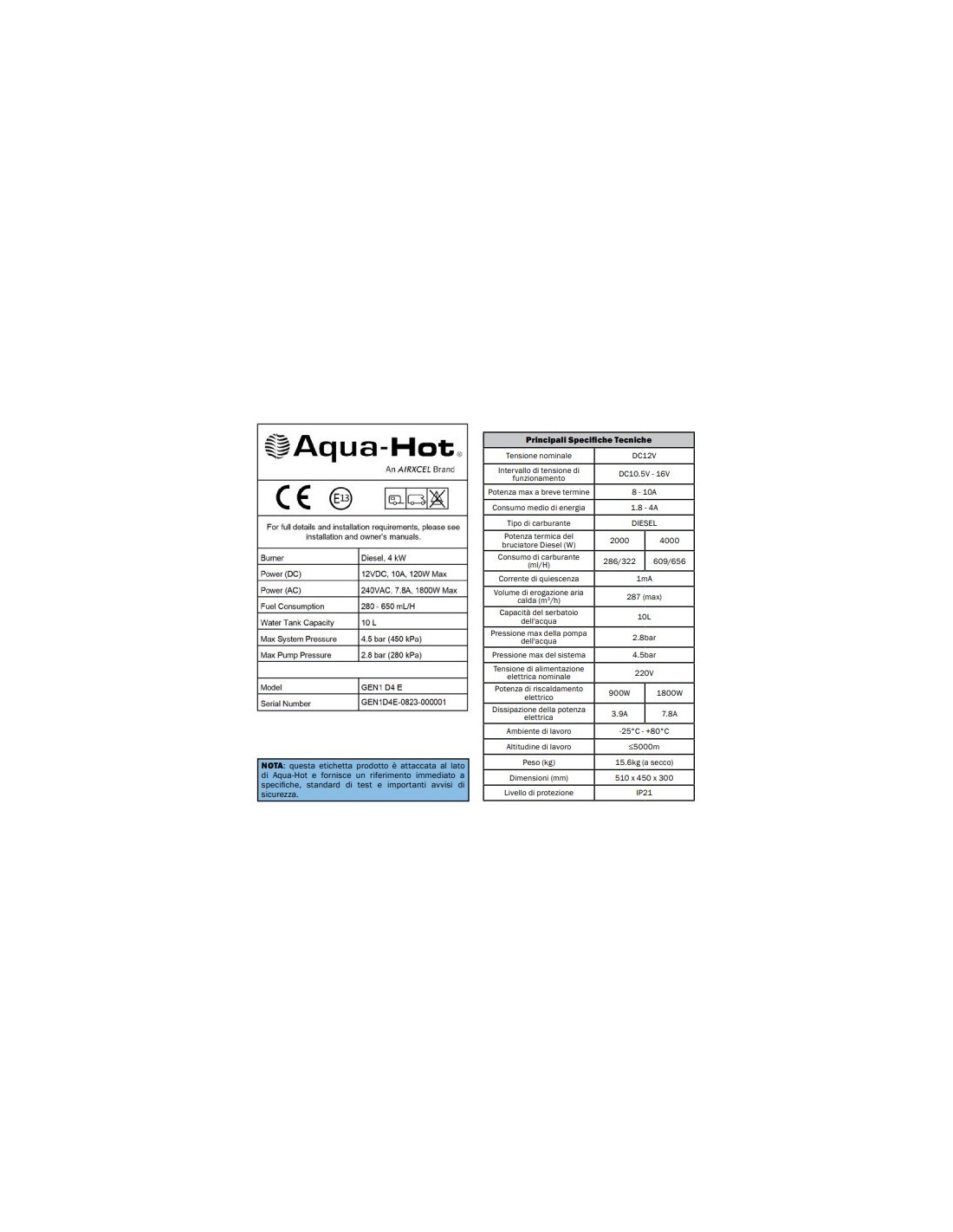

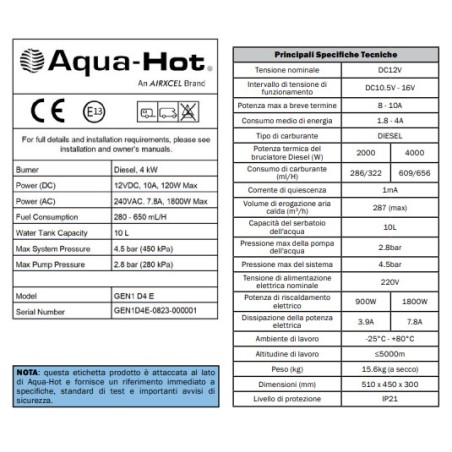

Additional specifications:

Type:            Diesel/Electric Heating

Volume           10 L

Power         supply 12 V DC - 230 V AC

Nominal     heat output 4 A

Power consumption   900/1800 W

Quiescent current in A           1.8 A

Efficiency        91%

System pressure max. 4.5 bar

Rated     heat output 2000 W / 4000 W

Rated heat output in electric      mode 900 W / 1800 W

Hot   water options 40°C - 60°C

Ready for high altitudes: up to 5,000 m

Fuel consumption 280 – 650 mL/h

Air flow  rate 287 m³/h

Cutting pressure (bar)         2.8 bar

Dimensions (L x W x H)          510 x 450 x 300 mm

Case color  Black

Weight    15.6 kg
