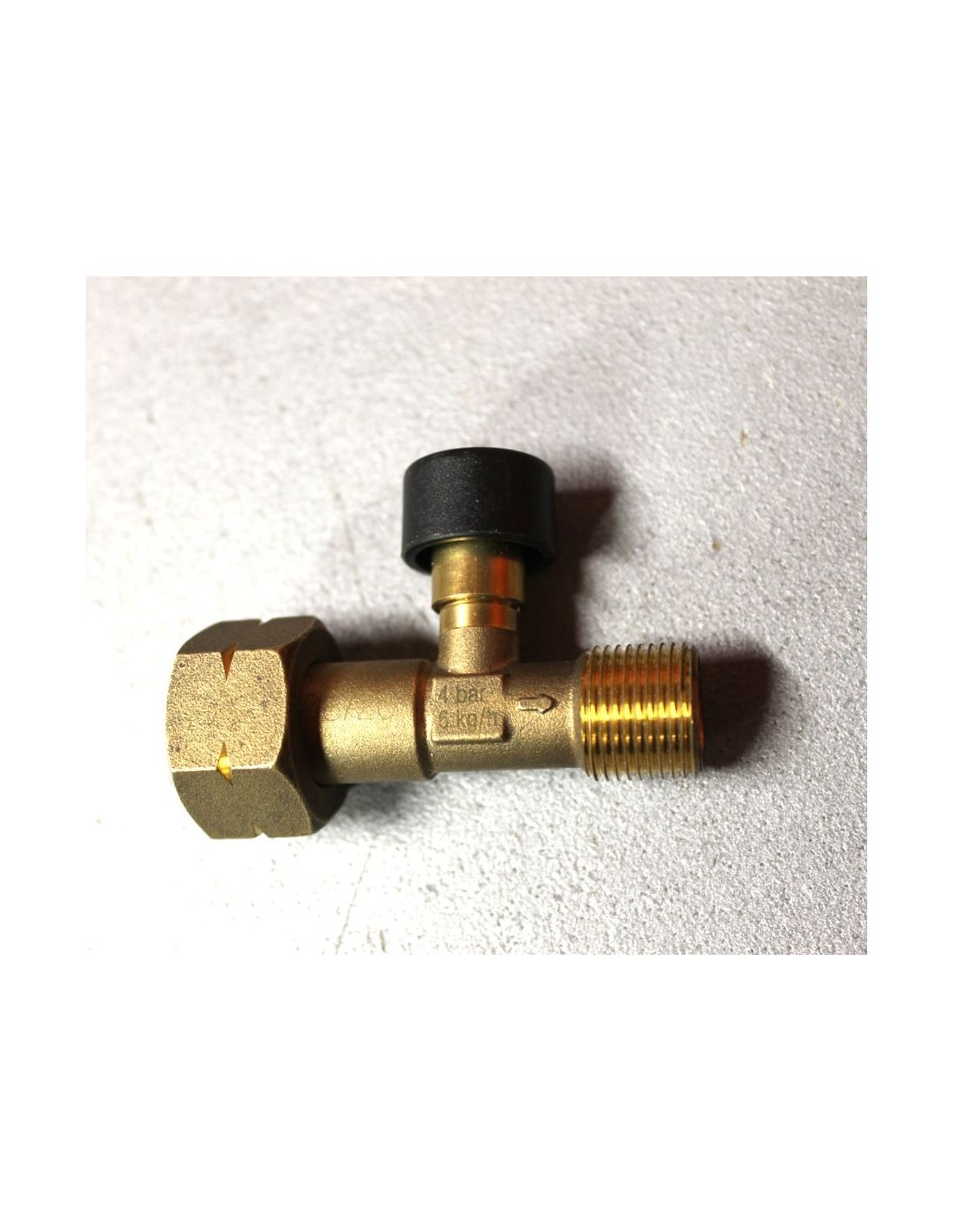

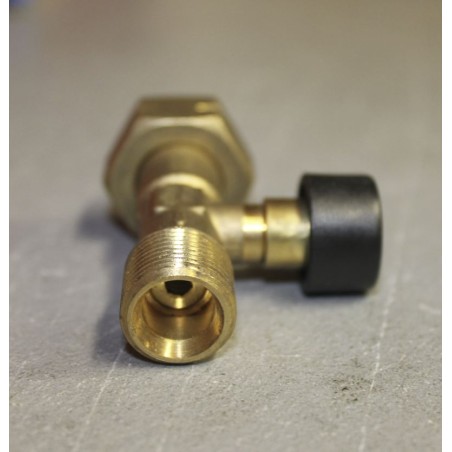

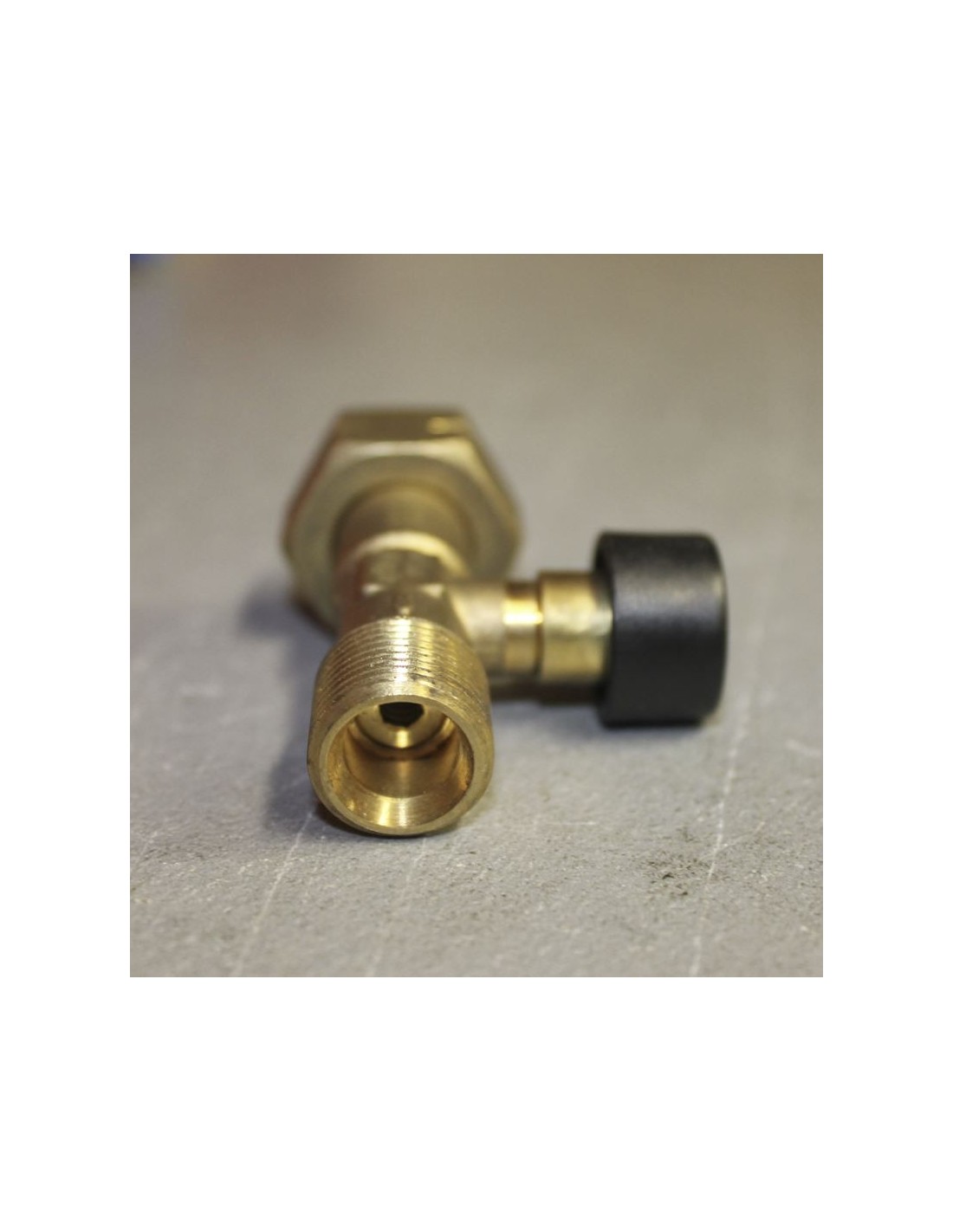

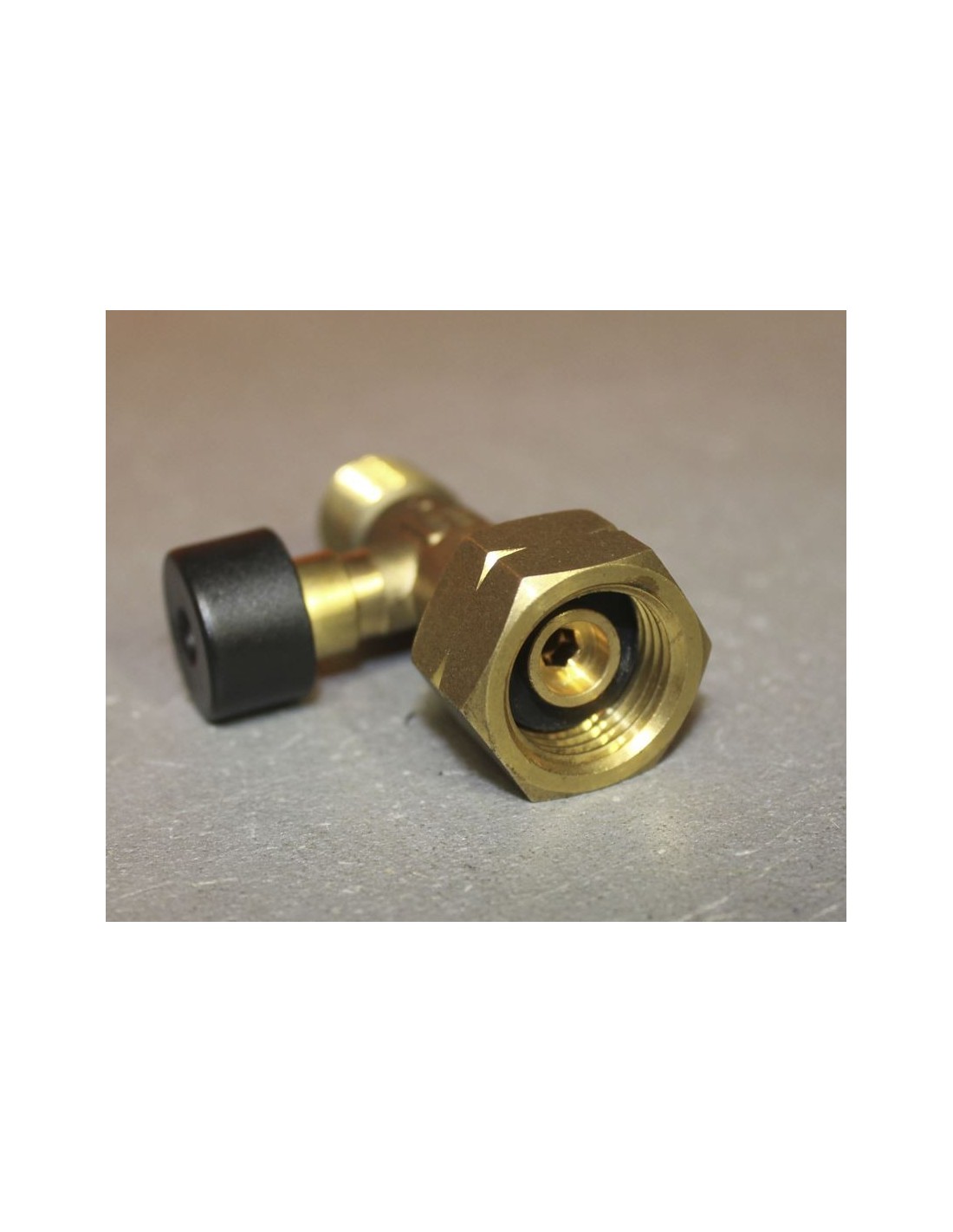

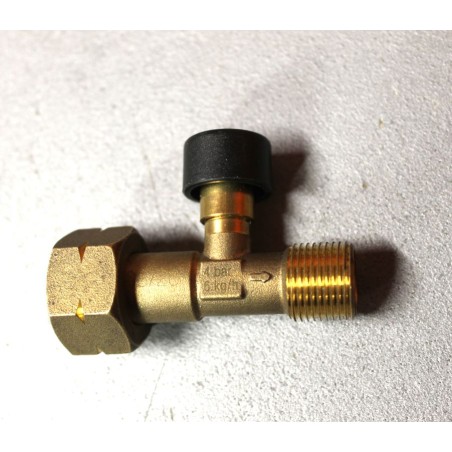

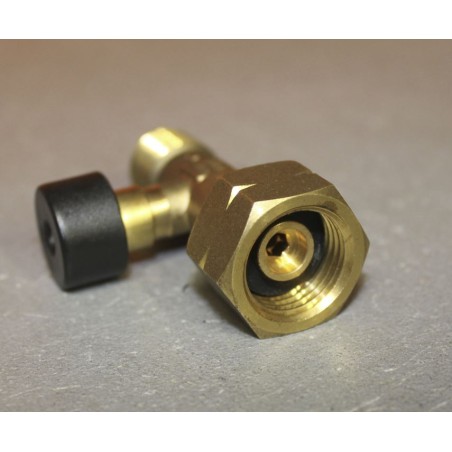

Safety valve against gas pipe breakage with ITALIA connection G.1 W20 x 1/14 LH x 3/8" LH

Safety valve against gas pipe breakage - ITALIA inlet connection G.1 W20 x 1/14 LH outlet 3/8" LH

• European production.
• Brass body material.
• 4 bars
• 6 kg/h

The excess flow valve (EFV) automatically cuts off the gas flow as soon as the nominal pressure is exceeded by 10%.

The emergency stop valve for propane cylinders prevents the uncontrolled leakage of gas in the event of a hose rupture, preventing the gas from igniting in the event of an accident.

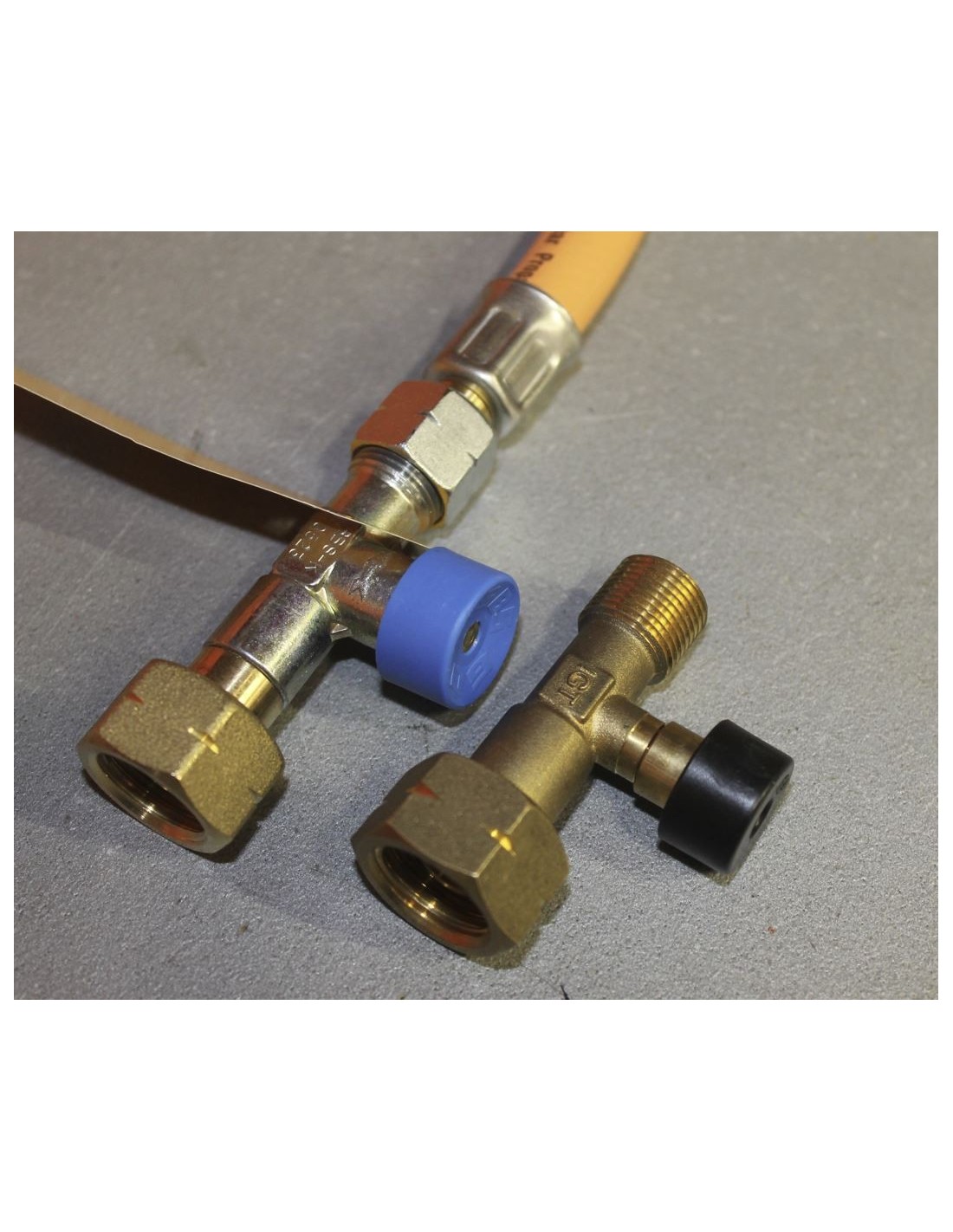

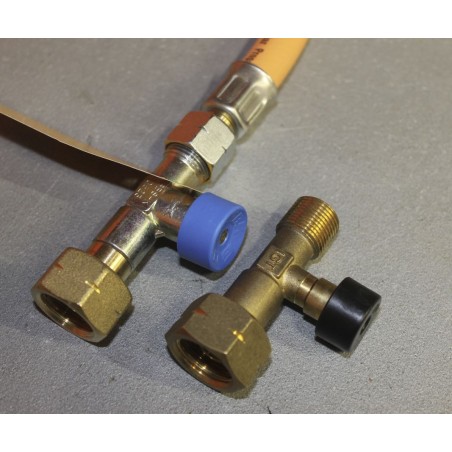

The valve can be replaced with the one mounted on GOK or TRUMA high pressure pipes.

The stop device is screwed directly onto the gas cylinder intake connection. The LPG regulator or a high pressure hose is screwed into the outlet of the shutoff device.

Be sure to seal and lock the connection thread after replacement.

The overflow valve is versatile and increases safety in gas operation; applicable in:

• craftsmanship
• free time (barbecues, radiant stoves, etc.)
• gas installations in campers, caravans, boats
• commercial gas installations (food trucks, catering)
