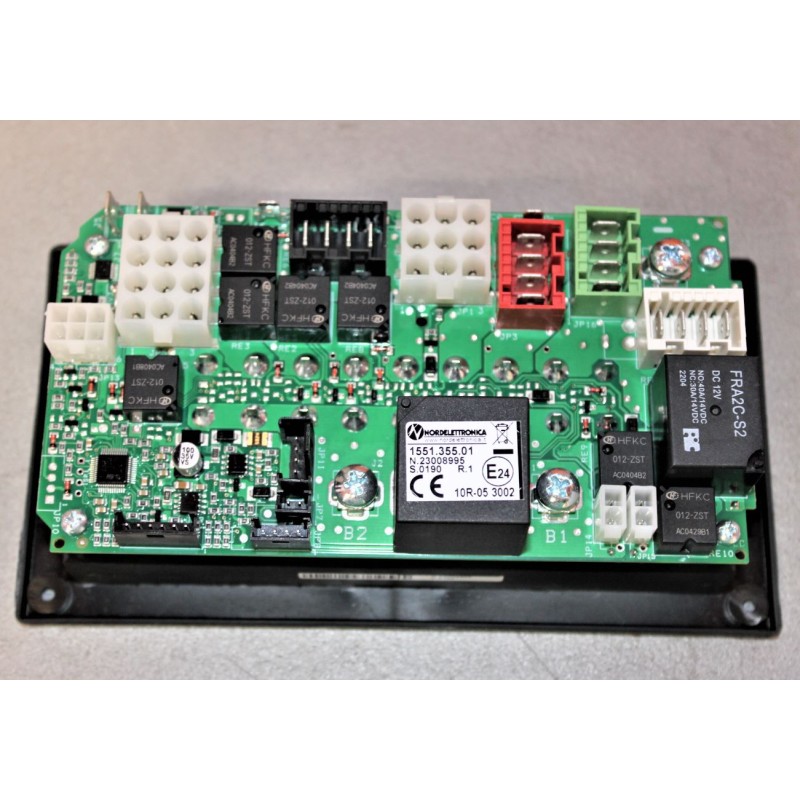

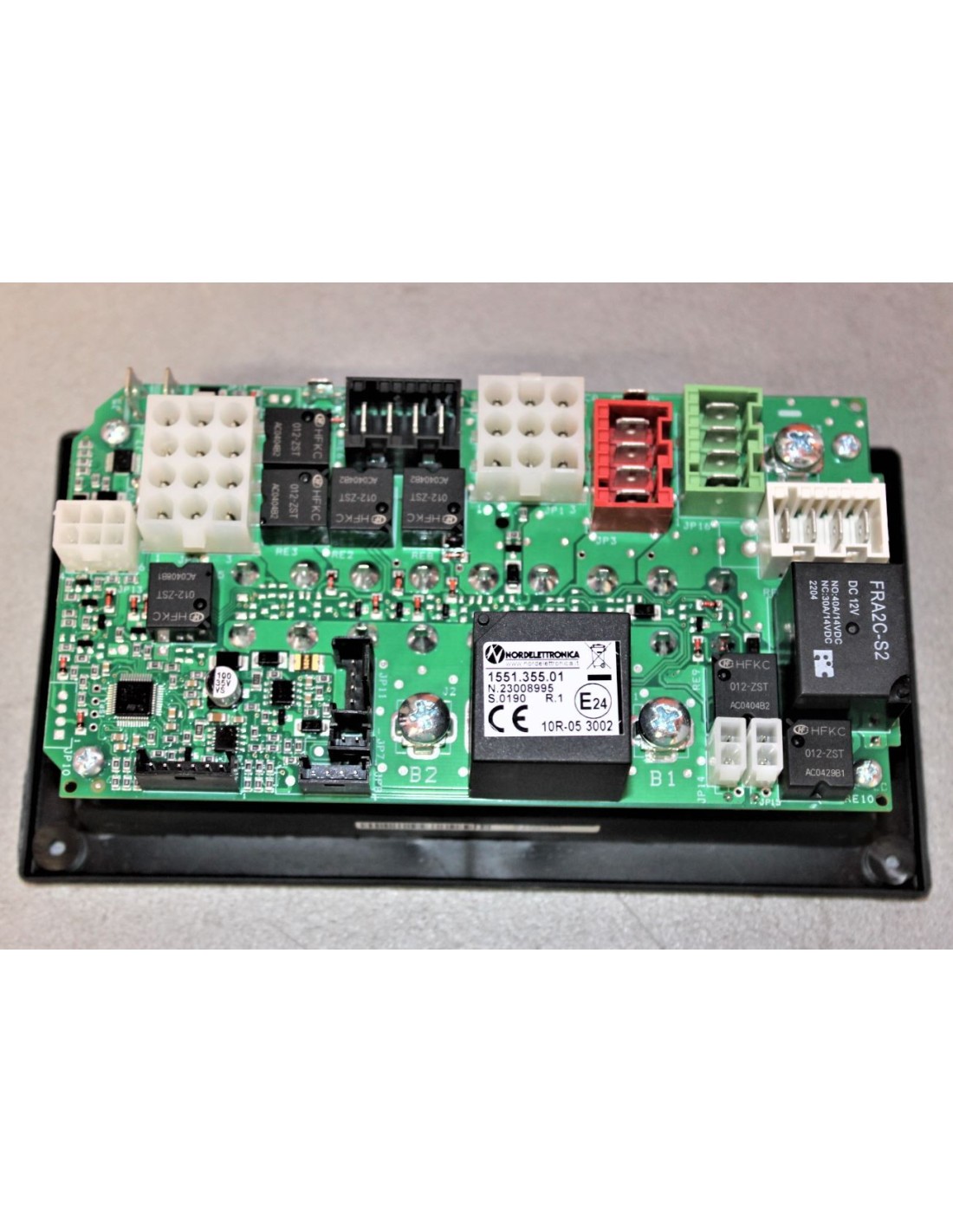

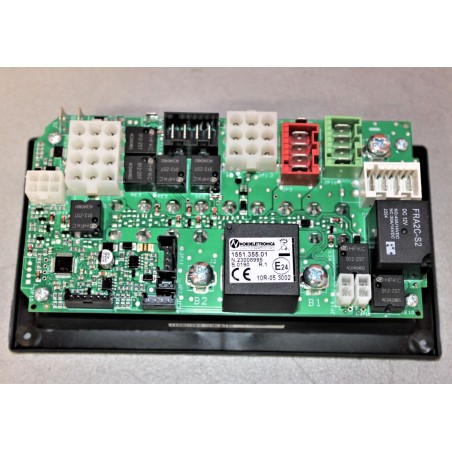

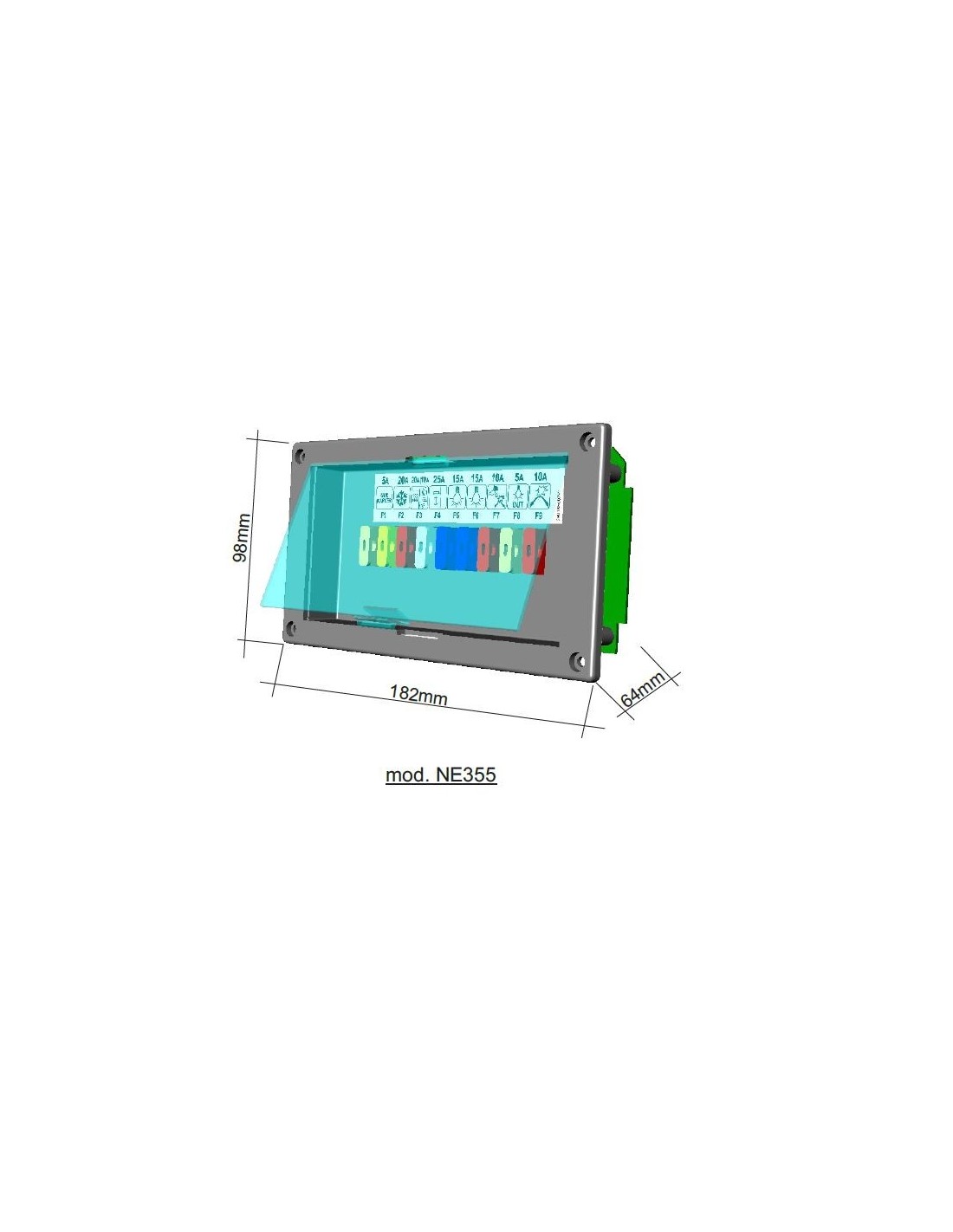

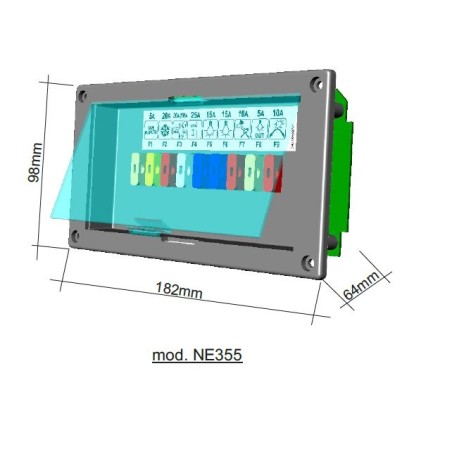

1551.355.01 STANDARD - FUSE HOLDER SWITCH NE355_S
€169.00
VAT included
Rif: 15899
1551.355.01 STANDARD - NE355_S FUSE HOLDER also mounted on SEA
Replaces the old NE185. ATTENTION. In some cases it is necessary to adapt the wiring with kit 15869
This fuse holder shunt differs from the NE355_T TRIGANO for some different functions such as level reading and management of auxiliary outputs and lack of fuse for connection to the folding bed.
In the attached documents you will find the use and installation manual.

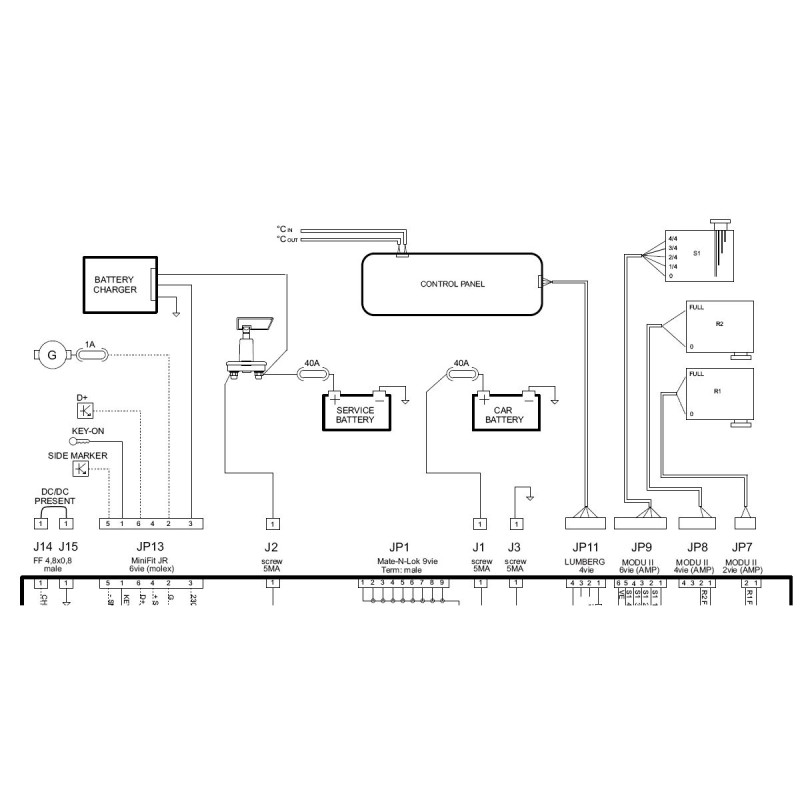

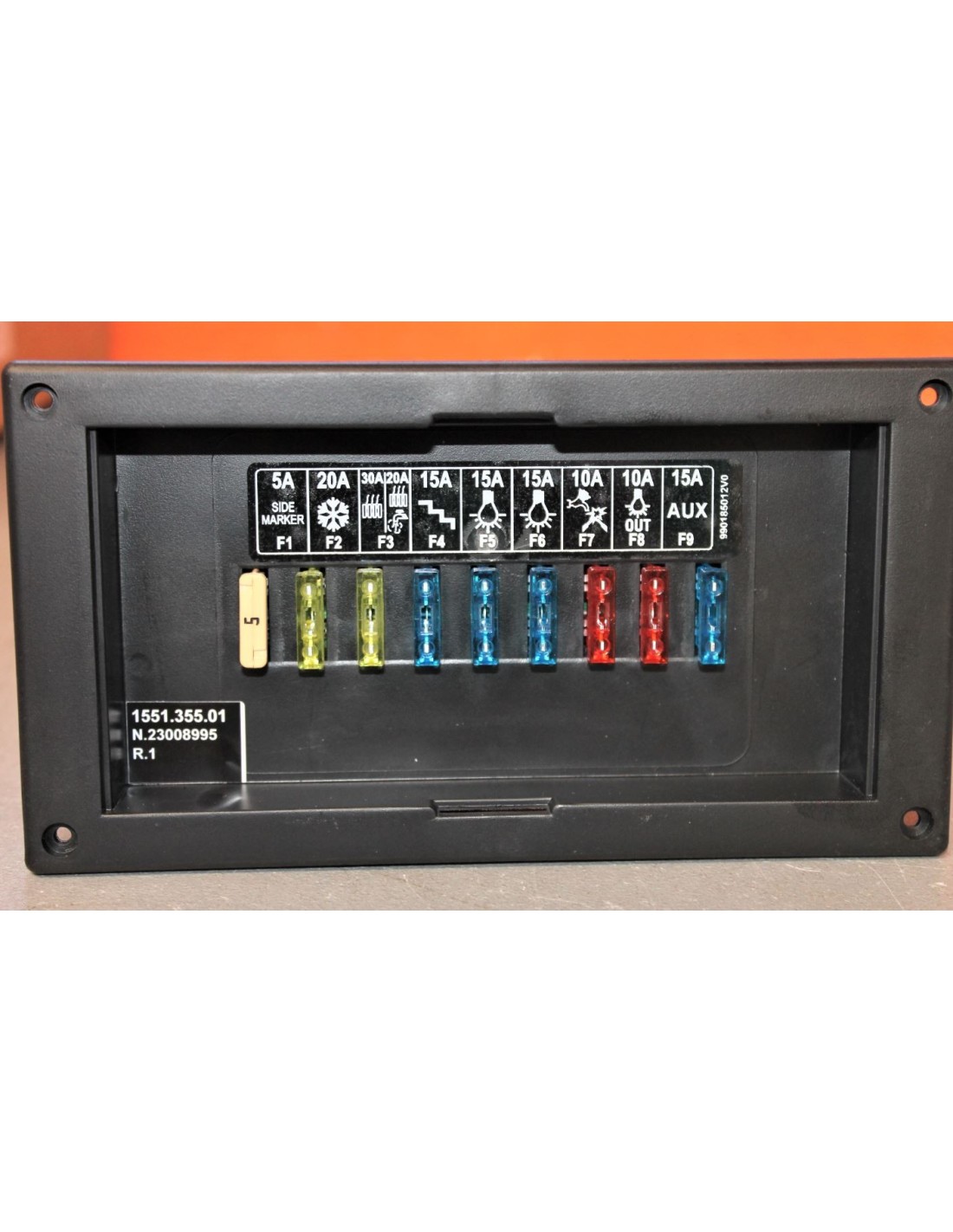

Connected utilities and fuses:
- F1: 5A fuse connected to the car battery to power the side marker lights.
- F2: 20A fuse connected to the services battery to power the fridge.
- F3: 30A/20A fuse connected directly to the services battery for WEBASTO (30A) or AUX (20A) power supply.
- F4: 15A fuse connected directly to the services battery for step power
- F5: 15A fuse connected to the main light switch to power the Light_1 unit
- F6: 15A fuse connected to the main light switch to power the Luci_2 group.
- F7: 10A fuse connected directly to the service battery for turning on the fridge, stove and to the pump switch for powering the water pump
- F8: 10A fuse connected directly to the services battery to power the courtesy lights and the external light switch
- F9: 15A fuse connected to AUX switch
