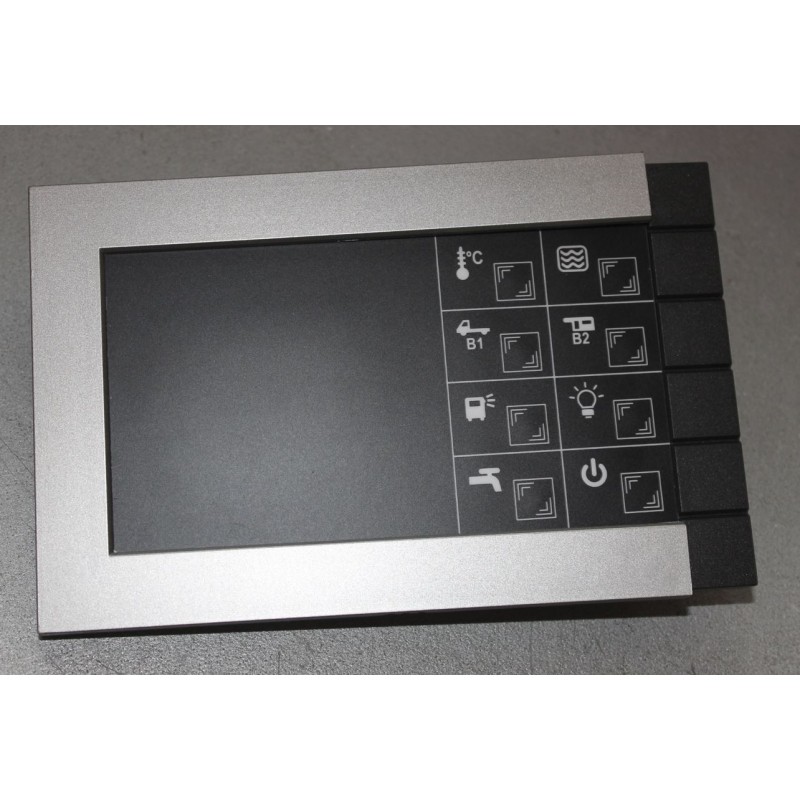

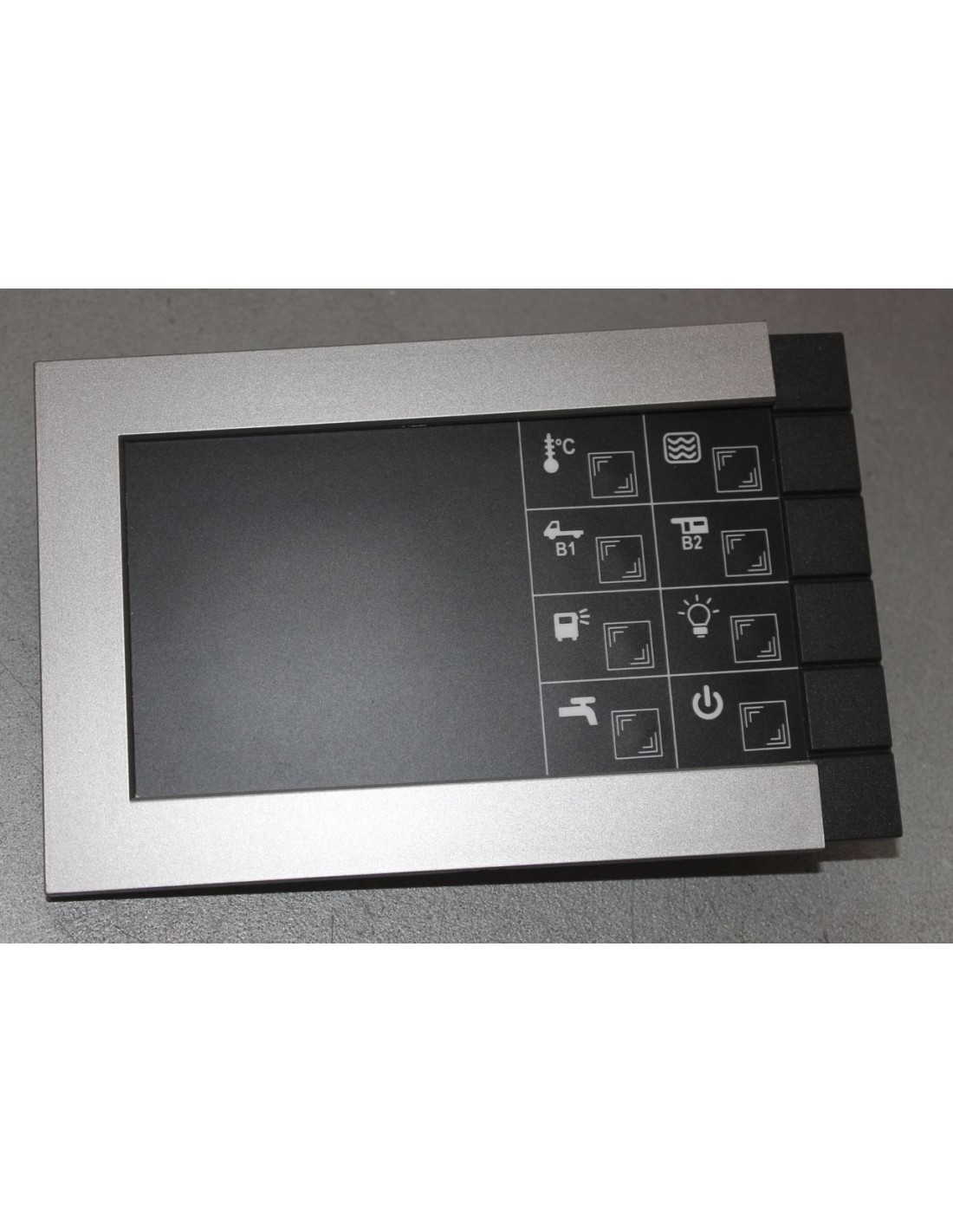

1350.268.03 NEW Display control unit with Nordelettronica frame

1350.268.03 NEW Display control unit with Nordelettronica frame

Replaces 1350.268.04 code 0H300000190CI.

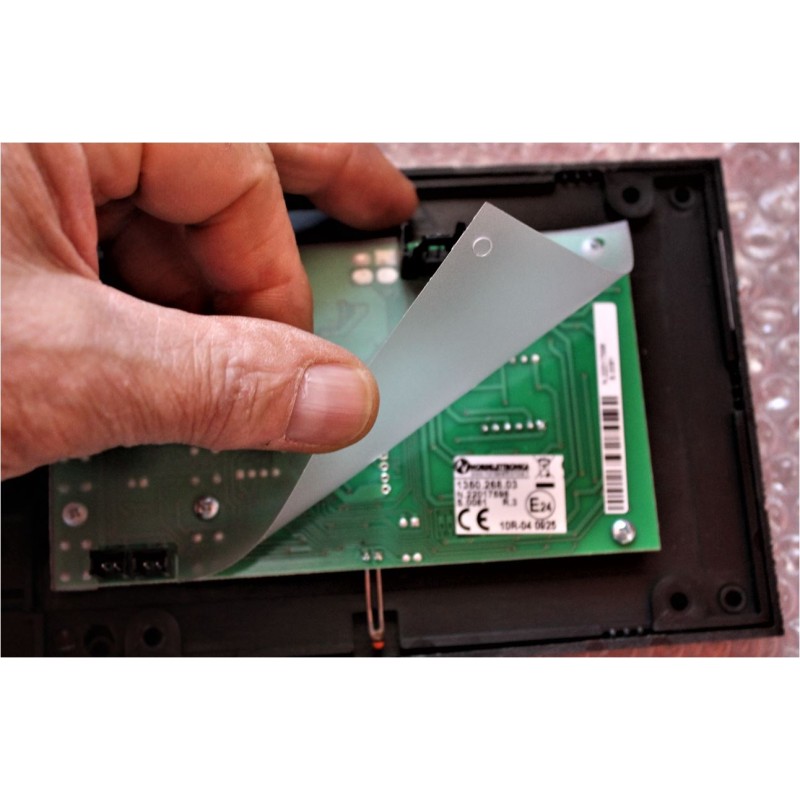

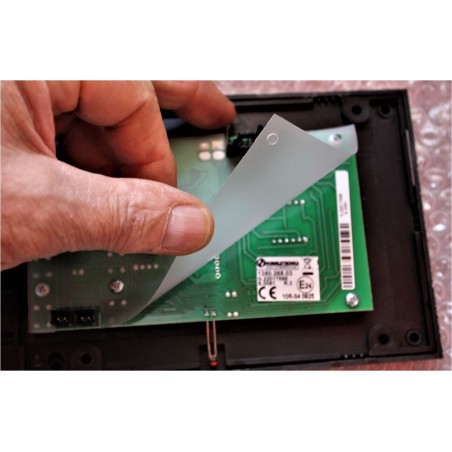

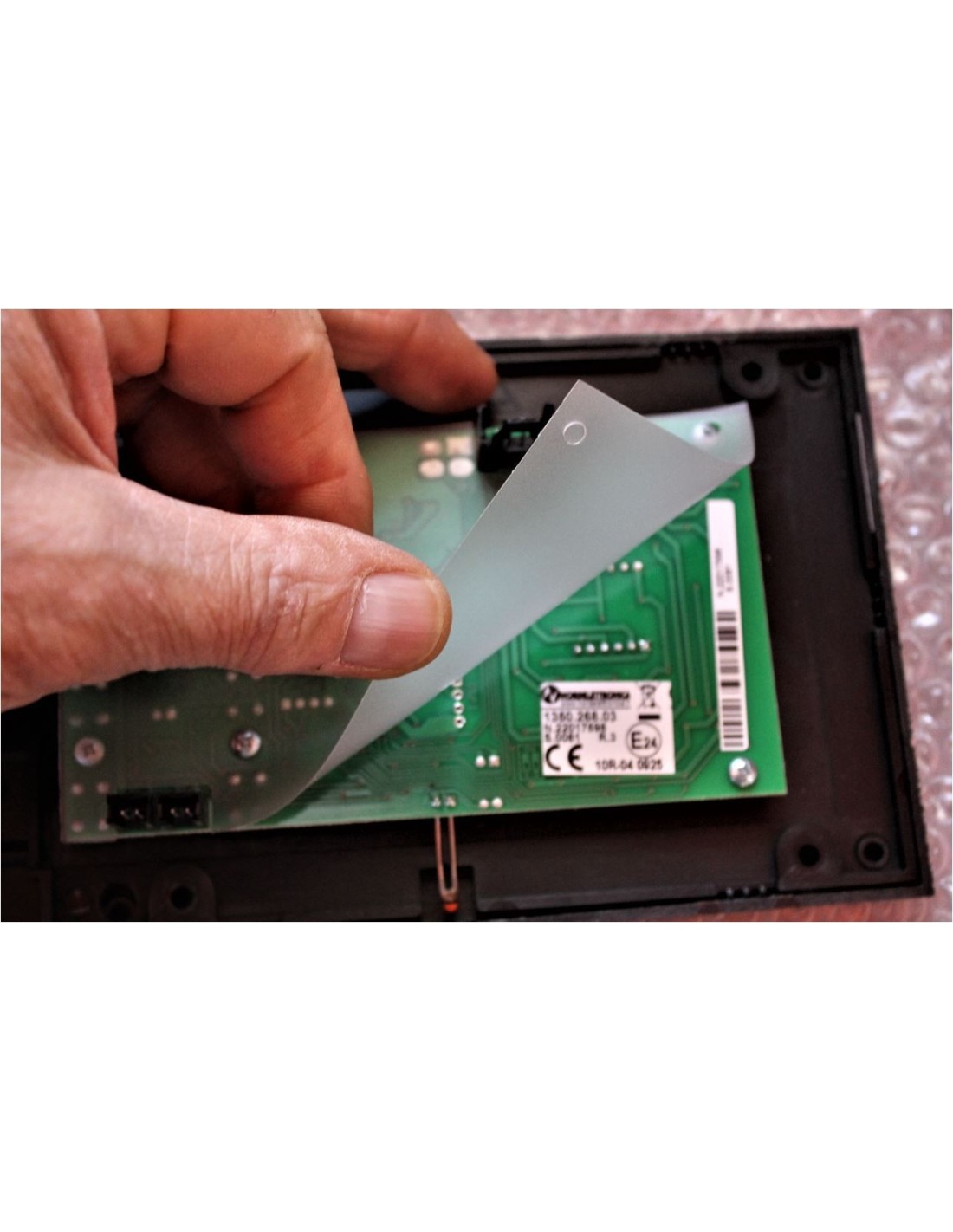

The two devices 1350.268.02 and 1350.268.03 are compatible with each other, differing only in the film

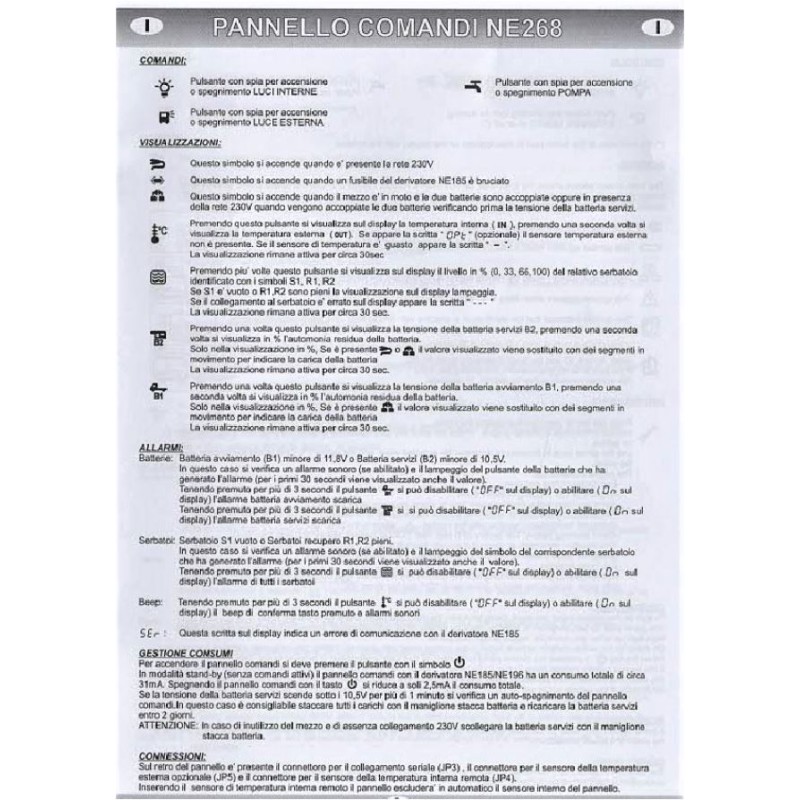

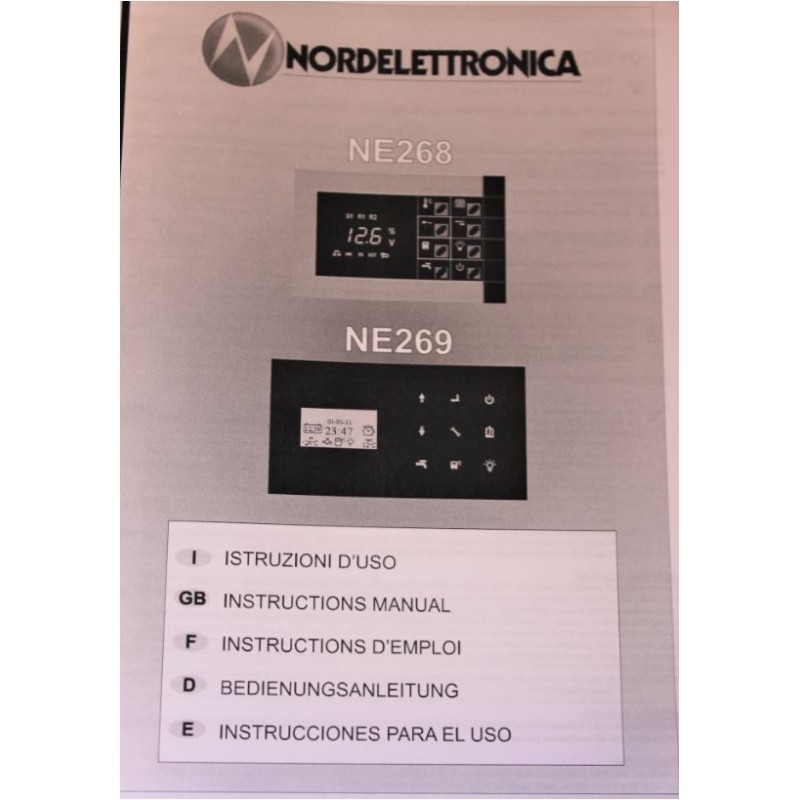

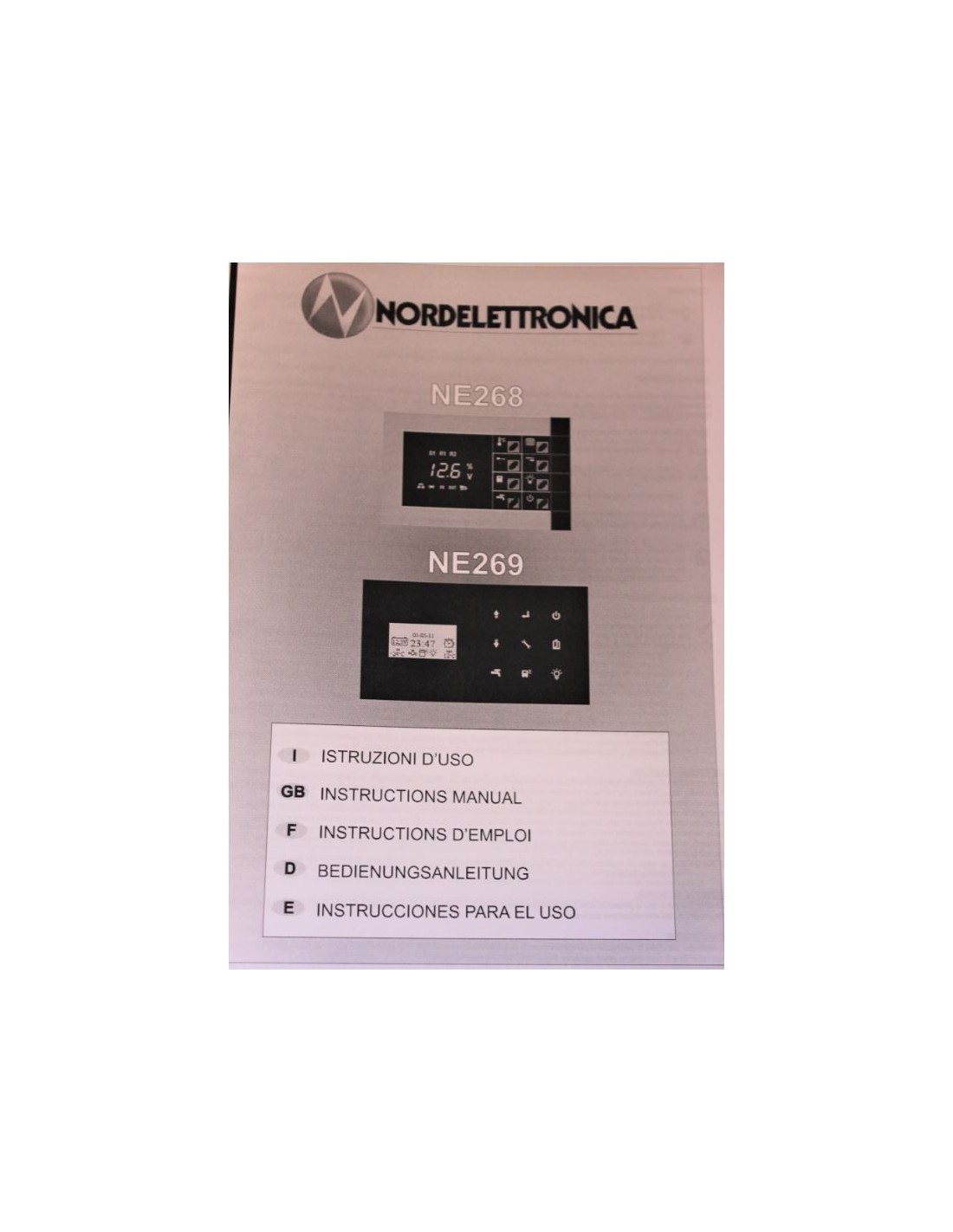

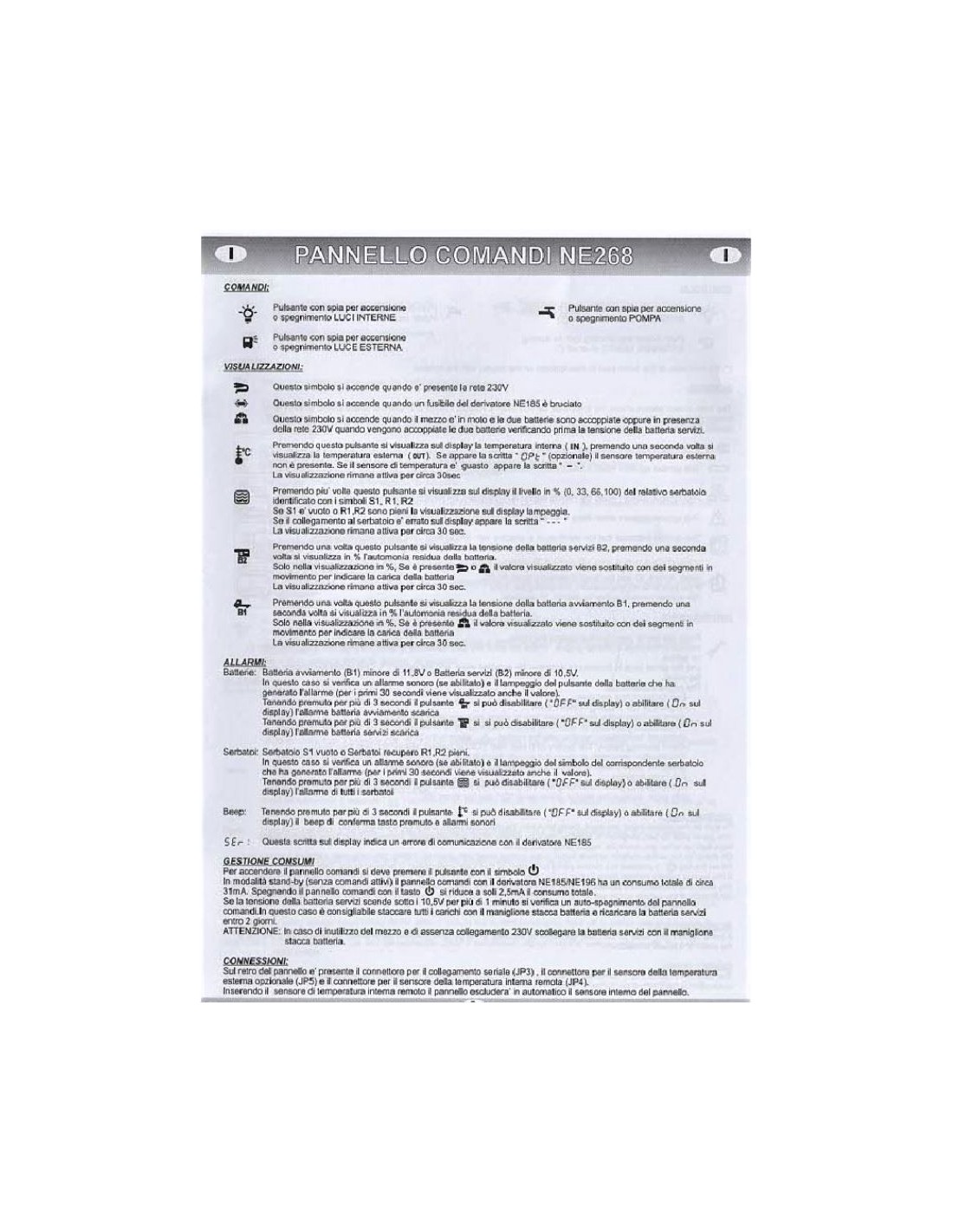

See the "attached documents" for the use and maintenance manual.

Controls:

• External light button
• Interior lights button
• Pump button

Views:

• 230V presence
• Blown fuse NE185
• Vehicle in motion and coupled batteries
• Temperature IN and OUT
• Water tank level in %
• Battery voltage B2 and remaining autonomy

Alarms

• Battery starter and services below the threshold
• Empty tank or full recovery tanks

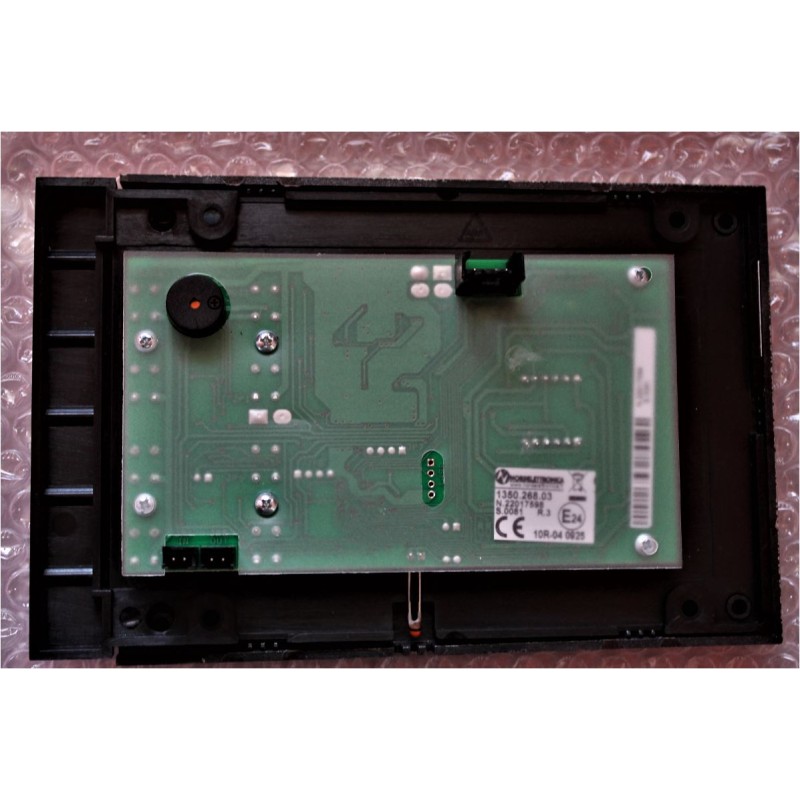

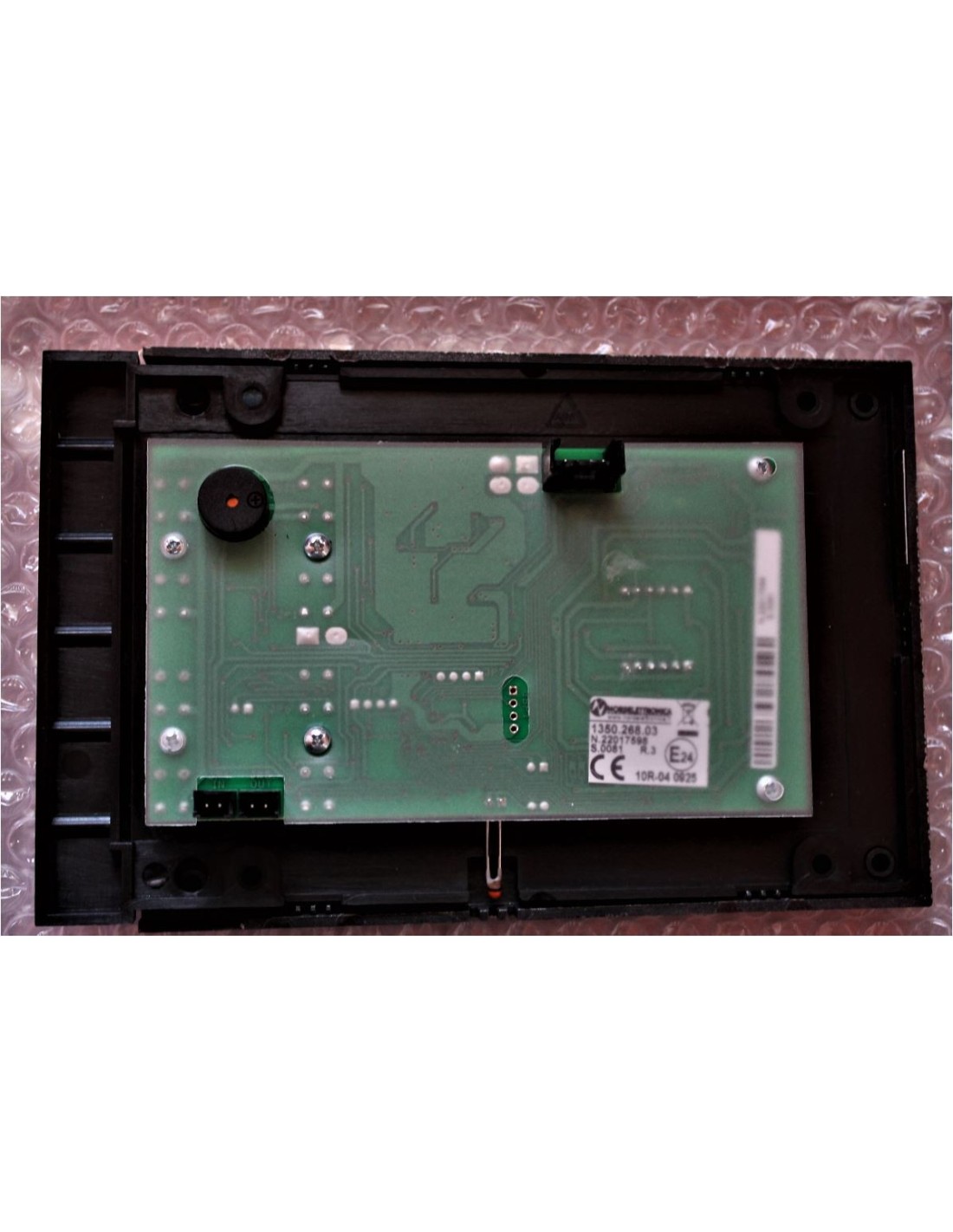

Connections

• JP3 serial
• JP5 outdoor temperature
• JP4 internal temperature
