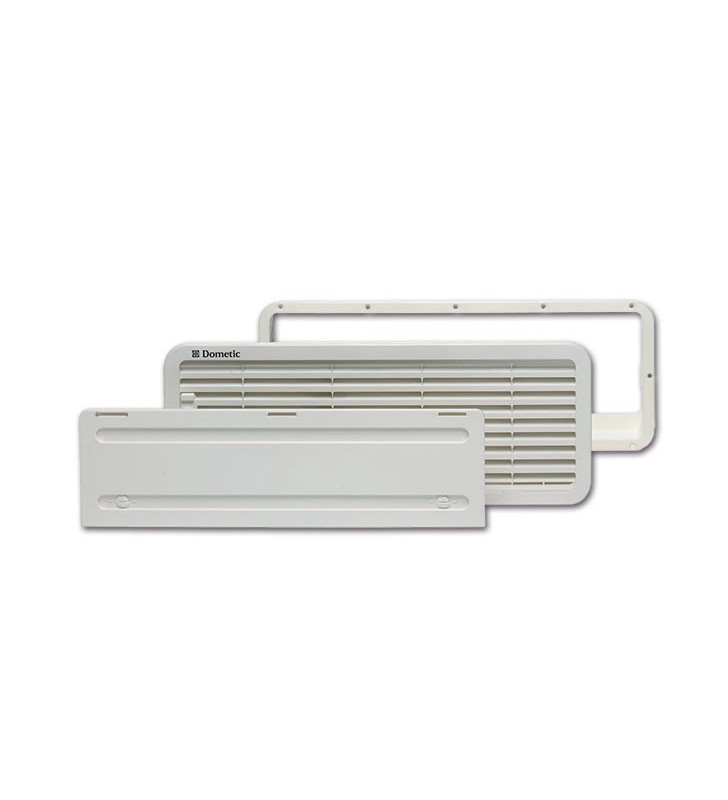

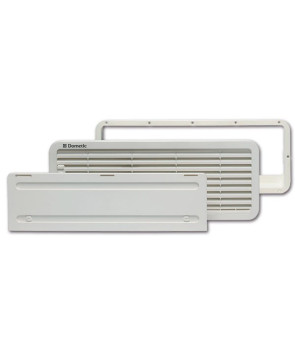

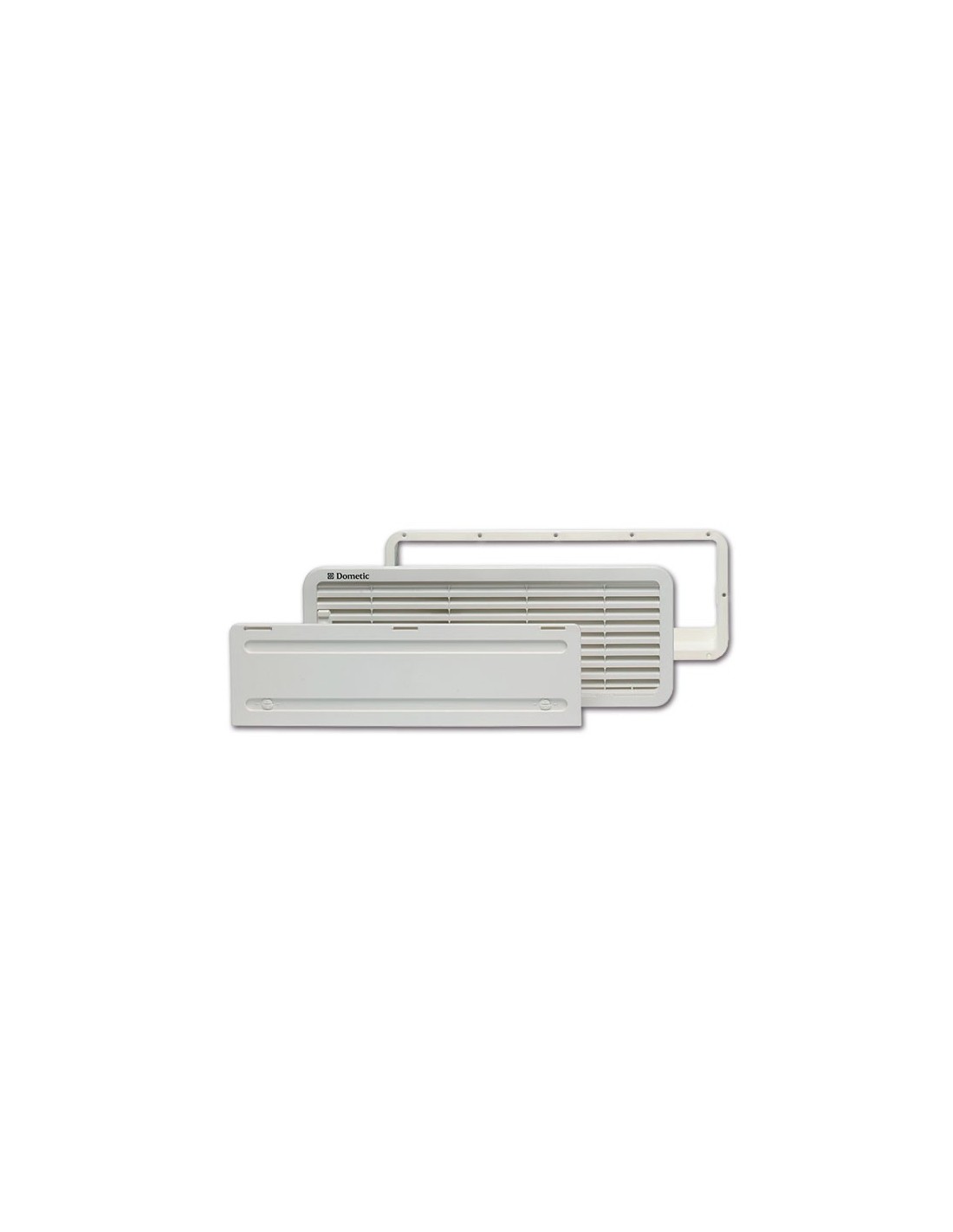

Dometic LS 200 white Dometic LS 200 refrigerator grill LOWER KIT set - 9500000959
Dimensions: 479 x 185.2 mm
Cutting dimensions: 451x156 mm
Free air passage 328 cq
For all built-in refrigerators from 40 to 103 liters
Kit consists of: frame, removable grill and cover
The climate class of the RM refrigerator is also affected by low ambient temperatures. When the ambient temperature drops below 10°C, the refrigerator will struggle to produce enough heat to operate effectively. To keep the refrigerator running, winter covers can be used to restrict airflow; see the operation manual for details on how many winter covers are needed for your refrigerator.
Sometimes it may be necessary to apply the lower winter cover when the temperature is warmer, but a cold wind blows in the lower vent of the refrigerator.
Similarly, on a cold day when the sun is hot on the side of the vehicle, you may need to remove your winter cover. To identify your winter covers, see our guide to winter air vents
To find the correct winter covers, measure the inside frame of the refrigerator grill on the side of the vehicle. Use the measurements marked in blue in this guide to choose the right winter cover
- LS 100 - 371 mm x 130.5 mm
- LS 200 - 442.5 mm x 130.5 mm
- LS 230 - 353.6 mm x 303.6 mm
- LS 300 - 482 mm x 223 mm
- LS 330 - 401.5 mm x 223 mm
- LS 500 - Use 2 LS200 covers per grid
Information provided by Dometic Support and Service
