Rif: 16070
Out-of-Stock
€69.00
VAT included
69

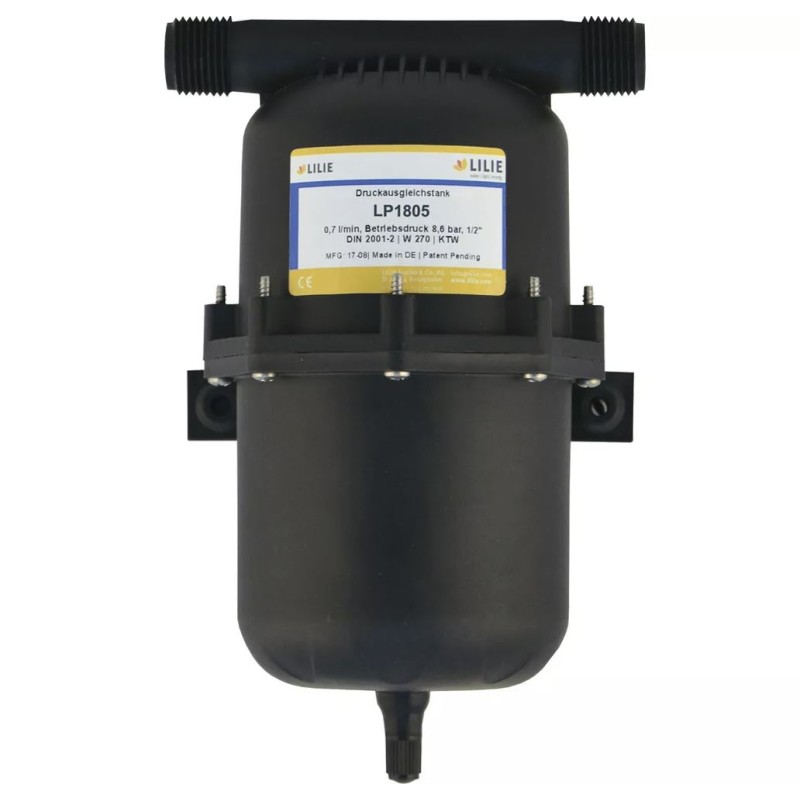

Lilie expansion vessel

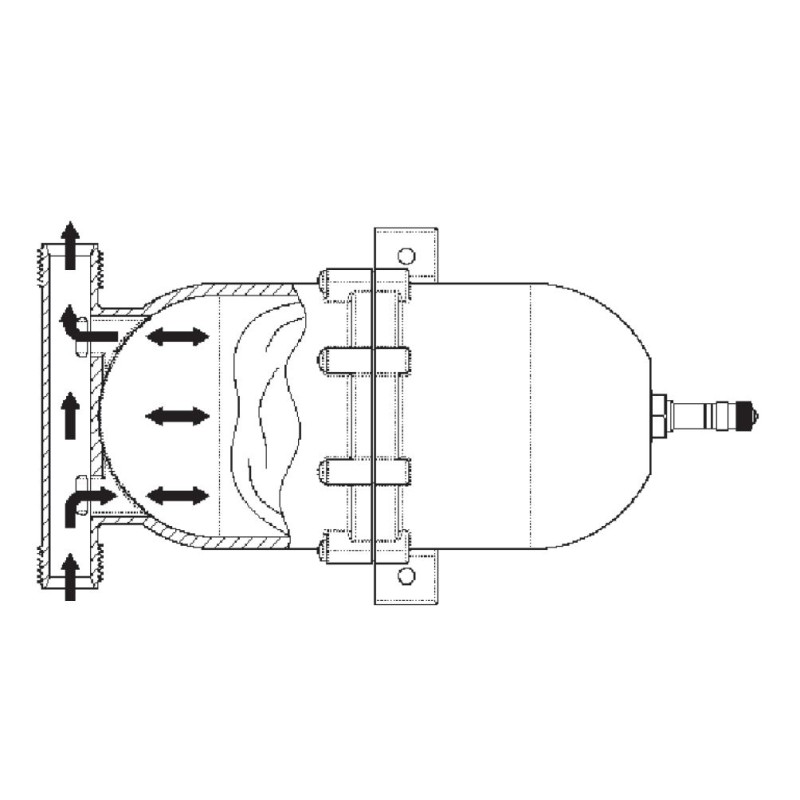

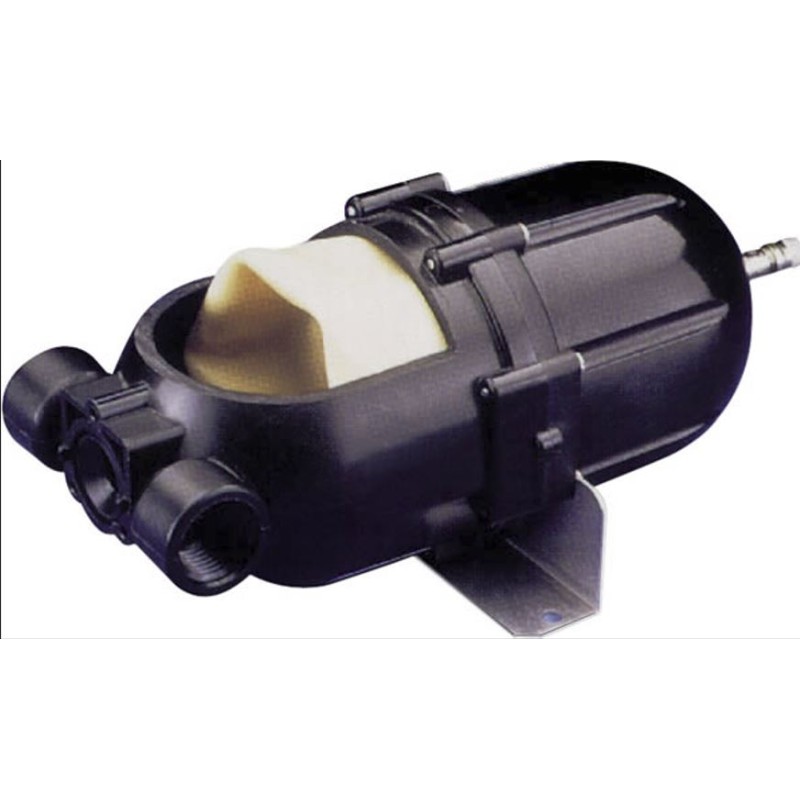

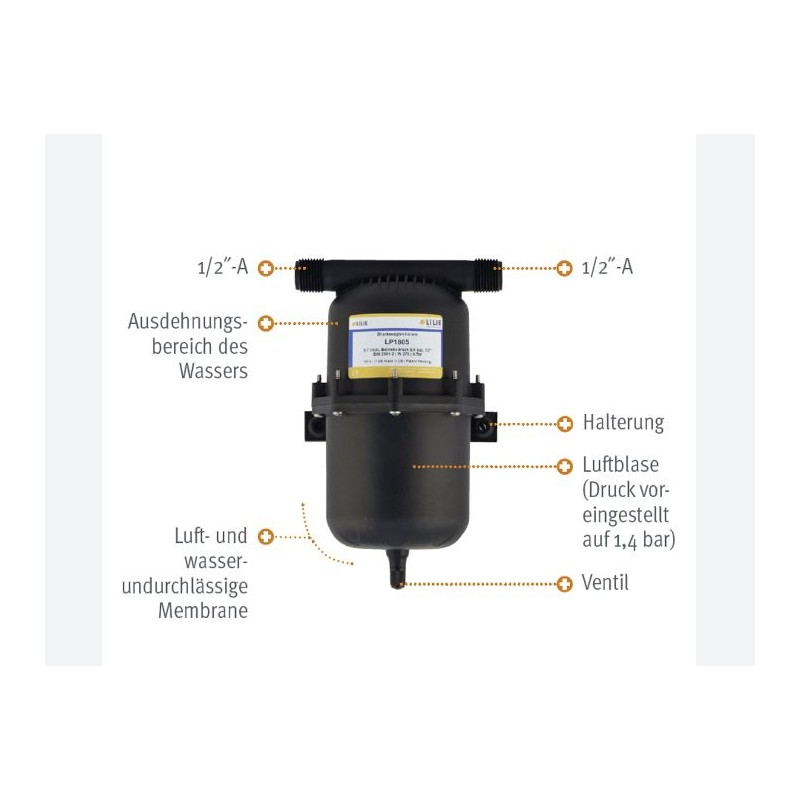

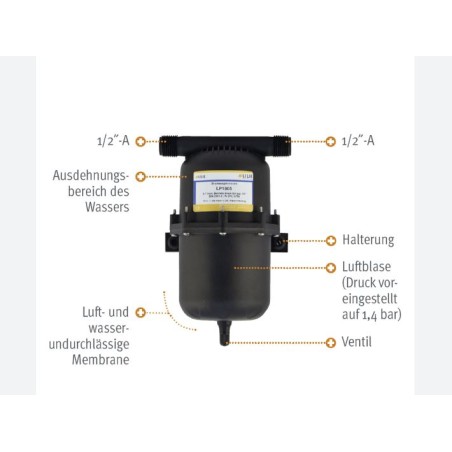

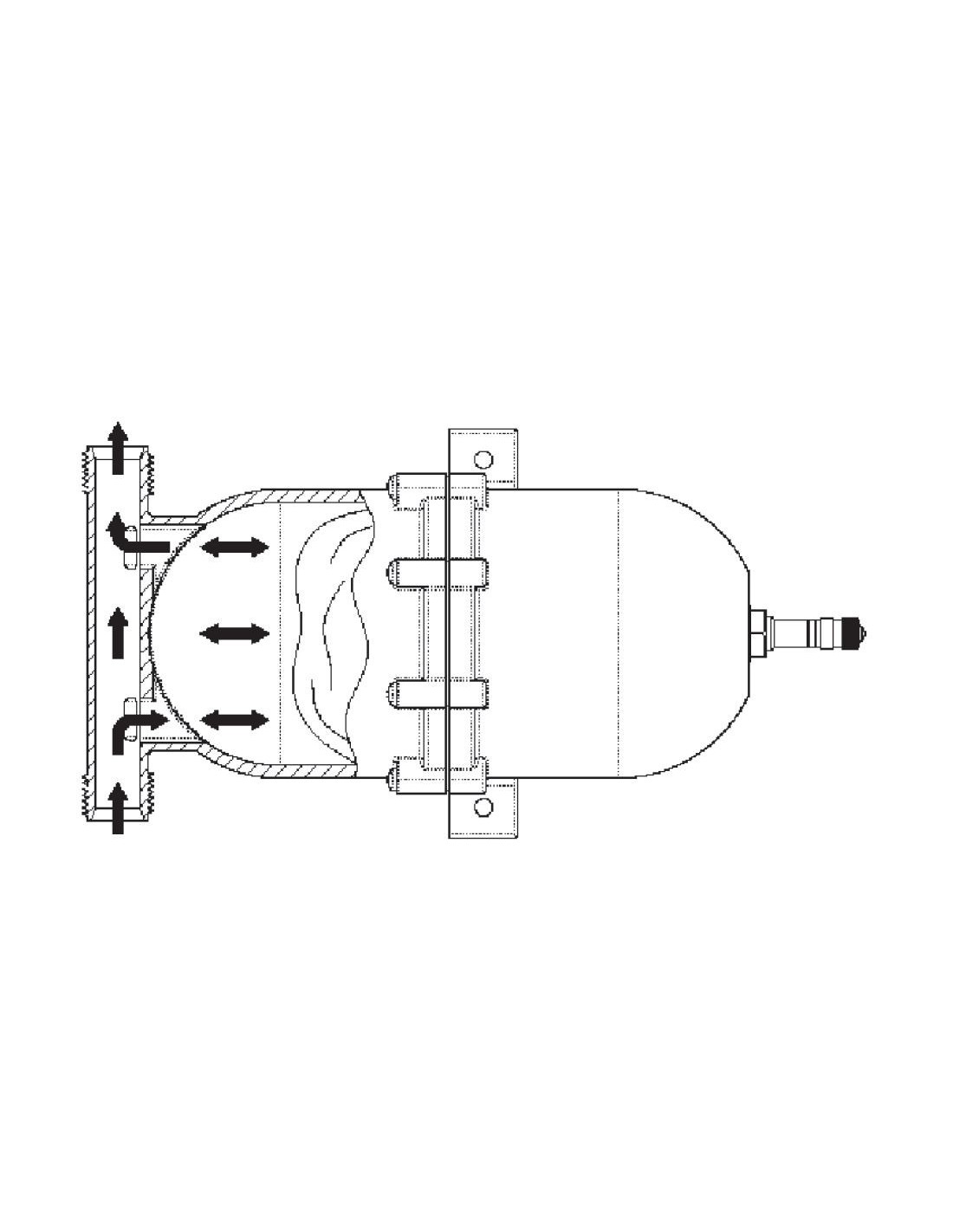

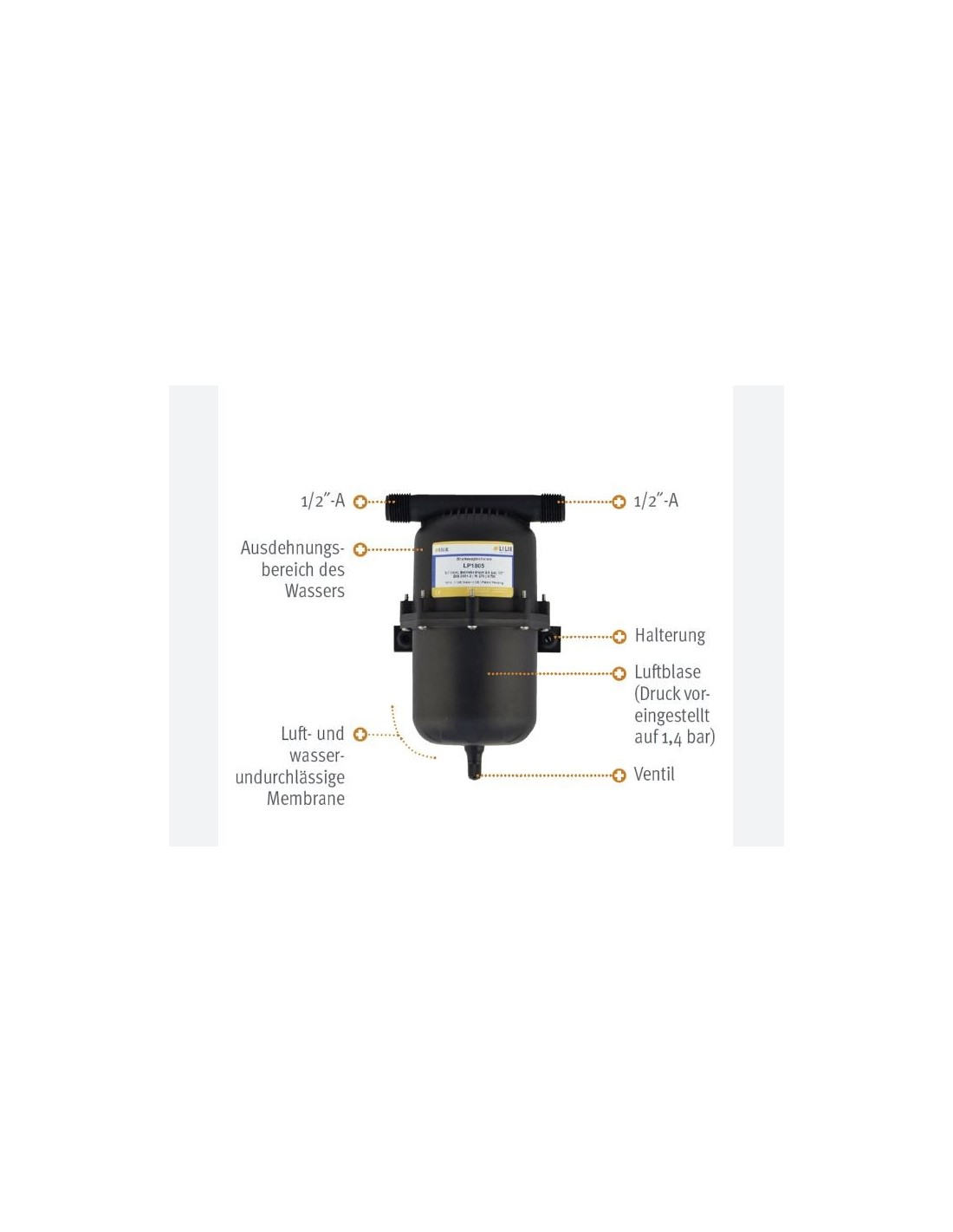

A constant pressure air container with a flexible membrane. The lung pressure is preset to 1.4 bar and can be changed with a bicycle pump. Optimal operation if this value is close to the pump restart pressure.

Consistently quiet, with no splashing or pulsating

Extended life of the pressurized water diaphragm pump

Does not require power

Save battery power

Reduced on and off time

It can be mounted in any position

Cushioned fixing on rubber feet

Connections: 1/2 inch

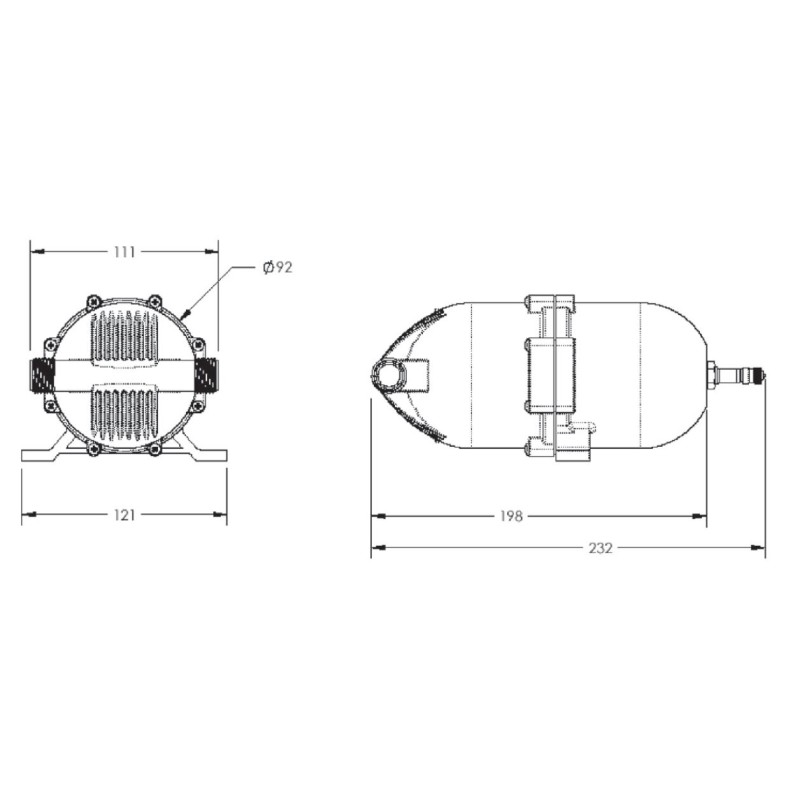

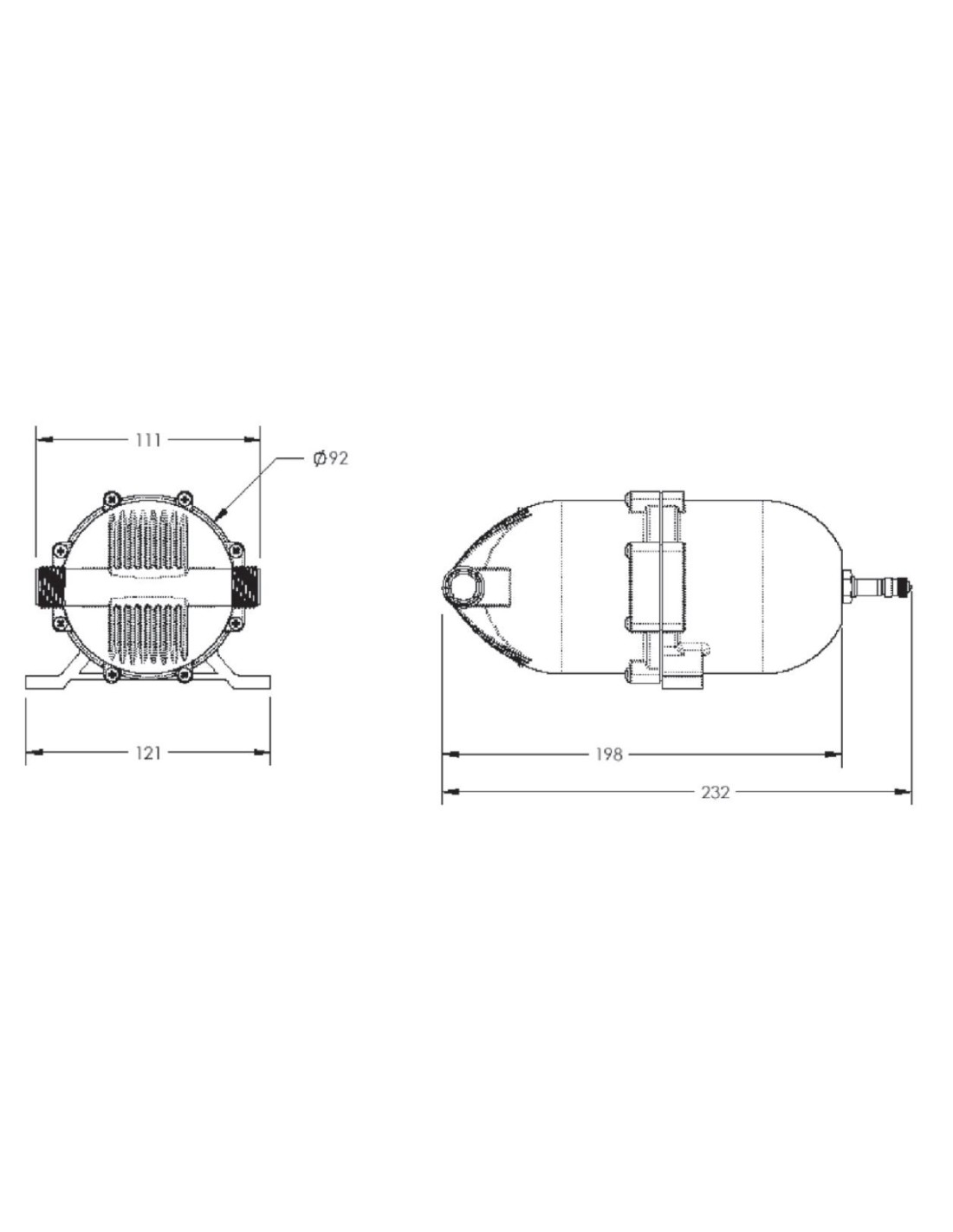

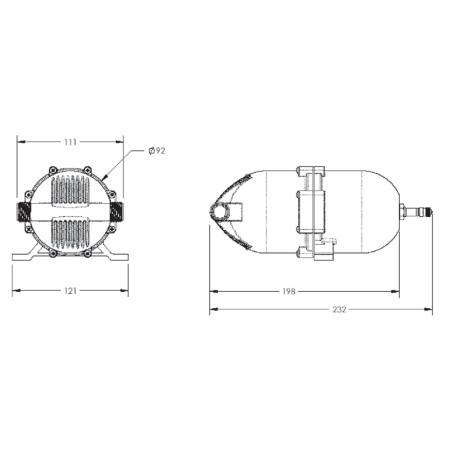

Dimensions H200x113x120 mm

Flow rate 8.6 bar

Volume 0.75 litres

Thermoplastic PA material

DIN 2001-2 W270 KTW



PMP203
