SET SOG®II X THETFORD C2 / C3 / C4 A "FLOOR"

COMPLETE SOG® SET. ALL SETS INCLUDE

• Fan (the central element)
• Adapter
• Wiring with switch for the power supply of the fan
• Complete hardware for assembly
• Differentiated assembly instructions

THE SOG PORT VERSION also includes:

• Housing for the filter
• Activated carbon filter

Filter replacement once a year.

The SOG CEILING VERSION also includes:

• Pass-through to the roof

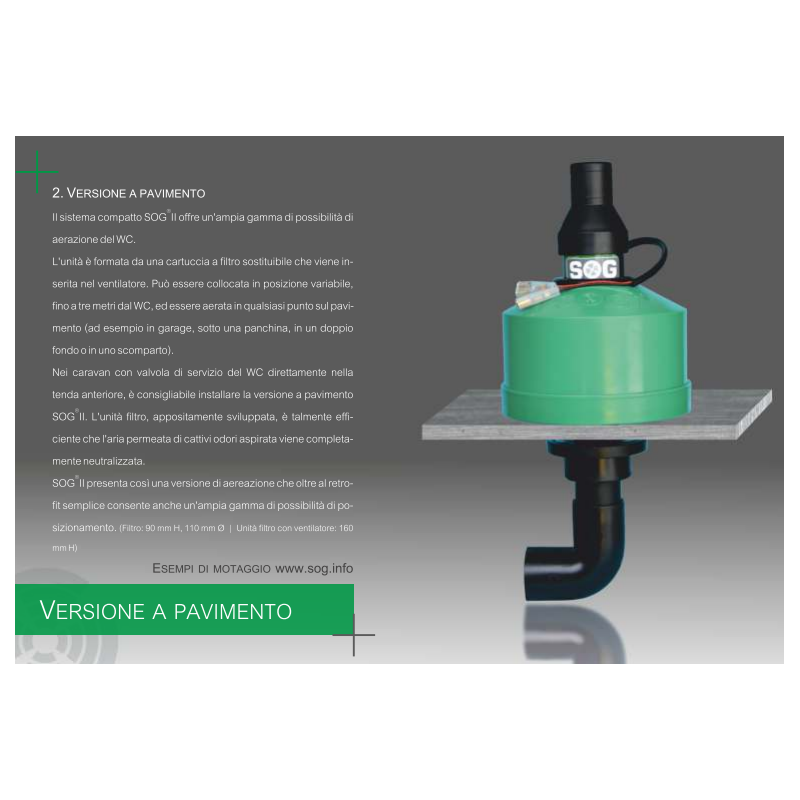

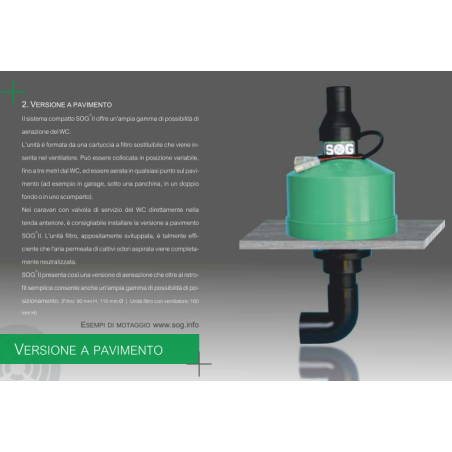

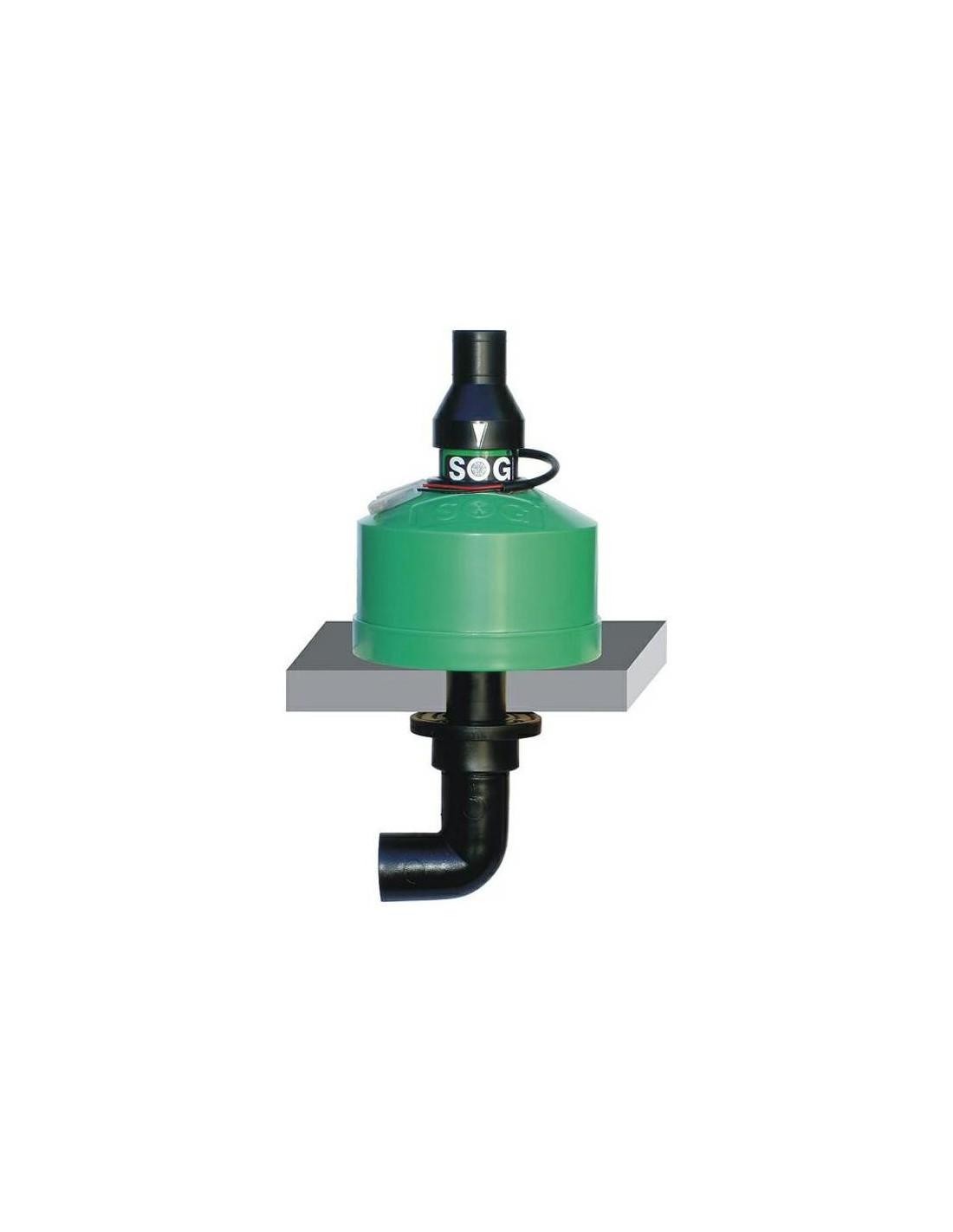

The SOG II FLOOR VERSION also includes:

• Floor loop
• Filter cartridge

Filter replacement once a year.

OTHER NOTES:

It is 100% chemical free.

Low running costs as normal toilet paper can be used and no chemicals are needed.

Low energy consumption

Flexibility in free parking etc.,

Since it is not necessary to use a chemical toilet the toilet emptying point and normal toilets can be used for emptying due to the lack of chemicals.

You can also empty whenever the need arises knowing that no amount of chemicals will be wasted.

Unwanted aromas are no longer present inside the camper even when the SOG system is in use.

The emptying process is simpler as the contents of the cassette are decomposed in greater quantities than without SOG.

All components are cared for down to the smallest detail and designed for a long life.

For example, fans developed exclusively for SOG are used that are both resistant to aggressive components of the intake air
coming from the faeces tank is watertight. The power consumption, 0.43 watts, is very low. The desired effect is achieved only with an exactly determined number of revolutions, with reduced power consumption (only during operation) of 0.84 watts.

Experience shows that a SOG system lasts for the entire useful life of the vehicle: the only precaution is to replace the activated carbon filter (where available) annually.

SOG KIT 2

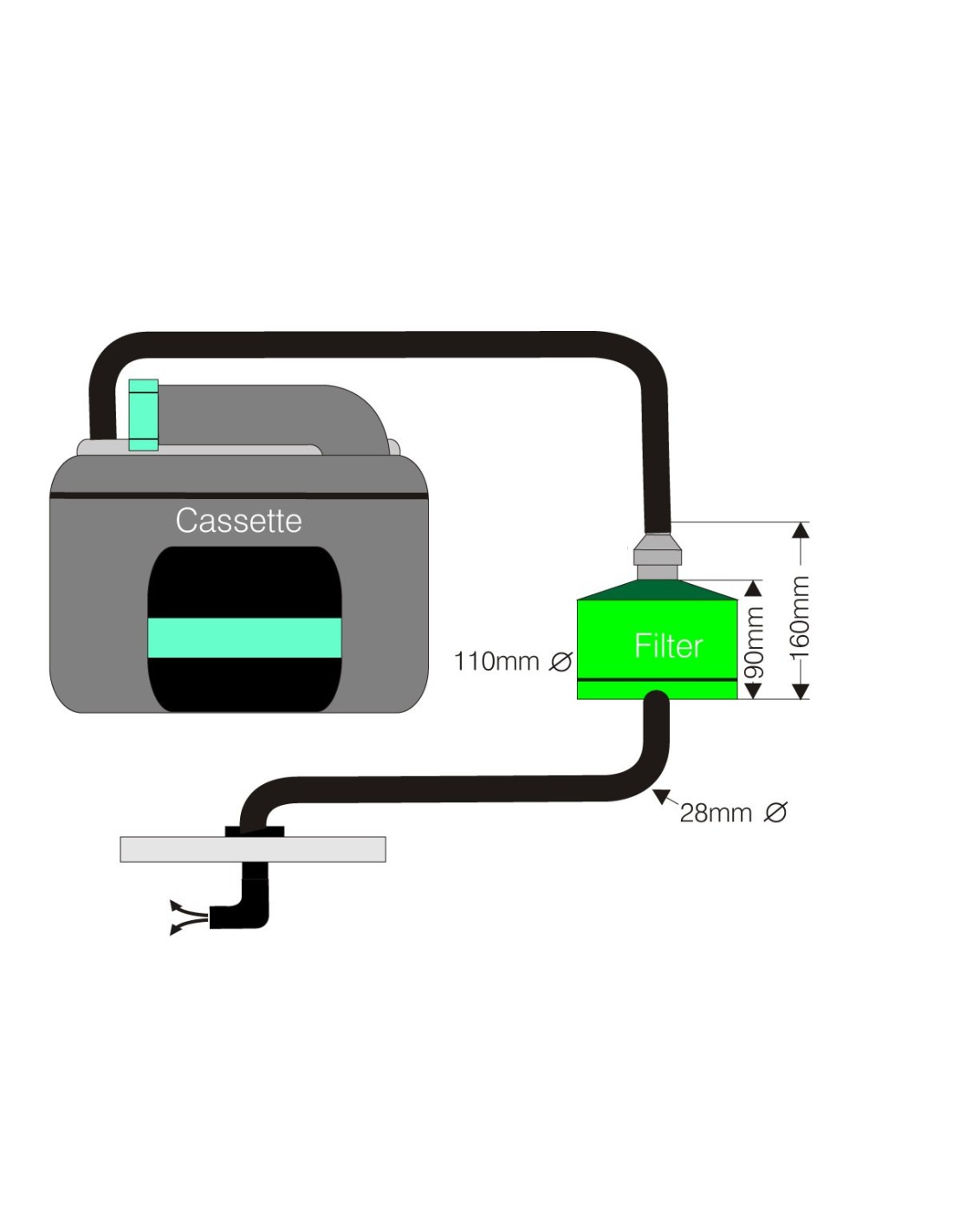

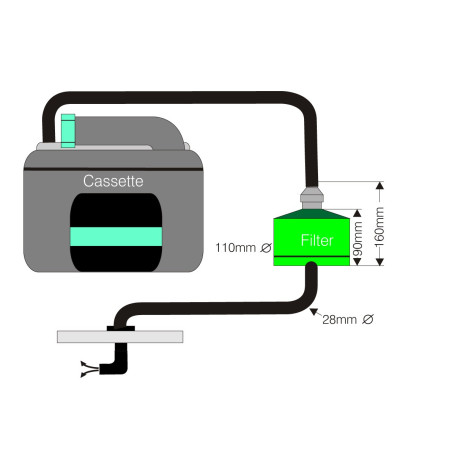

A SOG 2 kit is typically installed as below with the outlet pulled out of the toilet (in different places depending on the type of toilet cistern) and then drained through a twisted hose to an in-line fan over a green cylindrical filter and then through the vehicle floor and to the outside.
