NDS SMART-IN 1500 W modified wave inverter
- Continuous Output Power: 1,500W
- Peak maximum power: 3,000 W
- Output voltage (modular wave): 230V
- Output frequency 50/60 Hz ± 3 Hz
- USB outputs 5 V 500 mA
- Input voltage 12V
- High efficiency up to 93% and low self-consumption
- Input with professional connectors
- Provision for remote On/Off control
- Fully isolated inlet and outlet
- Overload and short circuit protection
- Low battery alarm
- Polarity and overtemperature protection
SMART IN, new range of inverters designed and developed by NDS, also suitable for professional use.

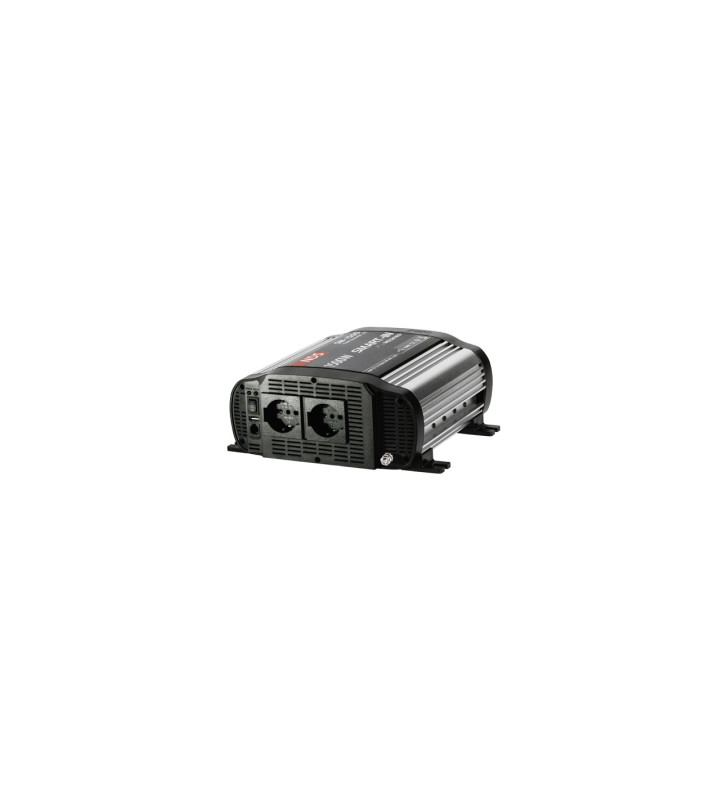

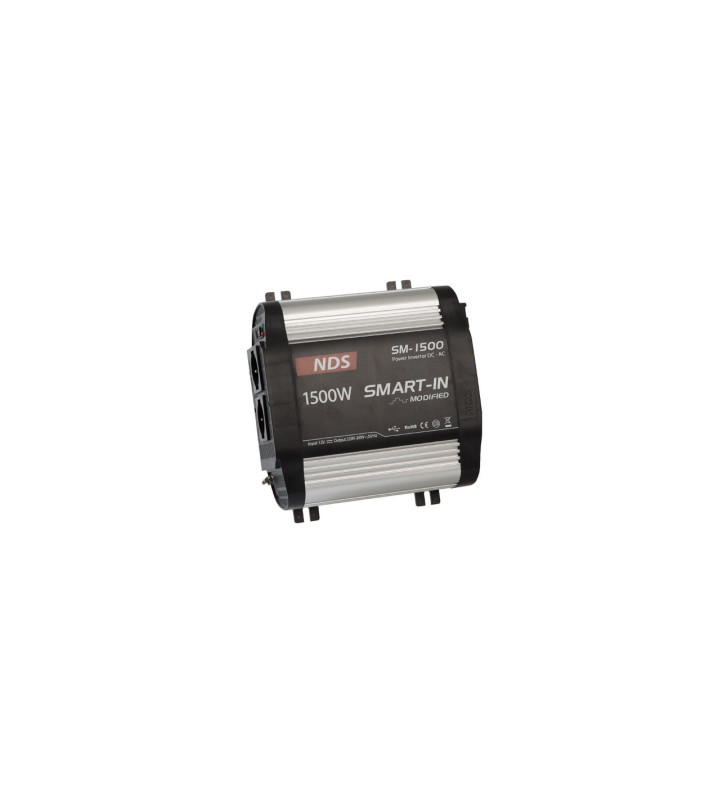

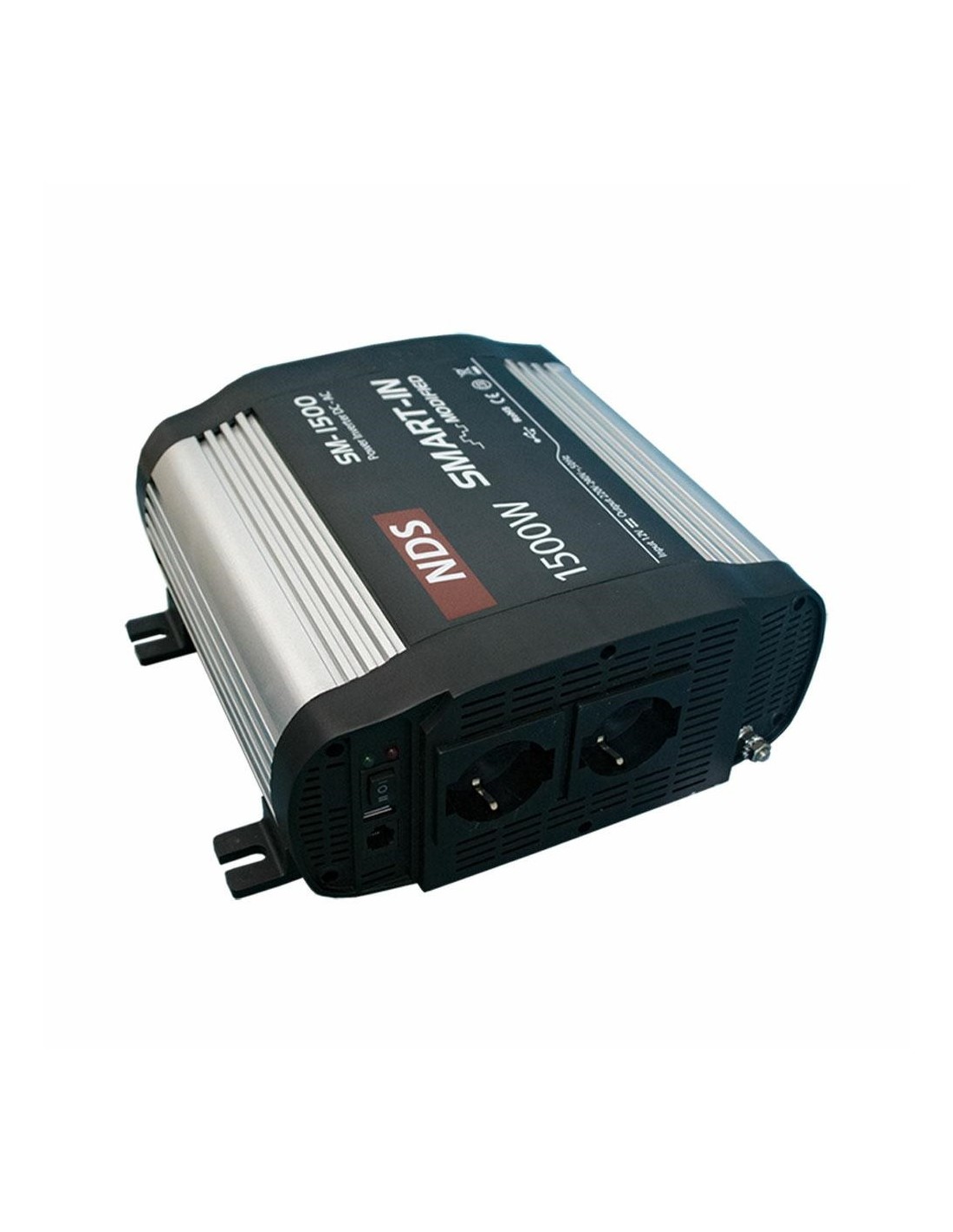

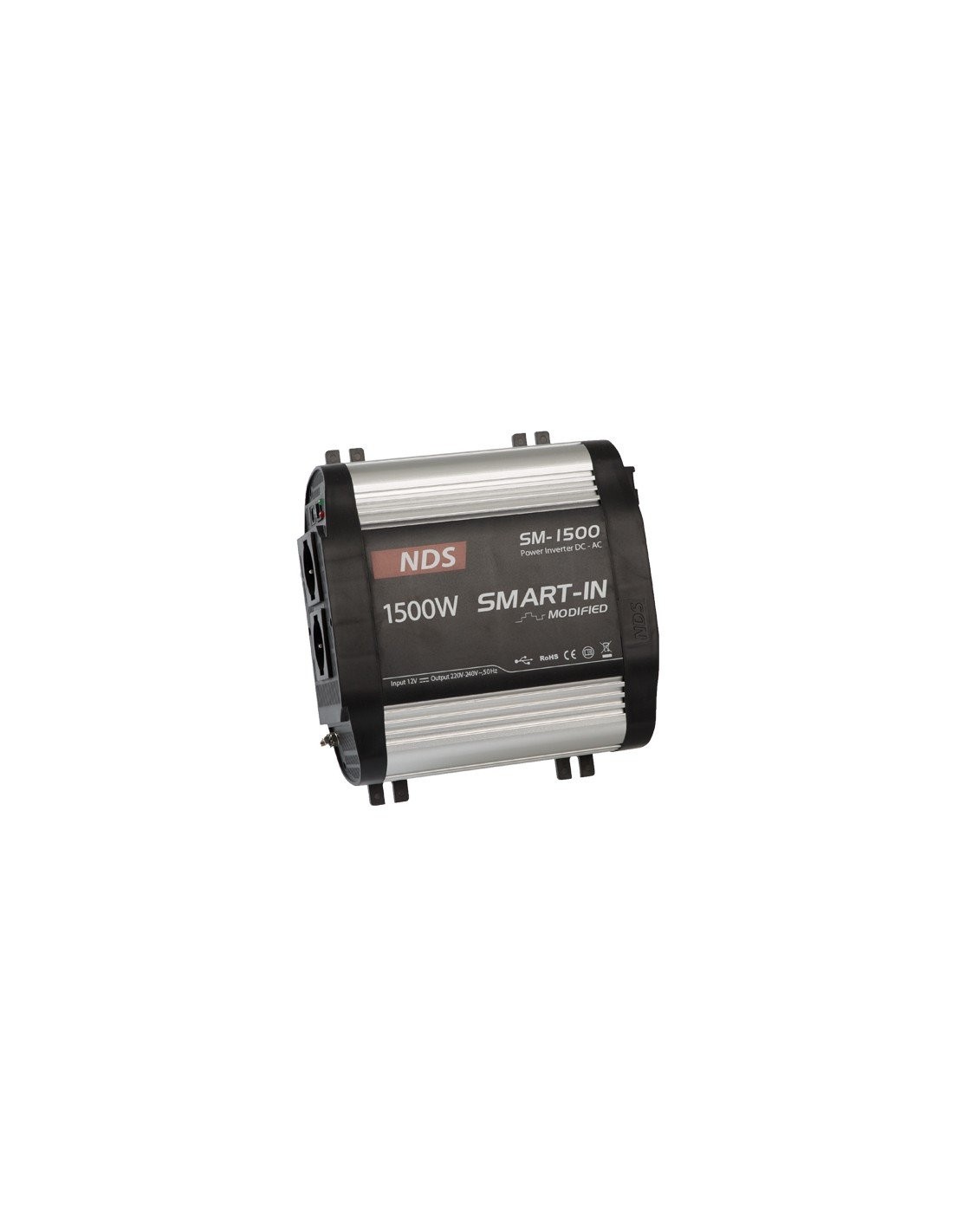

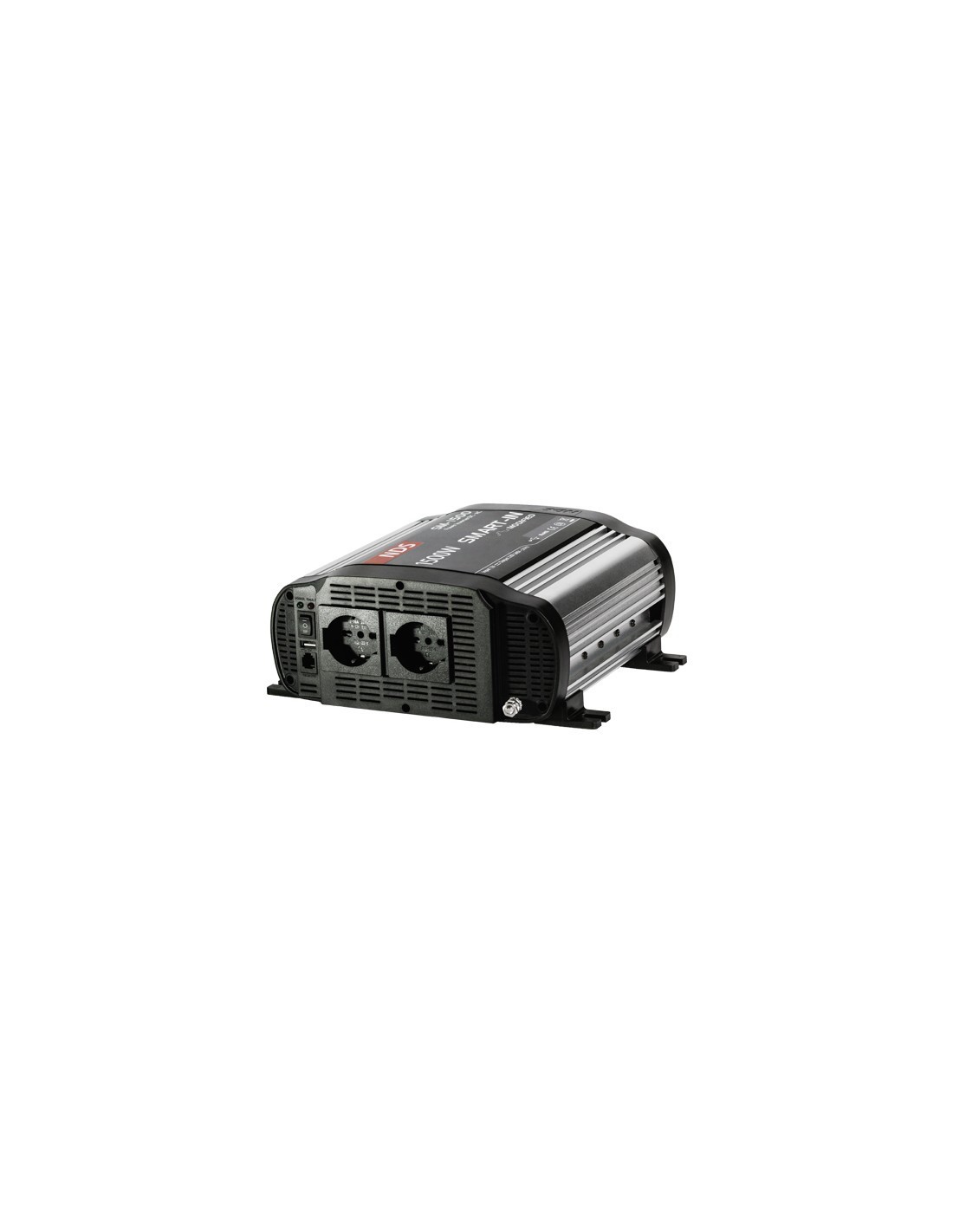

The images are examples of the type of inverter.
Totally isolated input and output, to prevent any anomaly of the connected output devices from damaging the input ones or vice versa, allowing a high level of safety.
A remote control is available for remote control of the inverter. for the 400W and 600W models a set of power cables with connection clamps to the battery poles is available.
Thanks to the innovative technical solutions adopted, efficiency can reach very high values:
- 93% for the SMART-IN SM series with modified wave, suitable for TV sets, computers, battery chargers, etc.
- 91% for the pure wave SMART-IN SP series, most recommended for all uses, as all the devices are designed and tested to operate with a pure sinusoidal voltage. For some devices, such as motors, refrigerators, Hi-Fi systems, lamps with "dimmers" and air conditioners, the use of a pure sine wave inverter is mandatory, to avoid damaging them.
