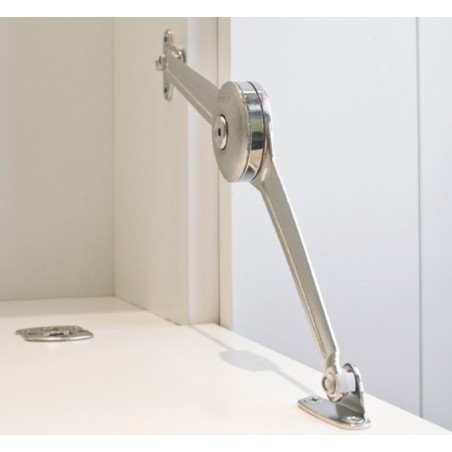

Universal braked swivel arm for RIMOR, BLUCAMP and KENTUCKY wall units

Rif: 15926
5 days of preparation excluding made to order items
€19.90
VAT included
19.9
5 days of preparation excluding made to order items

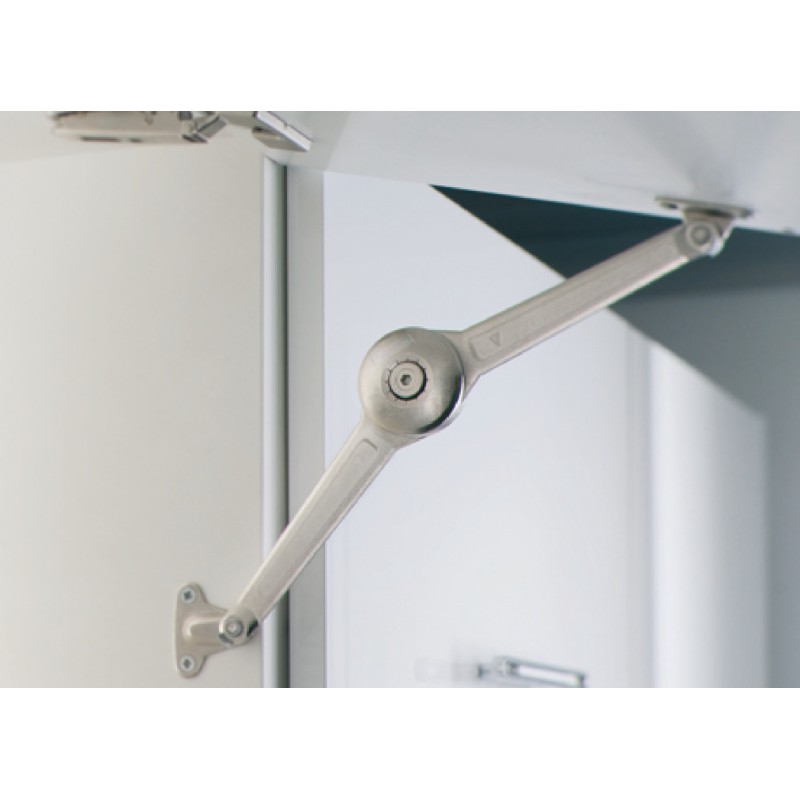

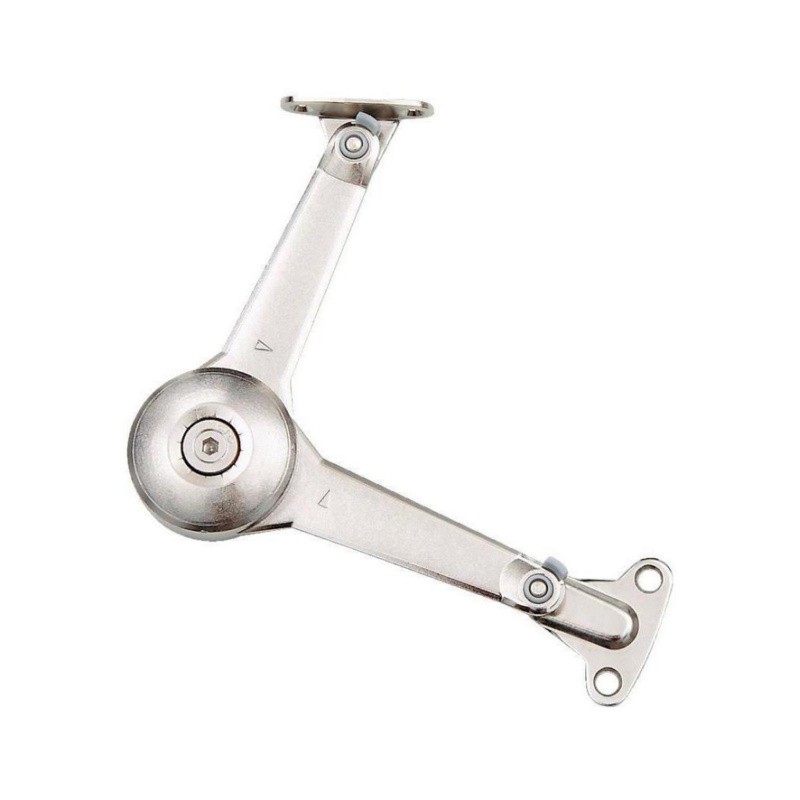

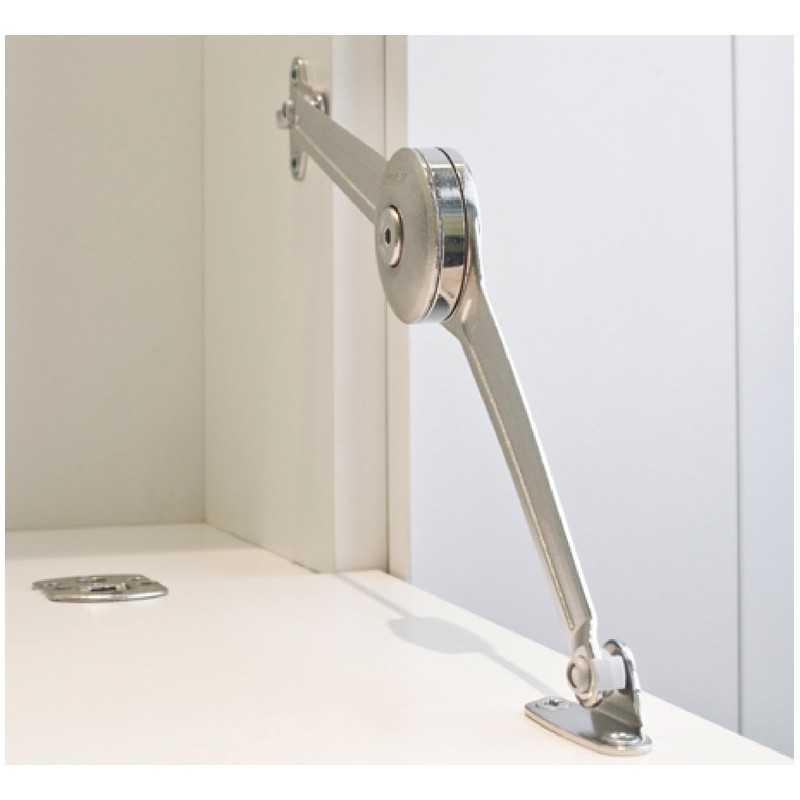

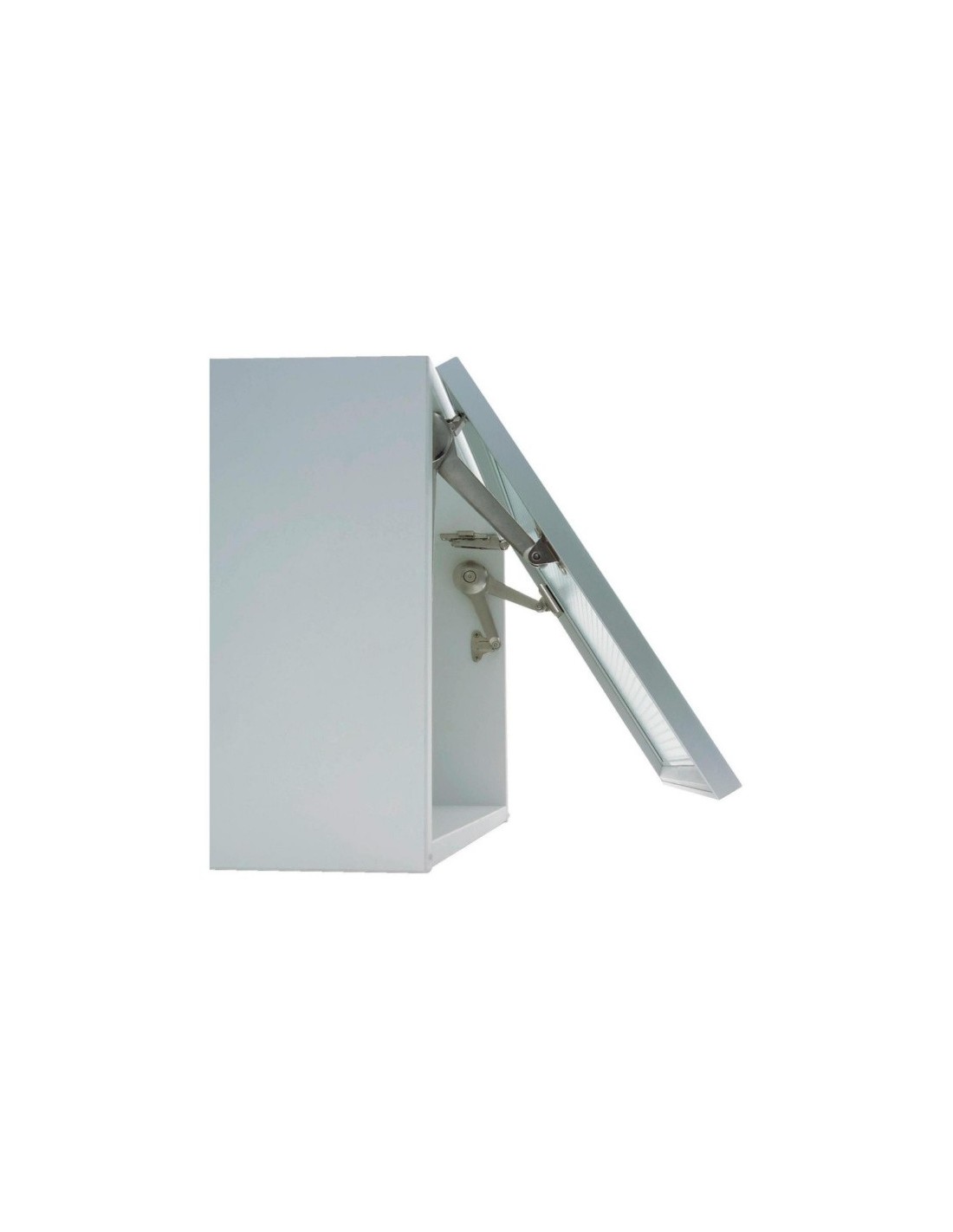

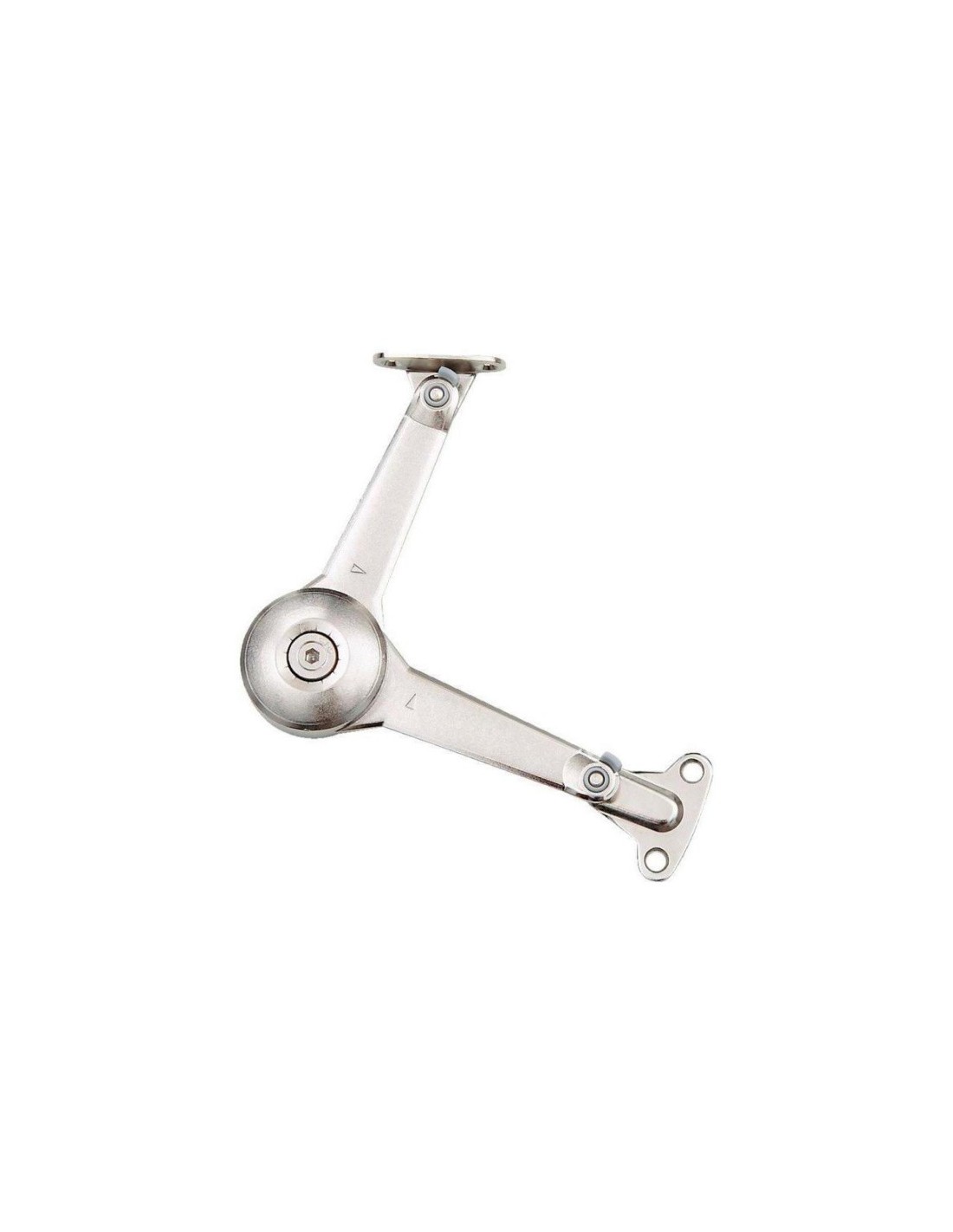

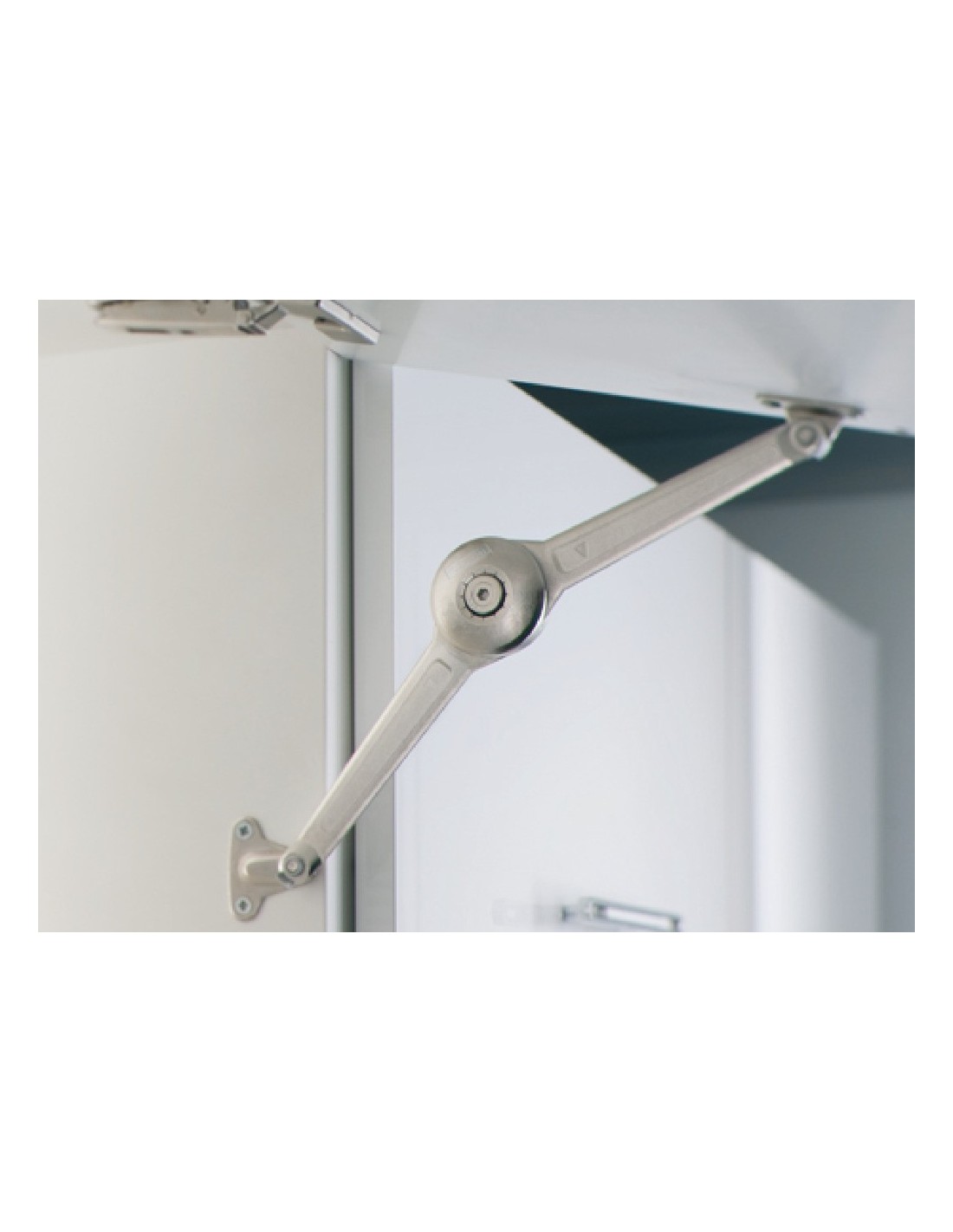

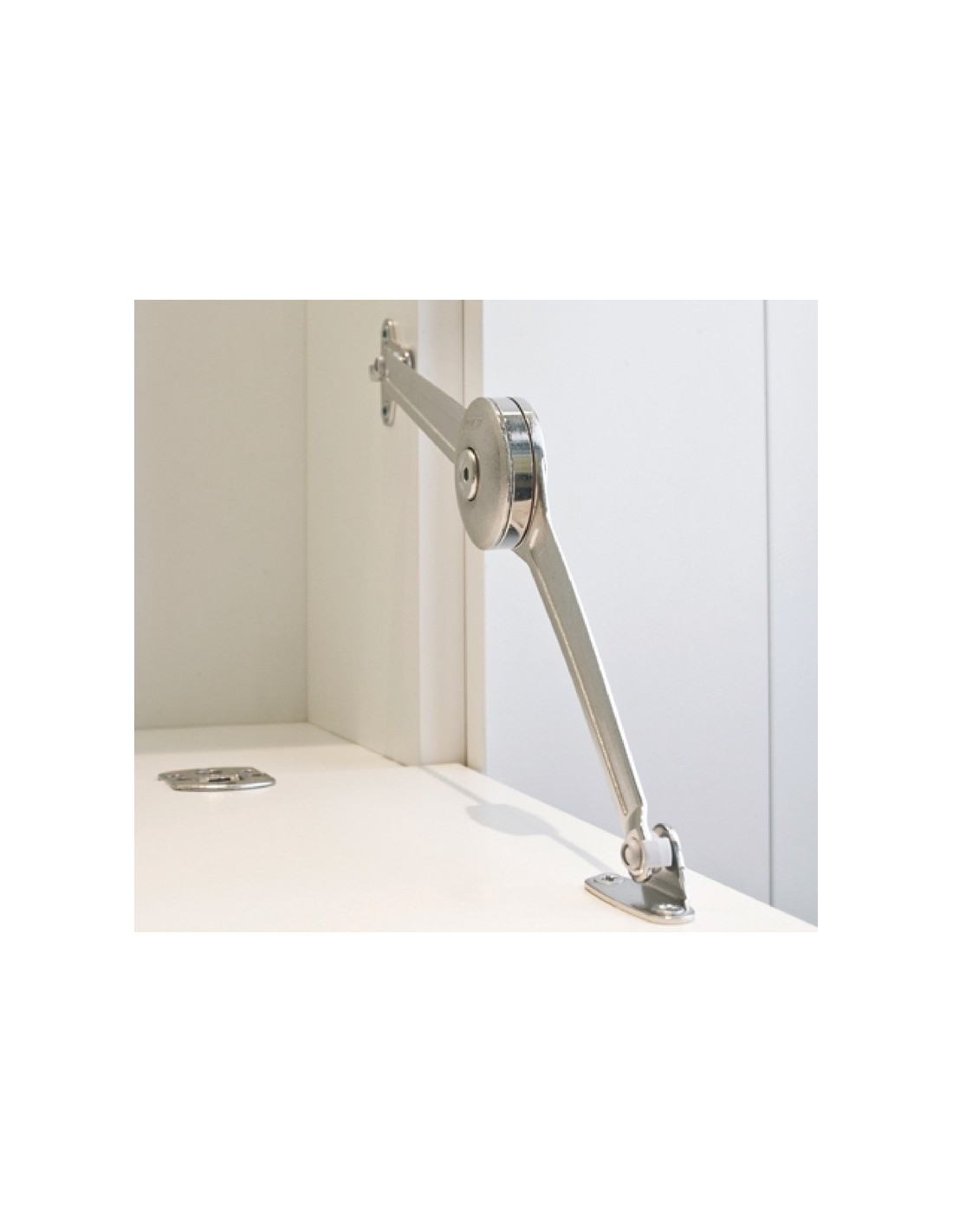

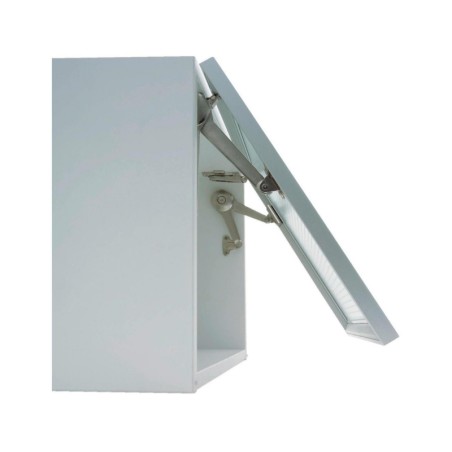

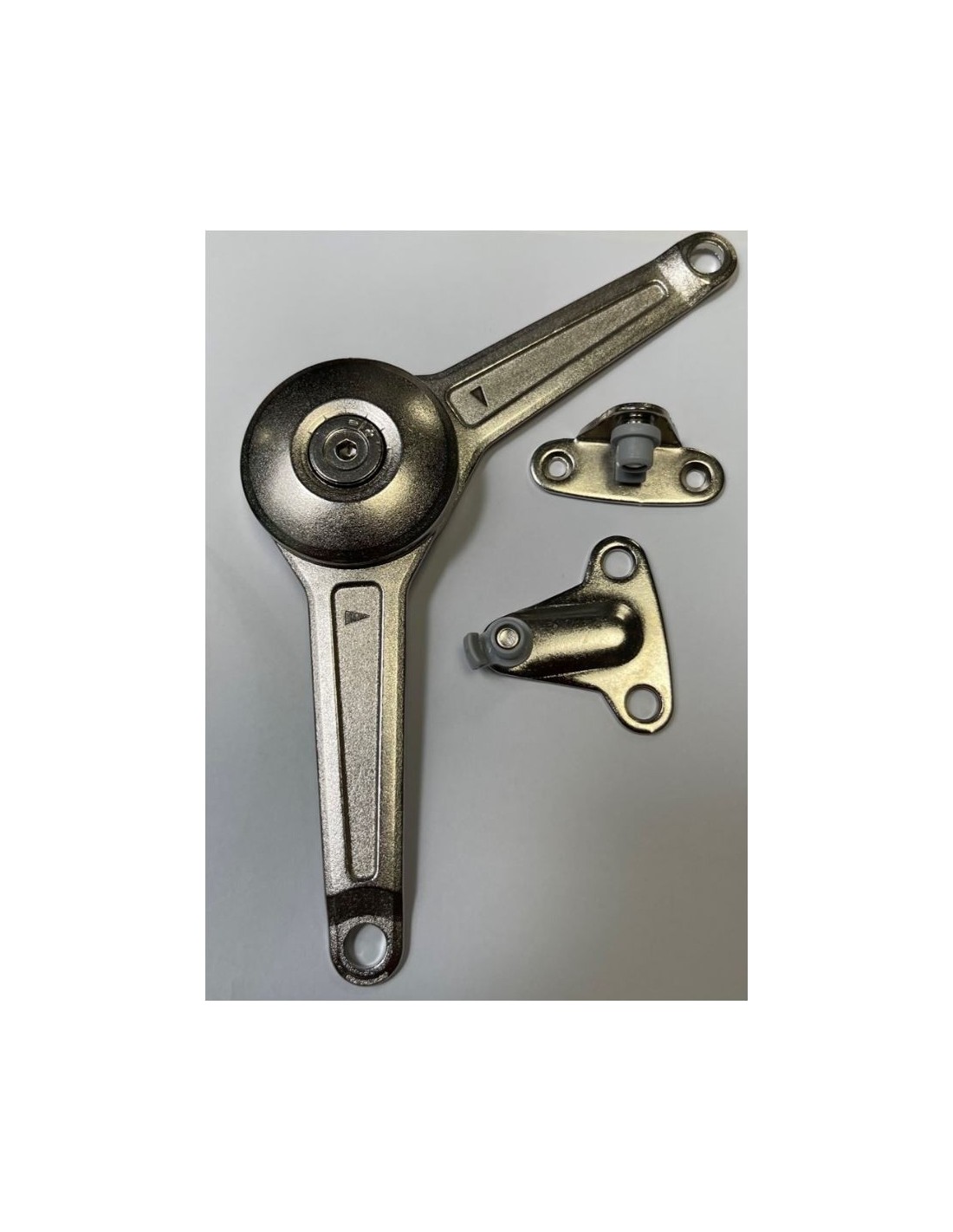

Braked joint arm, universal for RIMOR, BLUCAMP and KENTUCKY wall units

RIMOR code 1MDA110028

Opening angle upwards max. 110°

Opening angle downwards 90°

Max. load 9 kg

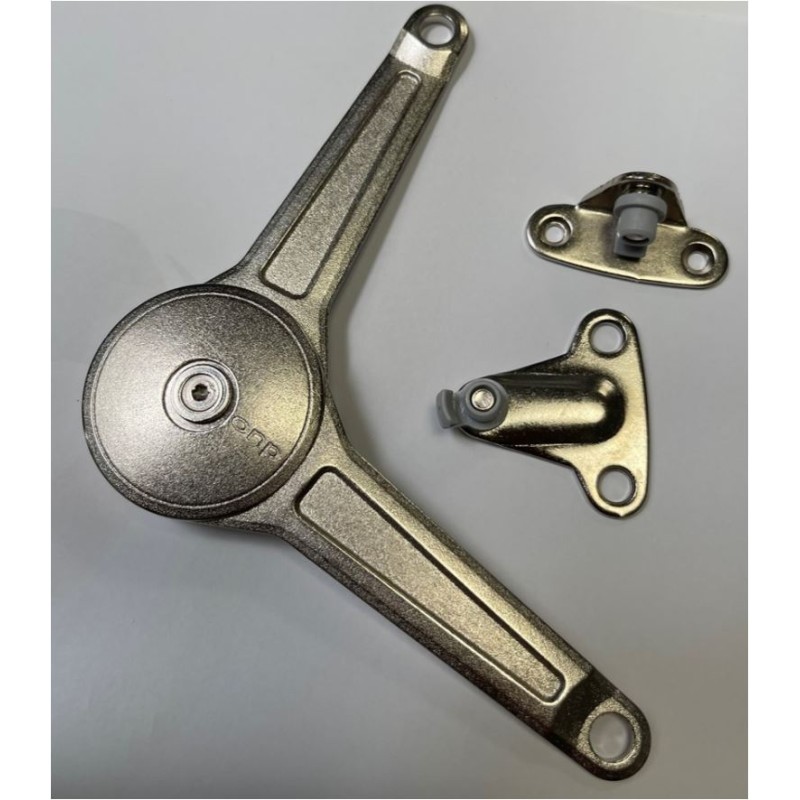

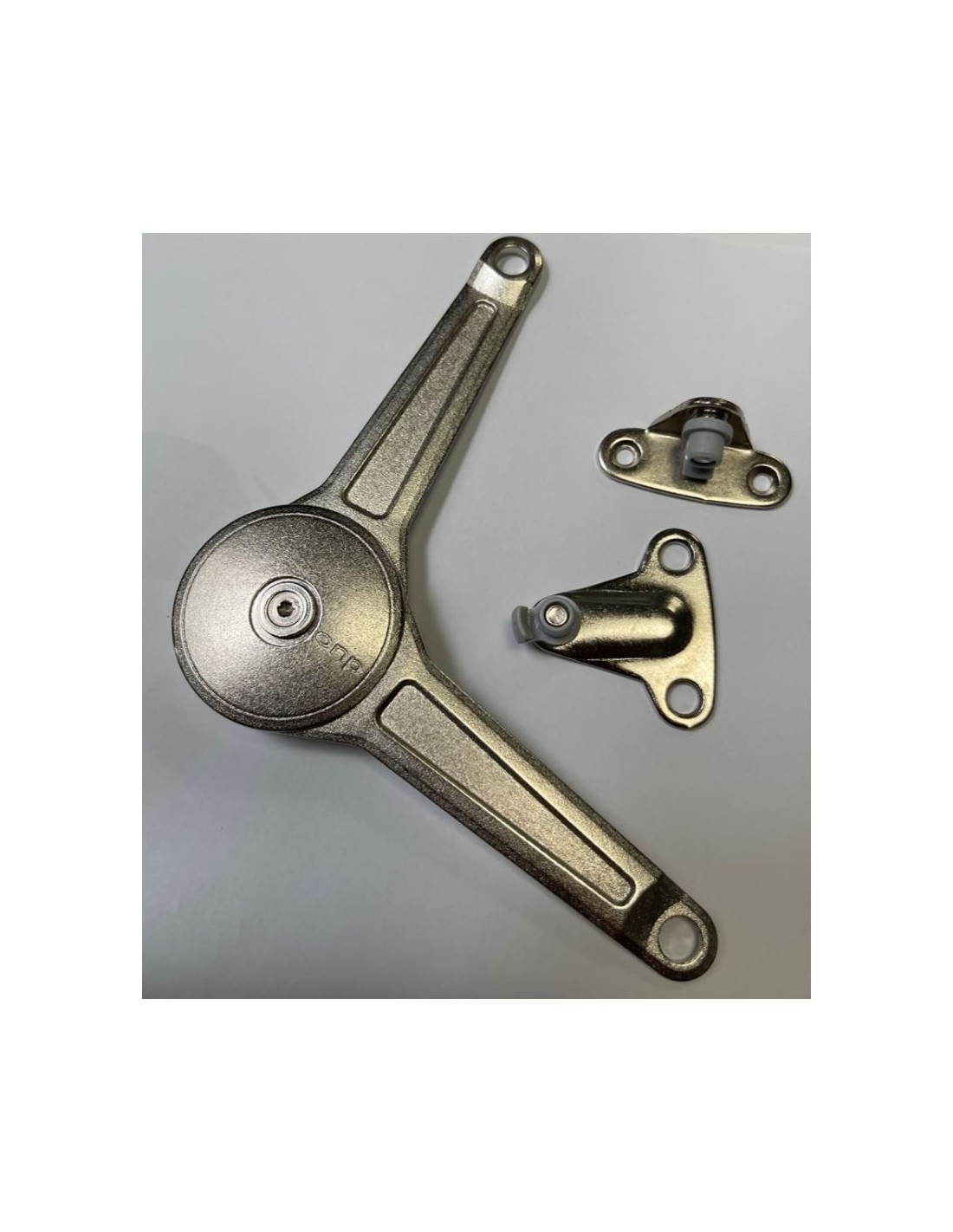

Scope of delivery:

  • 1 x tilt and turn door support
  • 1 furniture fixing angle
  • 1 fixing angle for tilt and turn door

Characteristics:

  • Comes with wooden door bracket

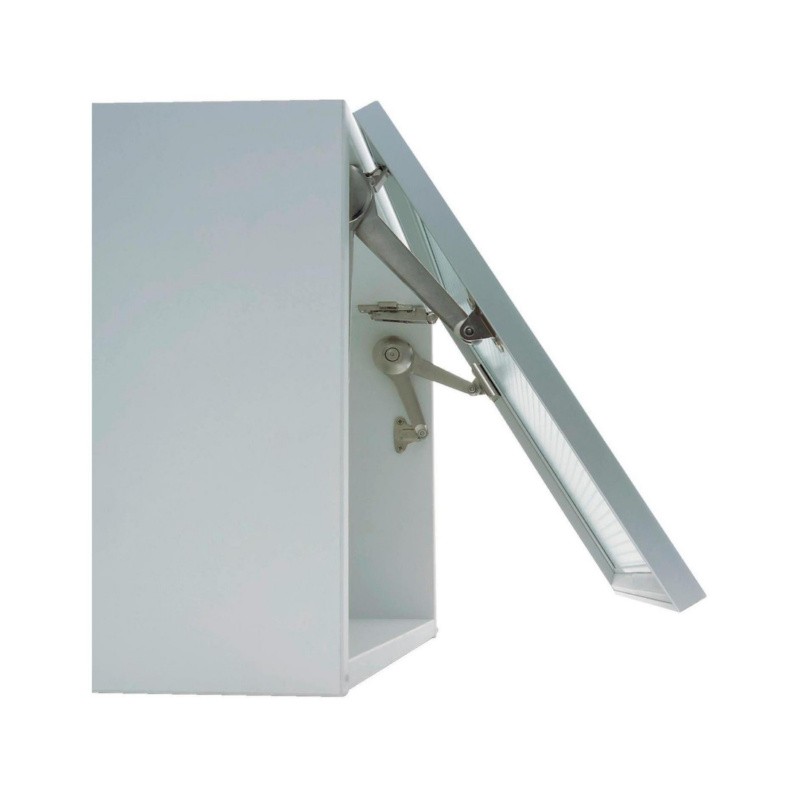

  • Double movement: opening upwards and downwards

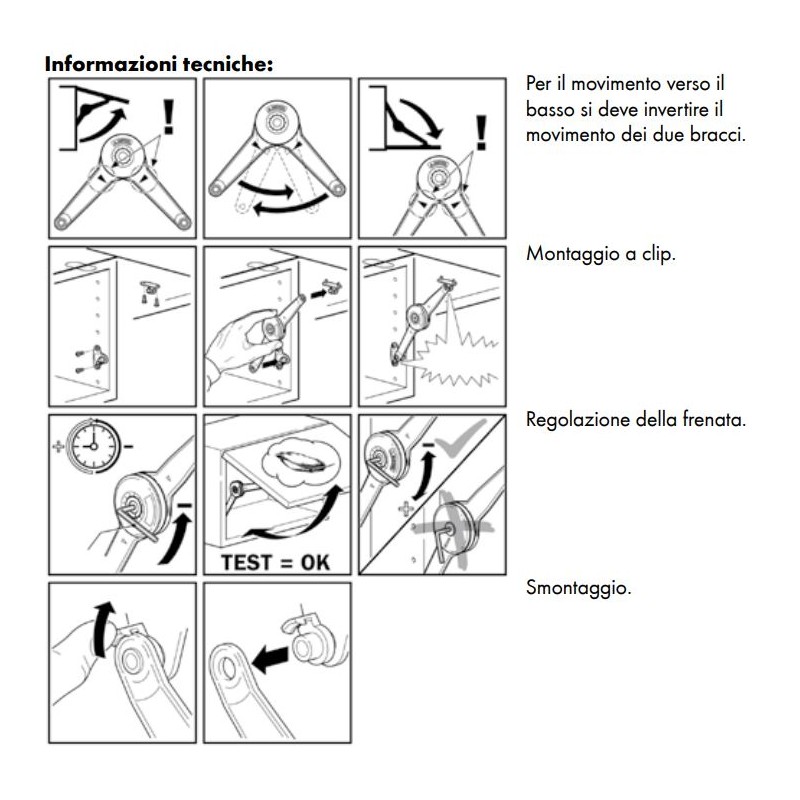

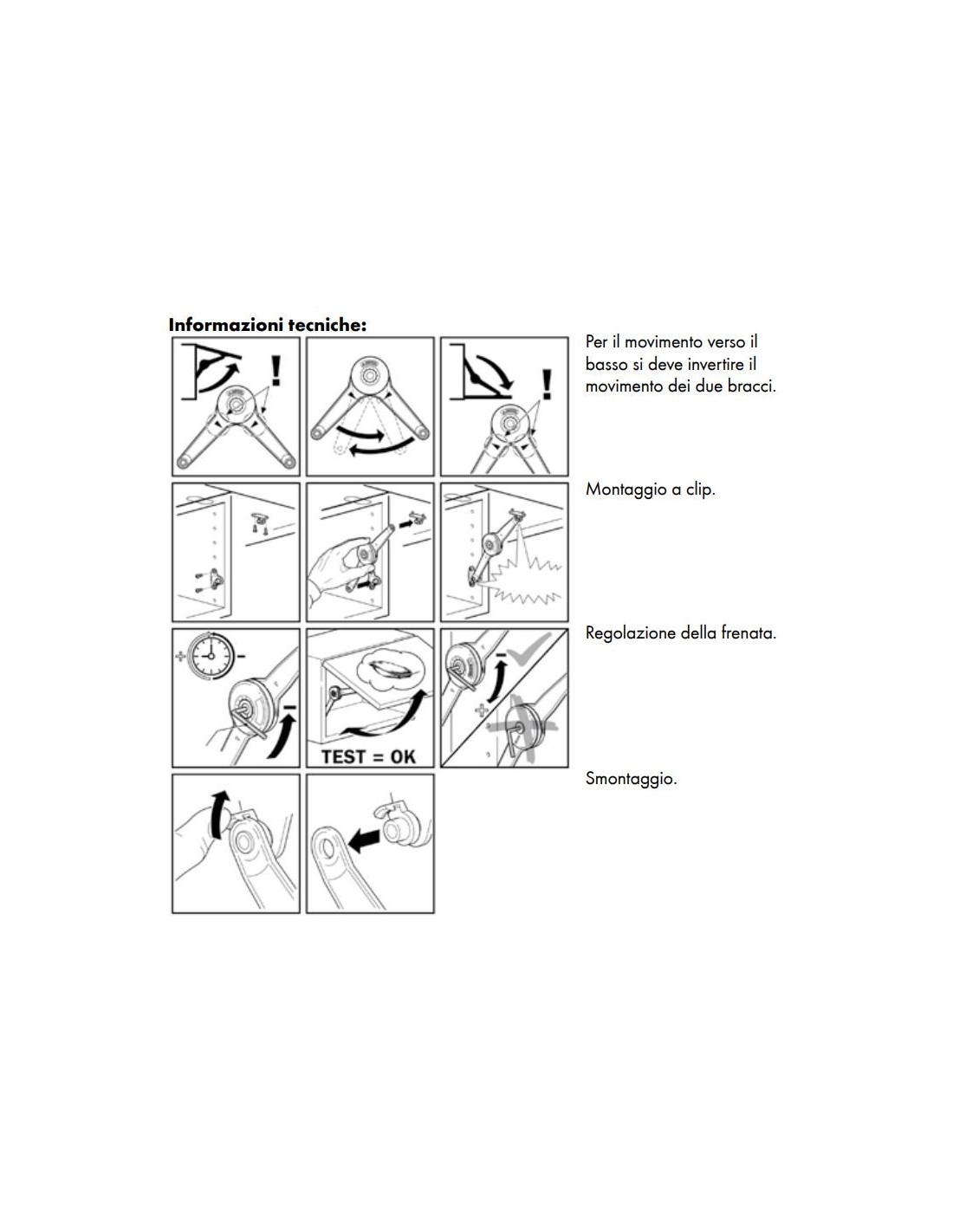

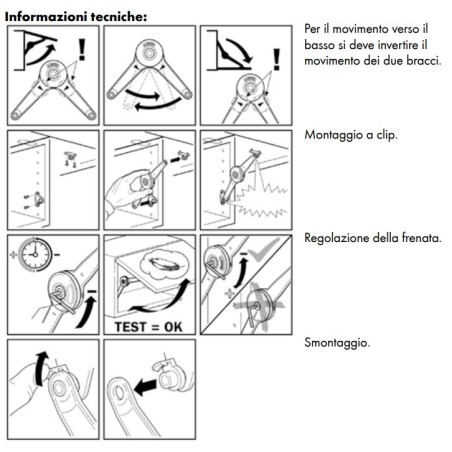

  • For the downward movement, the movement of the two arms must be reversed (see drawing)
  • Zamak joint arm, steel mechanism
  • Nickel plated finish
  • Max. door height 500 mm
  • Reversible for right or left mounting
  • Brake: Adjustable braking force with M4 hex key that allows for soft closing
  • Lock: the door remains locked in any desired opening position



373666121 + 37366614 + 37369981
