1463.362.01- Control panel NE362-F Nordelettronica
€169.00
VAT included
169
Rif: 16831

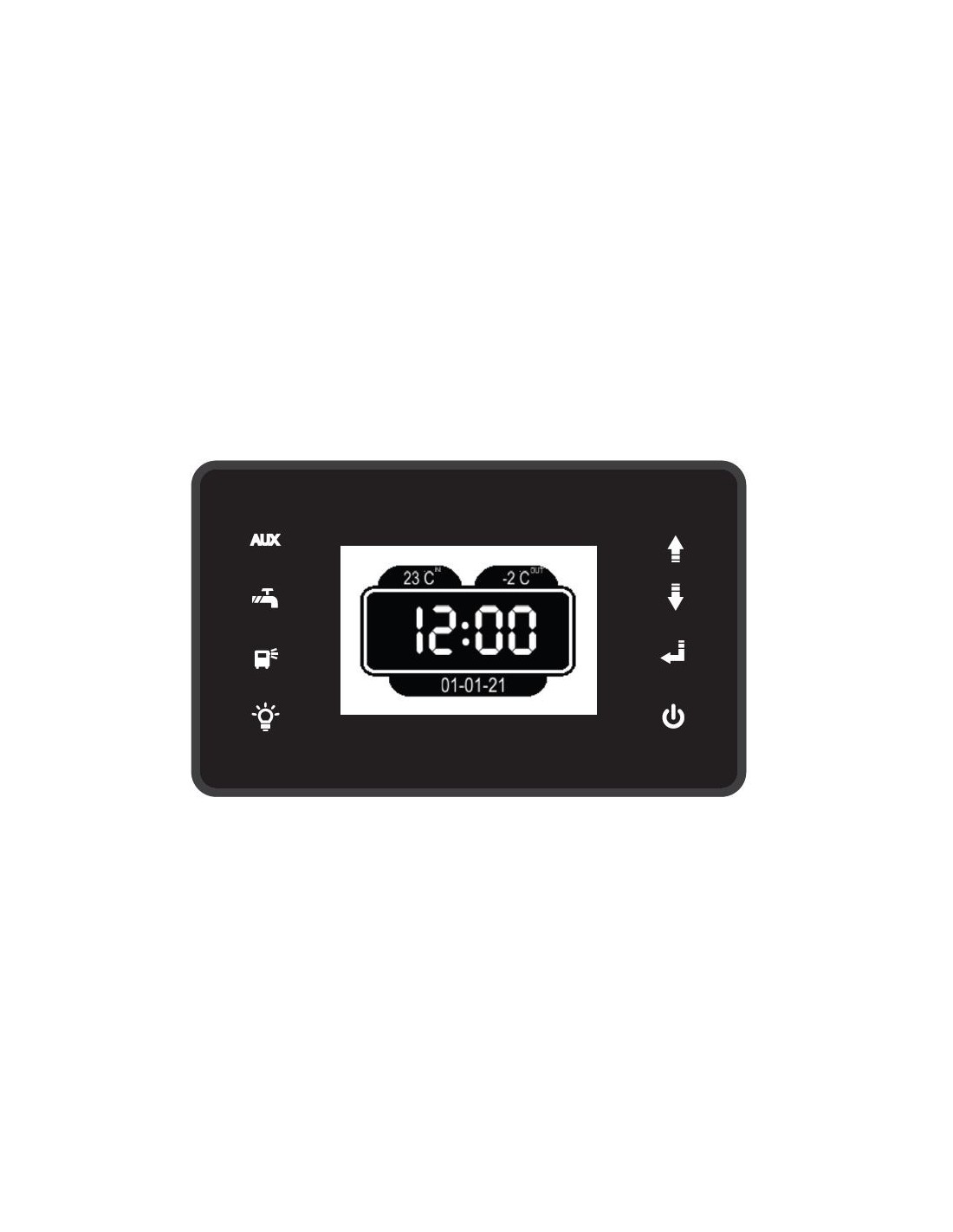

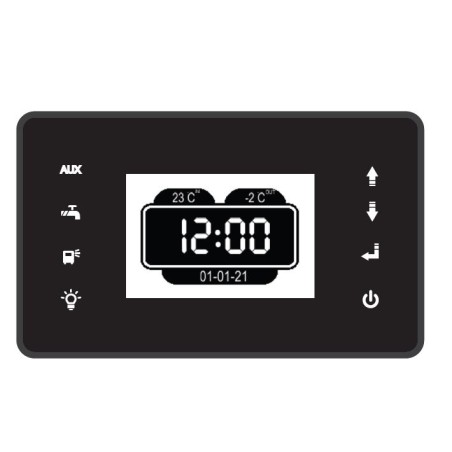

1463.362.01 NE362_F Nordelettronica control panel with frame

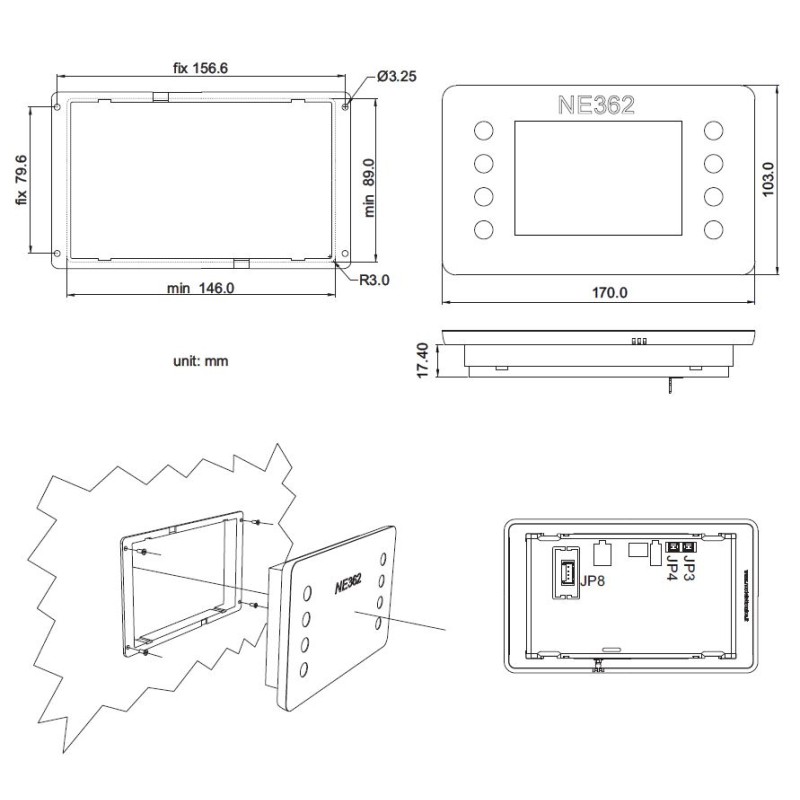

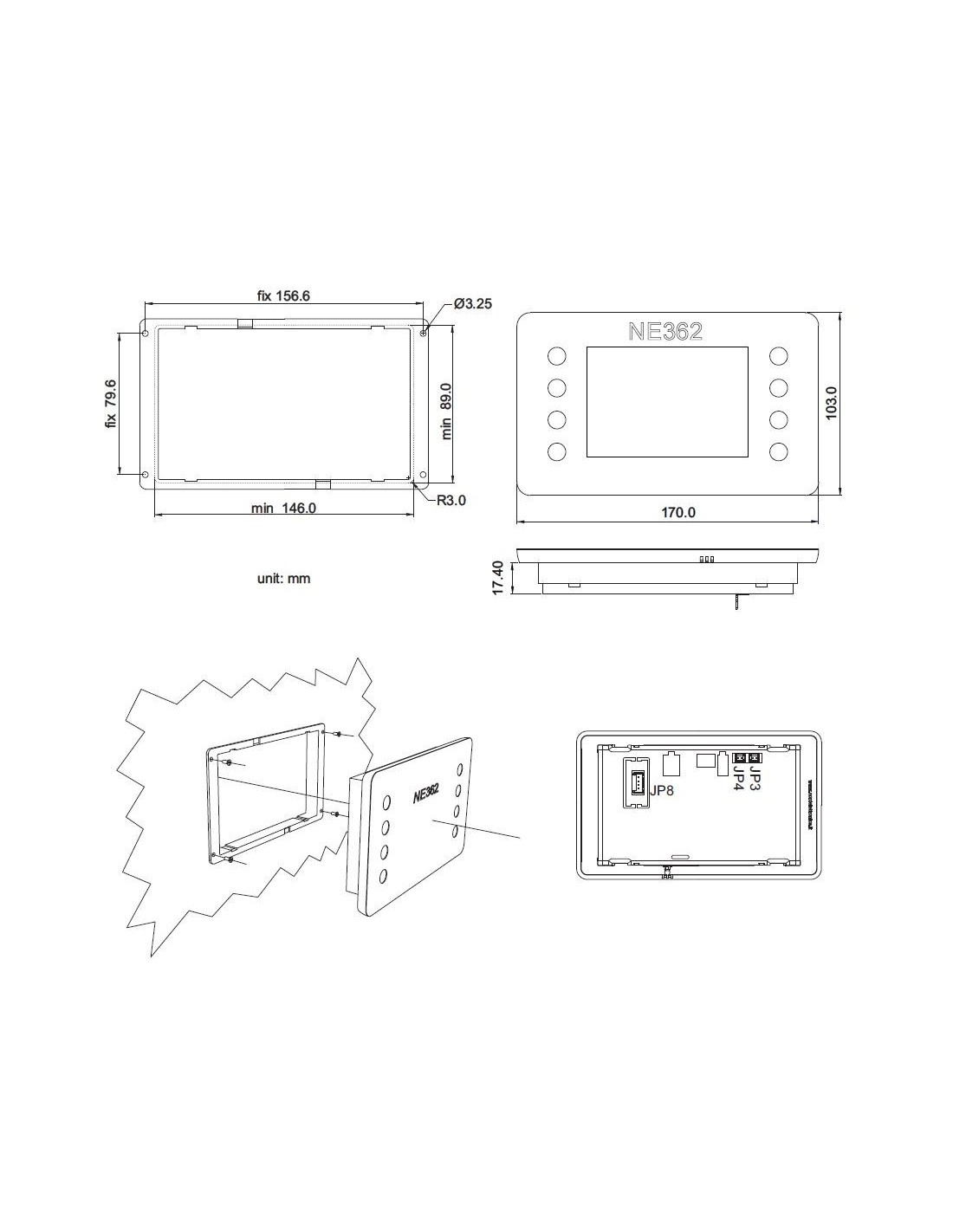

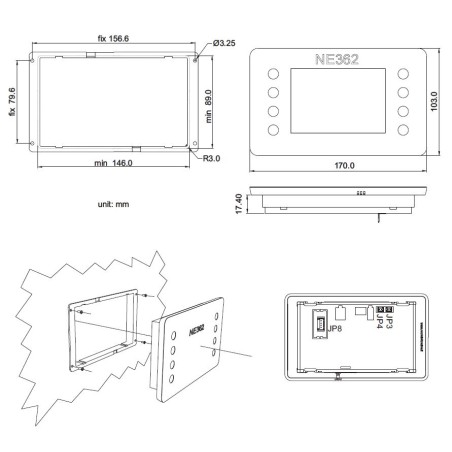

Dimensions 168 x 102 mm
Equivalent to the 1463.319.02- 01 NE319-F control panel which has the same functions and connections but is larger in size 195 x 129 mm

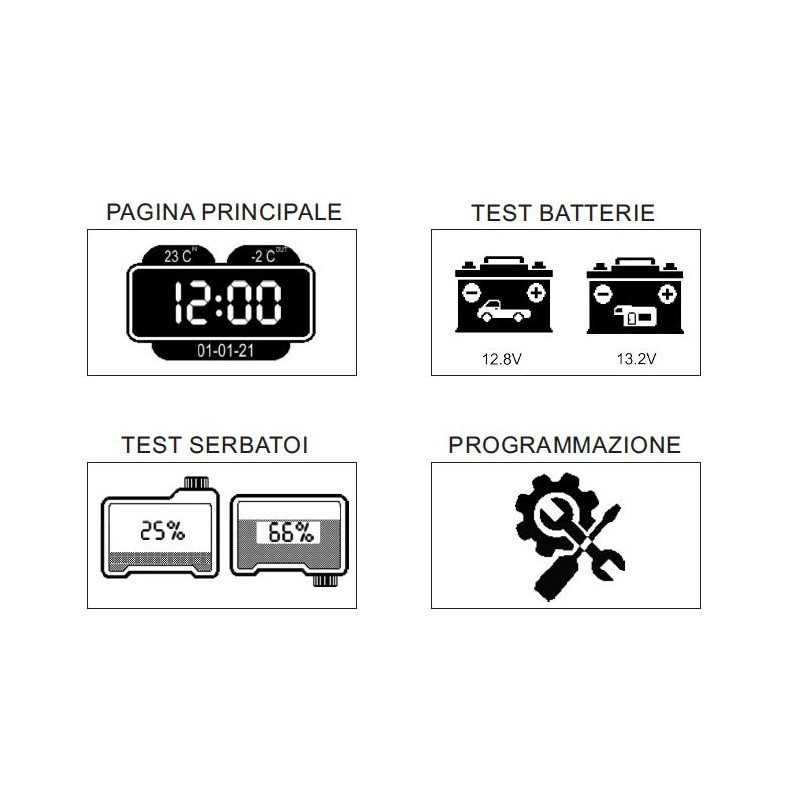

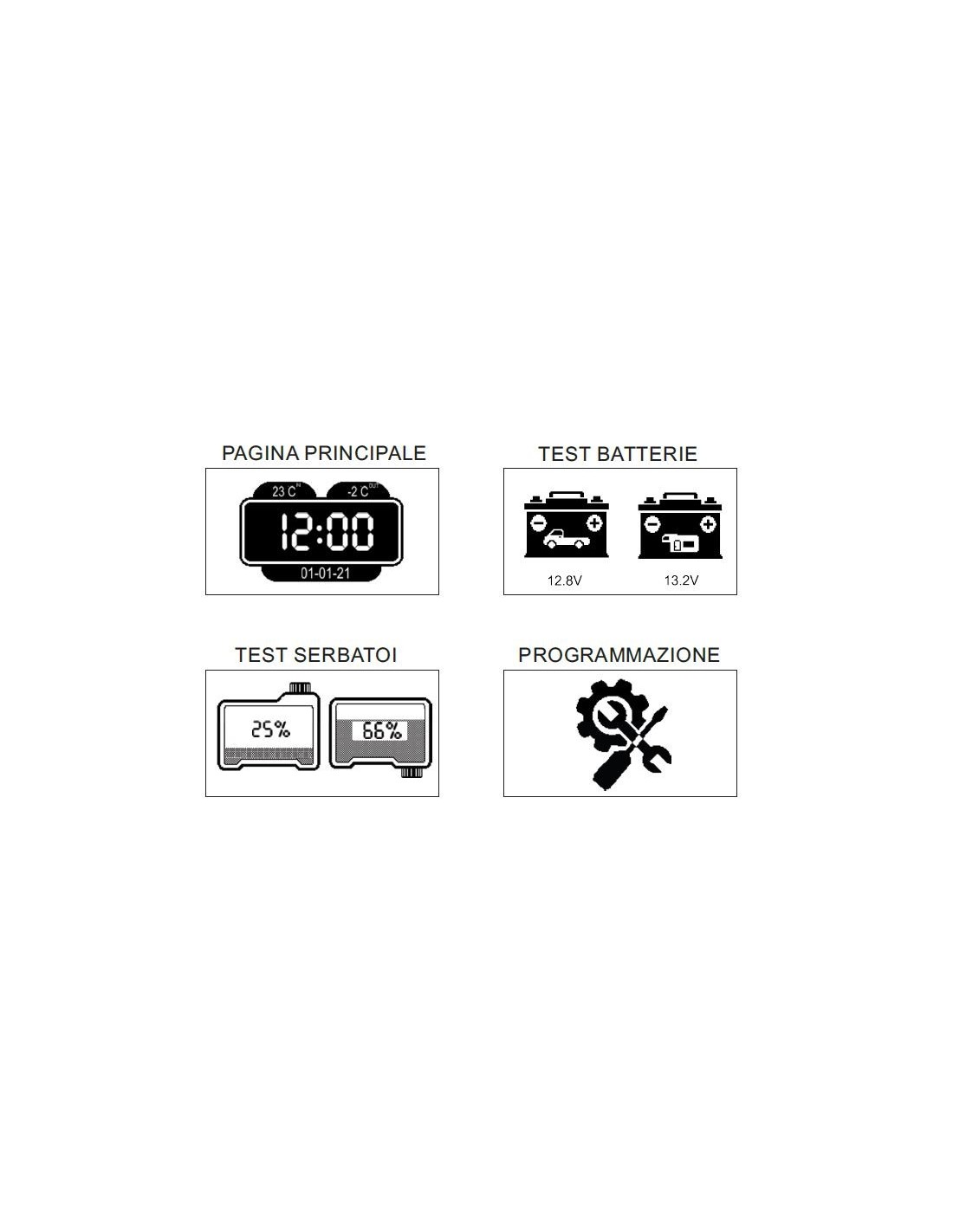

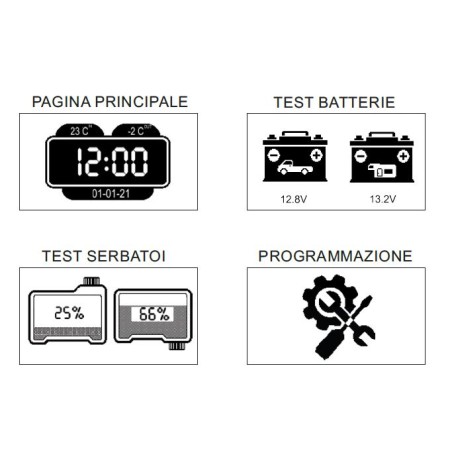

Always on display:
- date/time
- internal temperature.
- outside temperature if the outside temperature sensor is connected
- By pressing the UP and DOWN keys you have the tank test, battery test, programming
CONTROLS:
- Button to turn INTERIOR LIGHT on or off
- PUMP ON/OFF button
- Button to turn EXTERNAL LIGHTS on or off
- AUX on/off button
CONNECTIONS:
On the back of the panel there is the connector for connecting the serial cable (JP8), the connector for the optional external temperature sensor (JP3) and the connector for the remote internal temperature sensor (JP4).
By inserting the remote internal temperature sensor, the panel will automatically exclude the internal sensor of the panel.
The outside temperature is displayed only if the sensor is connected to the JP3 connector.
BATTERY MEMORY:
On the back of the panel (removing the cover) there is a buffer battery (LITHIUM 3V CR2032) to maintain the time in the event of a panel power failure.
NOTE: To adjust the display contrast, remove the rear cover of the panel and rotate the trimmer located on the vertical wall of the panel.
See further details in the manual under "attached documents".
